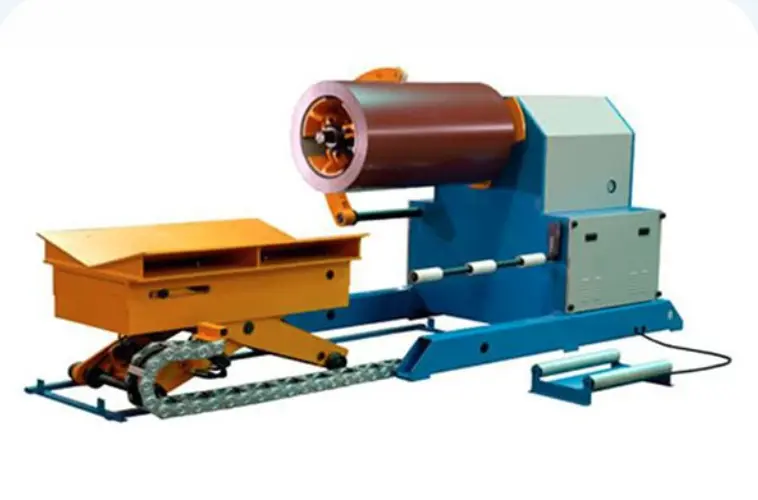

Uncoiler in Shaoxing City, China

Uncoiler JK
Our uncoiler is suitable for the uncoiling and conveying of thin metal sheets. It primarily consists of the main machine, tension device, arm hold down device, ultrasonic control device, electric control system and independent hydraulic system. Our stacker is innovative in design, and has received 2 patents of utility model. Automatic material loading and hydraulic tensioning are available.
Technical Specifications for Uncoiler
Item
Parameter
Remark

Uncoiling motor power
2.2 kW

Hydraulic station power
3 kW

Uncoiling speed
Less than 50 m/min

Suitable coil inside diameter
φ508/φ610 mm

Suitable coil width
1000~1250 mm

Suitable coil outside diameter
Less than φ1300 mm
In case of any contradictory, performance parameter is put in the first place.

Rated load capacity
Less than 6 t

Outline dimensions (LXWXH)
2600×1400×1700 mm
