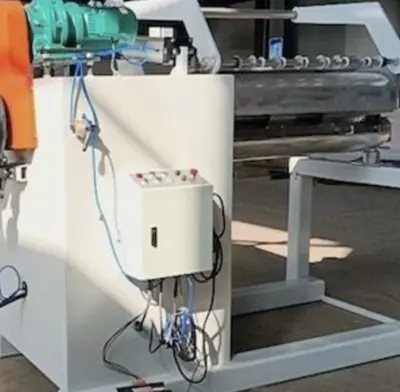

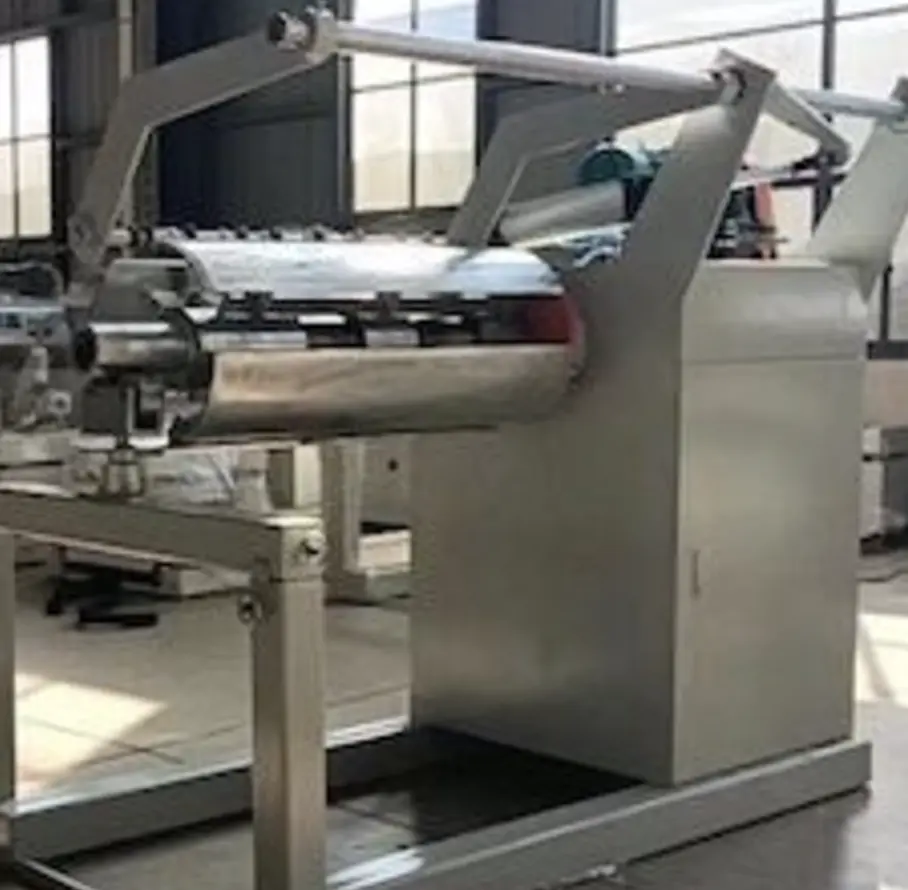

A recoiler machine is an essential component in metalworking processes, primarily used to rewind metal strips into coils after they have undergone processing. These machines are vital in applications like roll forming, slitting, and cutting lines, ensuring efficient handling and storage of metal coils for transport or further processing. Recoiler machines are designed to handle various materials, including steel, aluminum, and other metals, and can accommodate a wide range of widths, thicknesses, and coil weights.
Key Features of a Recoiler Machine
Durability: Built to withstand high-stress environments with robust construction.
Precision: Equipped with tension control and alignment systems for consistent coil quality.
Customizability: Configurable to handle different materials, widths, and coil weights.
Automation: Many modern recoilers include PLC systems for automated operation.
Benefits of a Recoiler Machine
Reduces manual labor and increases efficiency.
Ensures uniform coil rewinding for easy transportation and storage.
Customizable for diverse metal processing needs.
Enhances precision, saving time and reducing material waste.
Question and Answer Section
Q1: What industries in Florida commonly use recoiler machines?
Recoiler machines are widely used in Florida's construction, aerospace, automotive, and manufacturing industries. These industries often require precision-coiled materials for further processing or shipping.
Q2: Can recoiler machines handle different materials?
Yes, recoiler machines are versatile and can process materials such as steel, aluminum, copper, and stainless steel. The machine specifications can be customized to suit the material properties.
Q3: What should I consider when choosing a recoiler machine for use in Florida?
Key considerations include:
The material type, width, and thickness.
The maximum coil weight capacity.
The machine's speed and tension control systems.
Compliance with local power supply standards (e.g., 240V/60Hz or 480V/60Hz).
Q4: What maintenance is required for a recoiler machine?
Regular maintenance includes:
Lubricating moving parts and bearings.
Inspecting and replacing worn-out components.
Checking and calibrating the tension and control systems.
Ensuring proper alignment and functionality of safety features.
Q5: How does a recoiler machine improve production efficiency?
By automating the rewinding process, recoiler machines minimize downtime, reduce material handling errors, and ensure consistent coil quality, which leads to enhanced overall production efficiency.
Q6: Are there specific safety regulations for using recoiler machines in Florida?
Florida follows OSHA (Occupational Safety and Health Administration) regulations for machinery use, including:
Proper guard installations.
Emergency stop buttons.
Regular safety checks to prevent accidents.
Material Width: 300 mm to 2000 mm
Material Thickness: 0.3 mm to 10 mm
Coil Weight Capacity: Up to 30,000 kg
Rewinding Speed: 20 m/min to 100 m/min
Drive System: Servo or hydraulic motor-driven
Tension Control: Pneumatic or hydraulic tension control for precision rewinding
Expandable Mandrel: Mandrels range from 508 mm (20 inches) to 610 mm (24 inches), adjustable to accommodate coil sizes.
Safety Features: Guard enclosures, emergency stop systems, and overload protection
Control System: PLC-based touchscreen interface for easy operation and adjustments
Power Requirements: 380V/50Hz or customized as per local requirements in Florida
