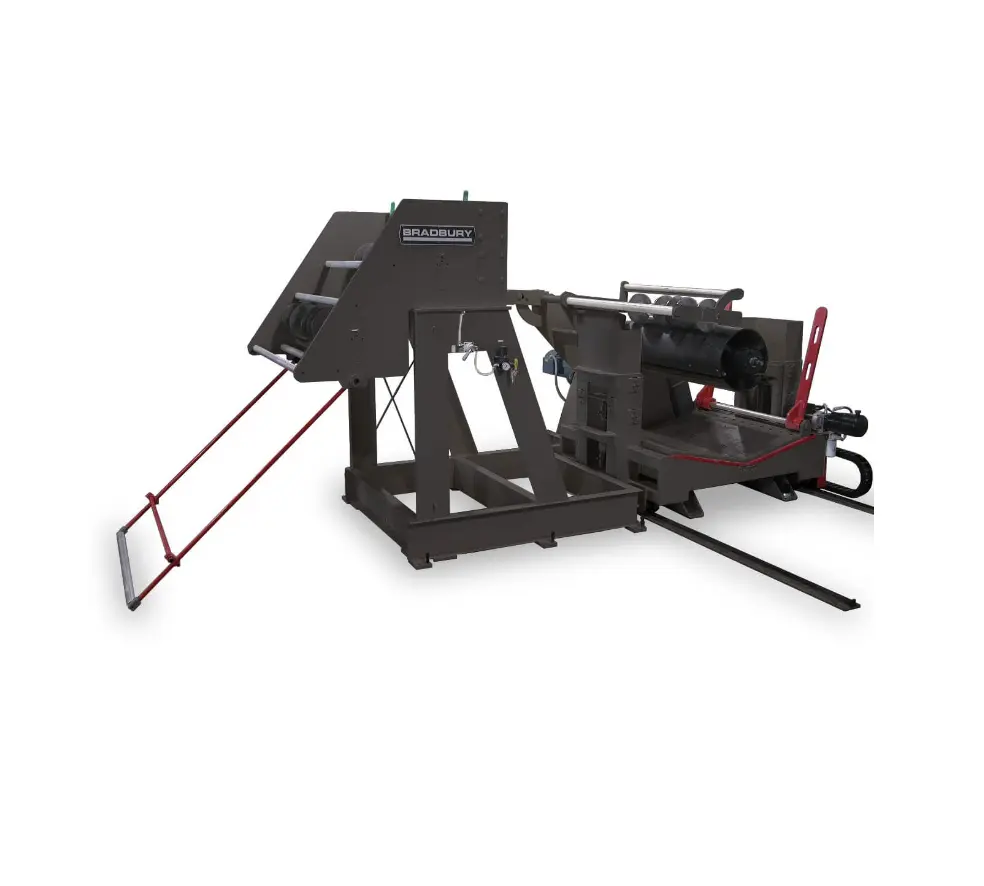

Tension Stand and Recoiler in Kansas, USA

A Tension Stand and Recoiler Machine is an essential piece of equipment in the metal processing and roll forming industries. It is designed to handle coiled metal sheets or strips, ensuring precise recoiling while maintaining proper tension throughout the process. The tension stand applies controlled force to the material, enabling smooth unwinding and rewinding operations, while the recoiler ensures the metal is recoiled into a compact, uniform coil.
These machines are indispensable for industries such as automotive, construction, appliance manufacturing, and metal fabrication, where consistent and precise coiled material handling is critical.
Key Features and Benefits
High Precision: Ensures even tension across the width of the metal strip to avoid warping or uneven recoiling.

Versatility: Handles a wide range of materials including steel, aluminum, copper, and stainless steel.

Robust Design: Built with heavy-duty components for durability and high performance.

Customizable: Can be tailored to suit different material widths, thicknesses, and coil weights.

Efficient Operation: Speeds up the process of rewinding and recoiling while maintaining high-quality output.
Setup and Installation
Foundation Preparation: Ensure the area has a level and sturdy foundation.

Alignment: Properly align the tension stand and recoiler to the production line.

Electrical Connection: Connect to the specified power supply with proper grounding.

Trial Run: Conduct a trial run with a sample coil to check for tension consistency and recoiling precision.
Maintenance Requirements
Daily Checks: Inspect the machine for wear and tear, and ensure all fasteners are secure.

Lubrication: Regularly lubricate moving parts, including the mandrel and bearings.

Control System: Test the PLC and sensors periodically for accuracy.

Replacement of Worn Parts: Replace worn-out components like hydraulic seals or pneumatic cylinders promptly.
Question and Answer Section
Q1. What industries benefit most from a Tension Stand and Recoiler Machine in the USA?
A1. Industries such as automotive, construction, HVAC, metal roofing, and appliance manufacturing benefit the most, as these require precise handling of coiled materials.
Q2. Can this machine handle both ferrous and non-ferrous materials?
A2. Yes, the machine is designed to handle a wide variety of materials, including ferrous (steel, stainless steel) and non-ferrous (aluminum, copper) metals.
Q3. How can I determine the right machine specifications for my needs?
A3. Consider factors like the material type, width, thickness, and coil weight you will be processing. Consulting with the manufacturer can help tailor the machine to your requirements.
Q4. What safety features are included in the machine?
A4. The machine includes emergency stop buttons, overload protection, safety guards, and alarms to ensure operator safety during operation.
Q5. How does the tension control system work?
A5. The tension control system uses hydraulic or pneumatic force to apply consistent tension to the metal strip, ensuring smooth unwinding and recoiling.
Q6. Is the machine compatible with automation systems?
A6. Yes, most tension stand and recoiler machines come with a PLC system that can integrate with automated production lines for seamless operation.
Q7. What are the common maintenance issues to watch for?
A7. Common issues include wear on the hydraulic seals, tension inconsistencies due to misalignment, and electrical faults in the PLC system. Regular maintenance can mitigate these problems.
Q8. How long does it take to install the machine?
A8. Installation typically takes 1-2 weeks, including setup, alignment, and testing, depending on the complexity of the production line.

Material Type: Steel, Aluminum, Copper, Stainless Steel
Coil Width: 300mm - 2000mm (customizable)
Coil Thickness: 0.3mm - 6.0mm
Recoiler Capacity: Up to 25 tons
Line Speed: 20m/min to 60m/min (adjustable)
Tension Control: Hydraulic or Pneumatic
Recoiler Mandrel: Expandable, with hydraulic actuation
Power Supply: 220V/380V/480V, 3-Phase, 50Hz/60Hz
Control System: PLC with HMI for precision and user-friendly interface
Motor Type: Servo motor or AC motor
Safety Features: Emergency stop, overload protection, safety guards
Machine Frame: Heavy-duty steel
