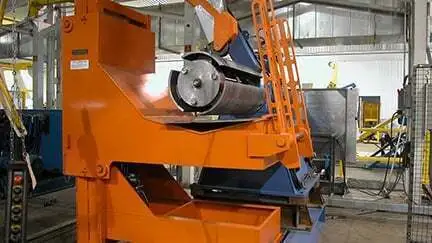

10,000 LBS Coil Car in Moundridge, Kansas, USA

The 10,000 LBS Coil Car is a robust material handling solution designed to safely and efficiently transport heavy metal coils to and from roll forming machines, decoilers, or other production equipment. It plays a crucial role in enhancing productivity and minimizing manual labor, particularly in roll forming and steel processing facilities. Engineered for heavy-duty performance, the coil car features a hydraulic lifting system and a motorized drive, ensuring smooth coil positioning and precise alignment for production operations.
This coil car is compatible with various coil materials, including galvanized steel, aluminum, stainless steel, and pre-painted steel. It is built to handle demanding industrial environments, ensuring durability and reliability. The user-friendly controls and safety mechanisms make it a dependable choice for operators in roll forming, stamping, and metal fabrication industries.
Benefits
Efficiency: Reduces coil loading and unloading time, improving production line throughput.

Safety: Eliminates the need for manual lifting and ensures precise coil positioning.

Durability: Heavy-duty construction ensures long-lasting performance even in demanding environments.

Flexibility: Adjustable for various coil sizes and materials, making it suitable for diverse industries.
Setup and Installation
Site Preparation: Ensure a flat and stable surface with adequate space for operation.

Positioning: Place the coil car near the decoiler or roll forming machine for seamless integration.

Electrical Connections: Connect the power supply as per the specified voltage and phase.

Testing: Perform a test run to ensure proper functionality and alignment.

Training: Train operators on safety and usage procedures.
Maintenance
Regular Inspections:
Check hydraulic systems for leaks or wear.
Inspect the motor, wiring, and control systems.

Lubrication:Lubricate moving parts as per the manufacturer's recommendations.

Safety Checks:Ensure all safety features are functional, including emergency stops and overload protection.

Cleaning:Remove debris and ensure the coil car is free of dust and dirt to maintain efficiency.
Frequently Asked Questions (FAQs)
Q1: What materials can the 10,000 LBS Coil Car handle?
A1: The coil car can handle a variety of materials, including galvanized steel, stainless steel, aluminum, and pre-painted steel.
Q2: Can the coil car be customized for larger or smaller coils?
A2: Yes, the coil car can be customized to accommodate specific coil widths, diameters, and weights.
Q3: Is the 10,000 LBS Coil Car compatible with automated production lines?
A3: Absolutely. It can be integrated with automated systems using its PLC-controlled interface.
Q4: What safety features are included in the coil car?
A4: The coil car includes overload protection, an emergency stop button, safety guards, and enclosures to protect operators.
Q5: How long does it take to install the coil car?
A5: Installation typically takes 1-2 days, depending on site preparation and customization requirements.
Q6: Does the coil car require frequent maintenance?
A6: Routine maintenance, such as inspections, lubrication, and safety checks, is recommended but does not require significant downtime.
Q7: Can the coil car operate in harsh environments?
A7: Yes, the heavy-duty steel frame and anti-corrosion coating make it suitable for industrial and outdoor environments.
Q8: What is the expected lifespan of the coil car?
A8: With proper maintenance, the coil car can last over 10 years in industrial settings.
Q9: Does the coil car come with a warranty?
A9: Yes, most manufacturers offer a standard 1-year warranty, with options to extend coverage.
Q10: Can it be used for both loading and unloading coils?
A10: Yes, the hydraulic lifting system allows for easy loading and unloading operations.

Load Capacity:Up to 10,000 lbs (4,536 kg)
Up to 10,000 lbs (4,536 kg)
Coil Width:Standard: 12 inches to 60 inches (304 mm to 1,524 mm)Customizable for specific requirements
Standard: 12 inches to 60 inches (304 mm to 1,524 mm)
Customizable for specific requirements
Coil Diameter:Minimum: 20 inches (508 mm)Maximum: 72 inches (1,828 mm)
Minimum: 20 inches (508 mm)
Maximum: 72 inches (1,828 mm)
Table Dimensions:Length: 72 inches (1,828 mm)Width: Adjustable based on coil size
Length: 72 inches (1,828 mm)
Width: Adjustable based on coil size
Lifting Mechanism:Hydraulic lifting with a maximum stroke of 18 inches (457 mm)
Hydraulic lifting with a maximum stroke of 18 inches (457 mm)
Power Requirements:Voltage: 380V/460V, 3-phase, 50Hz/60Hz (customizable)Motor Power: 5 HP to 7.5 HP
Voltage: 380V/460V, 3-phase, 50Hz/60Hz (customizable)
Motor Power: 5 HP to 7.5 HP
Travel Speed:Adjustable: 0-20 ft/min (0-6 m/min)
Adjustable: 0-20 ft/min (0-6 m/min)
Control System:PLC-controlled system with a user-friendly interfaceManual and remote control options
PLC-controlled system with a user-friendly interface
Manual and remote control options
Safety Features:Overload protection systemEmergency stop buttonSafety guards and enclosures
Overload protection system
Emergency stop button
Safety guards and enclosures
Construction Material:Heavy-duty steel frame with anti-corrosion coating
Heavy-duty steel frame with anti-corrosion coating
Optional Features:Integrated scales for weight measurementRemote PLC system for automated operationsCustom coil cradles for specific profiles
Integrated scales for weight measurement
Remote PLC system for automated operations
Custom coil cradles for specific profiles
