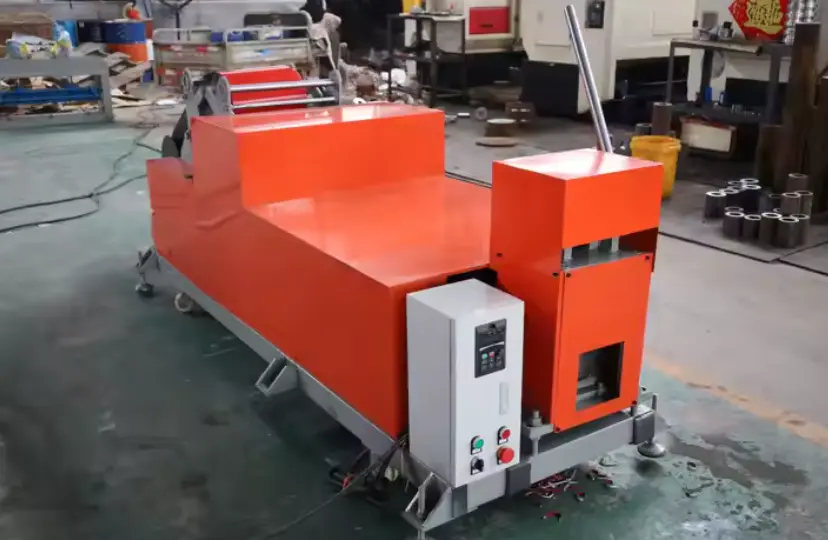

Portable Roll Forming Machine – United Arab Emirates
Product Description
The Portable Roll Forming Machine offered by Machine Matcher is a robust, high-precision forming solution specifically designed for flexible, on-site operation in the United Arab Emirates, including major cities like Abu Dhabi, Dubai, and Sharjah. Built for versatility and ease of transport, this machine is ideal for businesses seeking a space-saving, efficient roll forming solution without compromising output quality or structural durability.
Whether you're fabricating panels for roofing, cladding, or framing on-site, this portable model enables you to bring production directly to the job site, reducing logistical costs and turnaround time.
All machines are new and custom-built to meet customer-specific profiles and performance requirements. Machine Matcher ensures complete quality control, professional after-sales support, and global delivery.
Industries Served
The Portable Roll Forming Machine is used across a wide range of industries in the UAE, such as:
Construction (roofing sheets, cladding, structural framing)
Infrastructure (guardrails, enclosures, utility housing)
Oil & Gas (protective paneling, pipe coverings)
Logistics & Warehousing (racking systems, structural panels)
HVAC & Ventilation (ducting panels, support channels)
Example Use Cases:
In construction, the machine fabricates lightweight roofing panels directly at the site for immediate installation.
In oil and gas, protective profiles are produced for on-site enclosure and safety systems.
For HVAC, the machine produces consistent profiles for ductwork and support channels with precision and speed.
Machine Technical Specifications
Machine Type: Portable Roll Forming Machine
Production Speed: Up to 15 meters per minute (depending on profile and material)
Material Thickness Range: 0.3 mm – 1.2 mm
Material Width Range: 150 mm – 750 mm
Material Types: Galvanized steel, pre-painted steel, aluminum, stainless steel
Material Yield Strength: Up to 550 MPa
Roller Material: High-grade forged steel
Roller Surface Treatment: Hard chrome plating for corrosion and wear resistance
Number of Forming Stations: 8 to 16 (depending on profile design)
Roller Shaft Diameter: 50 mm – 70 mm
Shaft Material: Solid 45# steel, precision-machined and heat-treated
Main Drive Type: Chain or gearbox drive (depending on customer preference)
Power (UAE compatible): 380V / 50Hz / 3-Phase
Motor Power: 4 kW – 7.5 kW
Cutting Method: Hydraulic post-cutting
Blade Material: Cr12Mov (heat treated)
Control Type: PLC control with touch screen interface
Operating Mode: Automatic and manual
De-coiling System: Manual or automatic de-coiler (optional upgrade)
Punching/Notching System (if included): Hydraulic system with interchangeable dies
Machine Frame: Welded steel plate construction
Thickness of Frame Steel: 18 mm – 25 mm
Profile Shape: Customized to user specification
Q: Can the machine be customized for our profile?
A: Yes, we customize machines based on your drawings and requirements.
Profile Width and Depth: Customized as per profile
Length Tolerance: ±1 mm per 6 meters
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Remote Installation Support:
Yes, we offer remote video guidance. On-site installation is available on request.
Lead Time
Production Time: 30–60 days
Shipping Time: Varies by delivery location within UAE; exact timeline will be provided during order confirmation.
Material & Gauge Range
This machine typically works with:
Galvanized steel (G90 or similar)
Pre-painted coil stock
Aluminum alloy (0.5 mm – 1.0 mm)
Stainless steel (up to 1.0 mm)
Gauge Range: 26 to 18 gauge (0.5 mm to 1.2 mm)
Material Strength: Commonly used materials range from 300 – 550 ksi (yield strength)
Average Machine Price
Prices Start From: $32,000 USD
Note:
Final pricing depends on profile complexity, machine width, optional automation (e.g., punching, auto-stacker), and motor power upgrades.
Q: What affects the final price?
A: Machine configuration, profile customization, optional components, shipping, and installation requirements.
Customization Options
Profile dimensions and shape
Number of rollers and forming stations
Automatic stacker, punching, embossing, or notching units
Hydraulic vs. mechanical cutting
Upgraded PLC with multi-profile control
Compact skid-mounted versions for mobile operation
If you have profile drawings or any technical information, please send all details to [email protected] so we can provide the most accurate quotation and technical advice.
Unique Selling Points (USPs) & Advantages
True Portability: Compact footprint, easy transport between job sites across the UAE
On-Site Fabrication: Reduces logistics costs and project delays
Custom Engineered: Built to exact profile specs and local power standards
Durable Components: Hardened shafts and chromed rollers ensure long life and minimal maintenance
Safety & Automation: Advanced PLC controls, built-in safety systems, and optional full automation available
Energy Efficient: Optimal power-to-output ratio helps reduce operational costs
Global Support with Local Focus: Machine Matcher provides remote assistance, spare parts, and local support when needed
These features combine to deliver higher production efficiency, reduced downtime, and faster ROI, especially for contractors and manufacturers operating in fast-paced construction markets like the UAE.
Warranty & Support
All machines supplied by Machine Matcher are backed by a 1-year warranty from dispatch. This includes:
Full technical support
Spare parts availability
Maintenance and repair guidance
Remote video installation and training
Location & Delivery
This machine can be delivered anywhere in the UAE, including:
Abu Dhabi
Dubai
Sharjah
And other regions upon request
All machines are shipped directly from our trusted manufacturing partners and are supplied and supported by Machine Matcher only.
For technical assistance, quotations, or to share your profile drawings and requirements, email:
[email protected]
Let Machine Matcher help you build the perfect portable roll forming solution for your business in the UAE.
