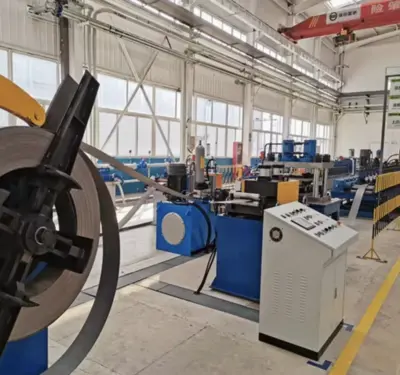

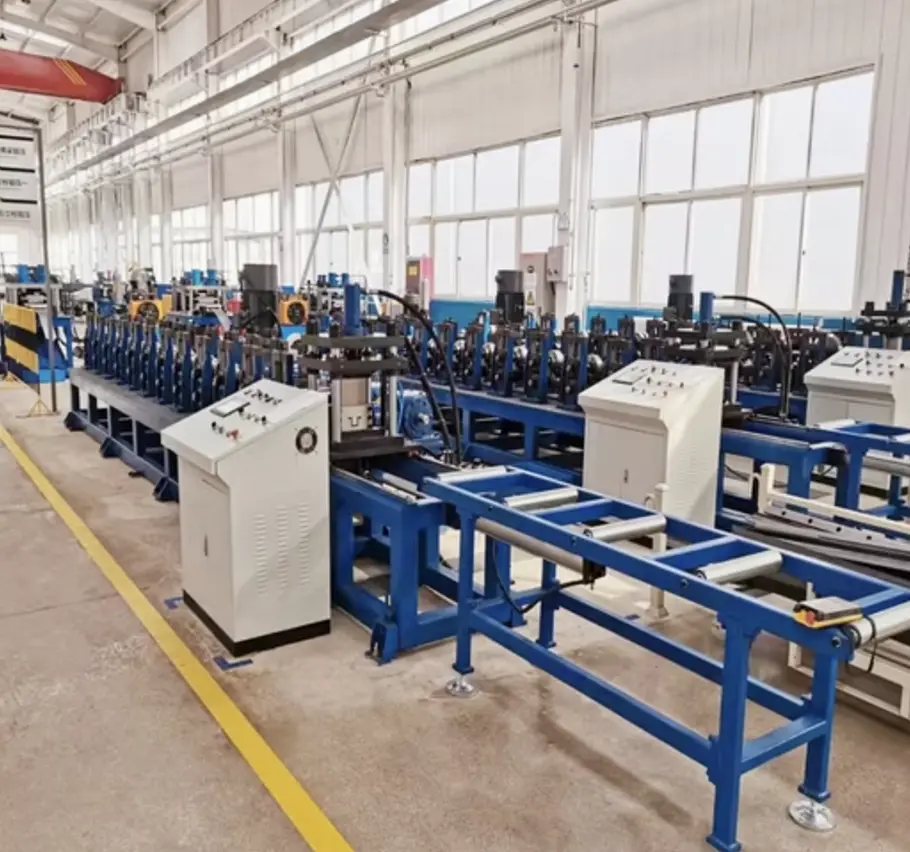

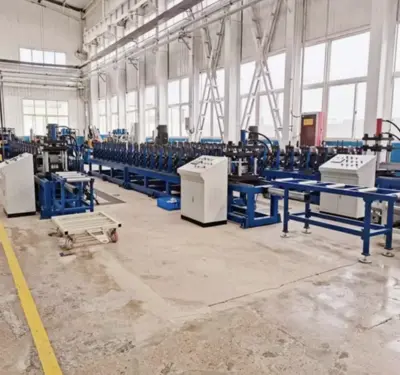

A trailer stringer roll forming machine is designed to produce trailer stringer profiles, which serve as the foundational support structures in trailer manufacturing. These machines are engineered for precision, speed, and durability, ensuring high-quality output for various trailer sizes and applications. The roll forming process involves feeding metal coils into the machine, which then forms the desired profile through a series of rollers.
Trailer stringer profiles are critical components in the transportation industry, providing the structural integrity needed for trailers to handle heavy loads and endure wear and tear. With growing demand in Canada for durable trailers, these machines play a pivotal role in meeting industry requirements.
Key Features and Benefits
Customizability: Tailored to meet specific trailer design requirements.
High Efficiency: Capable of continuous production with minimal downtime.
Durability: Designed for long-term use with heavy-duty components.
Cost Efficiency: Reduces waste and labor costs while improving output quality.
Question and Answer Section
1. What materials can this machine process?
The machine is compatible with galvanized steel, cold-rolled steel, stainless steel, and aluminum, with thicknesses ranging from 1.5mm to 4mm.
2. Can the machine handle Canadian power supply standards?
Yes, the machine is configurable to Canadian power requirements (220V/60Hz or 380V/50Hz).
3. What types of trailer stringer profiles can it produce?
The machine can produce a variety of stringer profiles, including U-shaped, C-shaped, and custom designs tailored to specific trailer models.
4. Is the machine suitable for high-volume production?
Absolutely. With a production speed of up to 20 meters per minute, it is ideal for both small-scale and large-scale manufacturers.
5. What maintenance is required for the machine?
Regular lubrication, inspection of rollers and cutting blades, and periodic software updates for the PLC system are recommended to ensure optimal performance.
6. How can I get replacement parts?
Manufacturers typically provide a spare parts package with the machine. Additional parts can be ordered from the supplier, often with quick delivery to Canada.
7. Is training provided for the operators?
Yes, most suppliers offer training on installation, operation, and maintenance. Remote training and support are also available.
8. How does shipping and installation work in Canada?
The machine is shipped in protective crates to prevent damage during transit. Installation services, including on-site assembly and calibration, are often included or available as an additional service.
Roller Materials
Material: High-grade GCr15 or D2 steel with heat treatment for extended life.Surface Finish: Hard-chrome plating to prevent wear and corrosion.
Material: High-grade GCr15 or D2 steel with heat treatment for extended life.
Surface Finish: Hard-chrome plating to prevent wear and corrosion.
Frame Size and Structure
Frame Material: Welded steel construction.Thickness: Heavy-duty to minimize vibration and ensure stability.
Frame Material: Welded steel construction.
Thickness: Heavy-duty to minimize vibration and ensure stability.
Motors and Power
Main Motor: 11 kW to 30 kW (customizable based on machine size).Hydraulic Motor: 5.5 kW for cutting and punching.Power Supply: 220V/60Hz or 380V/50Hz (adjustable for Canadian standards).
Main Motor: 11 kW to 30 kW (customizable based on machine size).
Hydraulic Motor: 5.5 kW for cutting and punching.
Power Supply: 220V/60Hz or 380V/50Hz (adjustable for Canadian standards).
Control System
PLC System: Siemens or Mitsubishi for automation and precision.User Interface: Touchscreen for easy operation and real-time adjustments.
PLC System: Siemens or Mitsubishi for automation and precision.
User Interface: Touchscreen for easy operation and real-time adjustments.
Profile Size
Width: 100mm to 400mm (customizable).Thickness: 1.5mm to 4mm steel.
Width: 100mm to 400mm (customizable).
Thickness: 1.5mm to 4mm steel.
Speed
Up to 20 meters per minute, ensuring high productivity.
Up to 20 meters per minute, ensuring high productivity.
Cutting System
Type: Hydraulic cutting with servo motor control for precise cuts.Blade Material: Cr12Mov steel, heat-treated for durability.
Type: Hydraulic cutting with servo motor control for precise cuts.
Blade Material: Cr12Mov steel, heat-treated for durability.
Punching and Notching
Integrated hydraulic punching stations for holes and notches.Configurable dies to accommodate custom requirements.
Integrated hydraulic punching stations for holes and notches.
Configurable dies to accommodate custom requirements.
Safety Features
Safety guards and enclosures.Emergency stop buttons and overload protection systems.
Safety guards and enclosures.
Emergency stop buttons and overload protection systems.
Optional Extras
Decoilers and Uncoilers: Manual or hydraulic options for coil handling.Stackers: Automatic stackers to organize finished profiles.Remote Monitoring: PLC systems with remote diagnostic capabilities.
Decoilers and Uncoilers: Manual or hydraulic options for coil handling.
Stackers: Automatic stackers to organize finished profiles.
Remote Monitoring: PLC systems with remote diagnostic capabilities.
