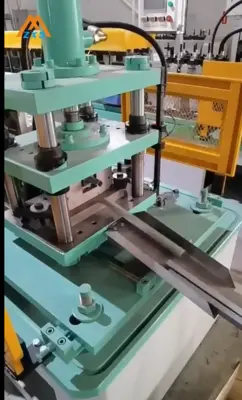

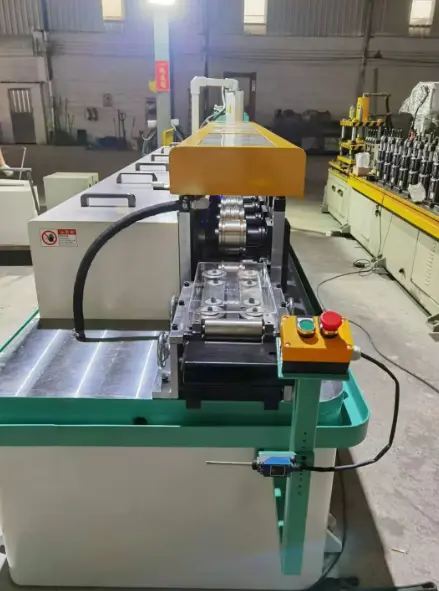

Ball Bearing Roll Forming Machine Drawer Telescopic Channel in Guangdong, China
Overview
Description
Independent archway model
Taiwan Basis System
Frame
14mm steel plate welding structure, 40mm panel, overall structure.
Roller seat
The main side plate is an integral structure, with a thickness of 40mm and material of A3 plate.
Spindle
40Cr round steel, diameter of Φ 52mm, high frequency surface treatment HRC55 ~ 57 °
Main bearings
One set of 6208 tapered bearing (Harbin Bearing No.1 Factory).
Main engine power
"simple drive 180st-m27020hb" servo motor.
Speed regulation mode
Frequency converter is used for speed regulation.
Electrical part
The electrical part adopts full numerical control operation, equipped with 7 × 10 touch screen (Taiwan weiluntong brand), and servo motor controls the product length.
Cost
1 - 1 setsUS$168,000.00>= 2 setsUS$140,000.00
Forming speed
10-15 M / min
