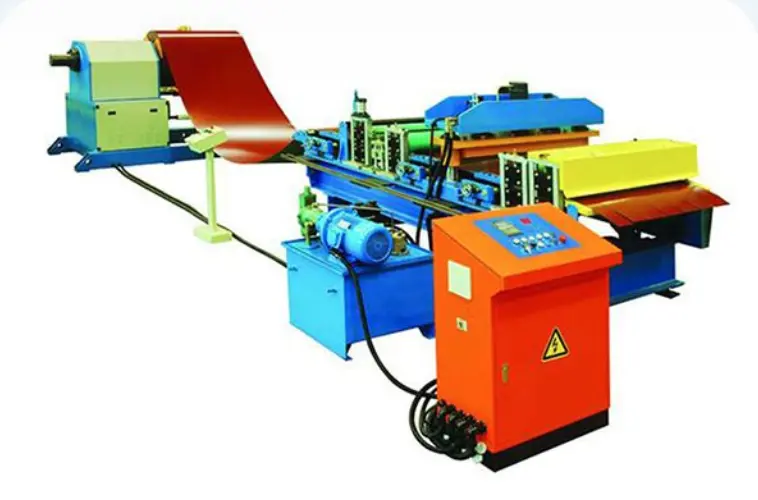

Filming and Cutting Machine in Shaoxing City, China

Filming and Cutting Machine HFD
Filming and cutting machine is the auxiliary equipment designed for material preparation procedures. It comprises of the uncoiling unit, filming system, shearing device, cutting equipment, material supporter, electric control system and hydraulic system. Due to its high level of automation and low labor intensity, this equipment is welcomed by both domestic and overseas customers.
As a filming and cutting machine manufacturer and supplier with over 40 years of experience, we at Jinggong Intelligent Building Equipment provide a wide variety of quality construction materials machinery, such as roll forming machine, steel tile forming machine, and guardrail forming machine etc. Our products have earned the ISO9000 and CE certificates, and are well received in America, Australia, Bulgaria, Argentina, Egypt, India, and more. Contact us today for more information!
Item
Parameter
Remark

Suitable material
Type
Color plate, aluminum plate , galvanized plate

Plate strength
≤550 MPa

Plate width
≤1250 mm

Plate thickness
0.3-1.0 mm

Cutter material
Cr12, with heat treatment

Slitting width
75(min) mm

Driving mode
Chain drive

Total power
About 7 Kw

Outline dimensions (LXWXH)
5X2X1.7 m
