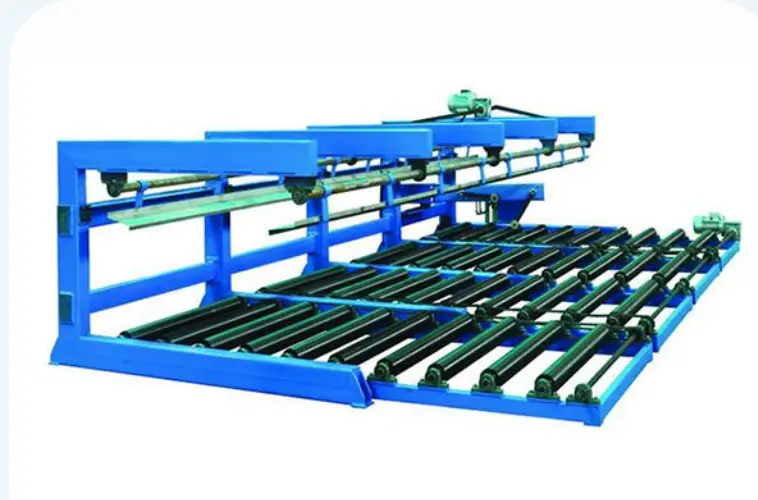

Our stacker is the auxiliary equipment for the steel deck forming machine, glazed tile forming machine, and steel tile forming machine. It has a reasonable structure and easy operation for the reduction of labor intensity.
Technical Specifications for Stacker
Item
Parameter
Remark
Suitable material
Type
All kinds of profiled steel sheet
Weight
≤200 Kg/sheet
Length
≤12000 Mm
Width
1200(max.) mm
Stacking height
≤200 mm
Driving mode
Motor or cylinder
Total power
About 1.5 Kw
Outline dimensions (LXWXH)
5800X2000X1700 or 11800X2000X1700 mm
