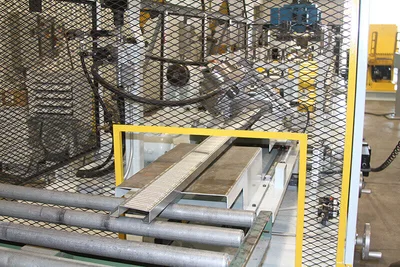

Grain Bin Floor Roll Forming Machine in Kansas, USA

A Grain Bin Floor Roll Forming Machine is a specialized piece of equipment designed to produce corrugated panels used in grain bins or silos. These panels are crucial for grain storage facilities, providing a durable, ventilated floor to ensure proper aeration and prevent spoilage of stored grains.
Machine Description
The Grain Bin Floor Roll Forming Machine is engineered to fabricate high-strength, precise corrugated floor panels. These panels are typically perforated or have airflow gaps for effective grain aeration. The machine operates with advanced automation, ensuring consistency and accuracy in production. It is suitable for manufacturing panels from galvanized steel or other corrosion-resistant materials.
This roll forming system includes several stages: feeding, roll forming, punching (optional), cutting, and stacking. The machine is equipped with user-friendly controls, ensuring efficient operation even for less experienced operators.
Key Features
Durability: Robust construction to handle heavy-duty materials.

Precision: Ensures uniform panel dimensions and perforations.

Flexibility: Customizable designs for different grain bin floor specifications.

Automation: PLC-controlled system simplifies operations and reduces human errors.

Safety: Built-in safety features to protect operators.
Applications
Grain storage facilities (bins and silos)
Industrial warehouses
Agricultural storage solutions
Ventilated flooring in large storage units
Maintenance Requirements
Daily Checks:
Inspect rollers and shafts for alignment.
Ensure the cutting blades are sharp and properly aligned.

Weekly Maintenance:
Lubricate moving parts like shafts and chains.
Check the hydraulic system for leaks.

Monthly Inspection:
Inspect the PLC system for errors.
Verify the accuracy of the perforation and cutting systems.

Annual Servicing:
Replace worn-out rollers and blades.
Conduct a thorough calibration of the entire machine.
Question and Answer Section
1. What materials can the Grain Bin Floor Roll Forming Machine process?
The machine can process galvanized steel, stainless steel, and aluminum, with thicknesses ranging from 0.5 mm to 1.5 mm.
2. Is it possible to customize the perforation patterns?
Yes, the hydraulic punching system allows for customizable perforation patterns, controlled through the PLC system.
3. What is the production speed of the machine?
The standard production speed is 15–25 m/min, with high-speed options available up to 40 m/min.
4. How is the machine controlled?
The machine is controlled via a PLC system with a touchscreen interface, providing easy operation and real-time monitoring.
5. Can the machine operate on different power supplies?
Yes, the power system can be customized to meet regional requirements, such as 380V/50Hz or other standards.
6. What safety features does the machine have?
The machine includes safety guards, emergency stop buttons, and optional enclosures to ensure operator safety.
7. How long does it take to set up the machine?
Initial setup and calibration typically take 2–3 days, depending on the configuration and site conditions.

Material Specifications:Material: Galvanized Steel, Stainless Steel, AluminumThickness: 0.5–1.5 mmWidth: 600–1250 mm (customizable)
Material: Galvanized Steel, Stainless Steel, Aluminum
Thickness: 0.5–1.5 mm
Width: 600–1250 mm (customizable)

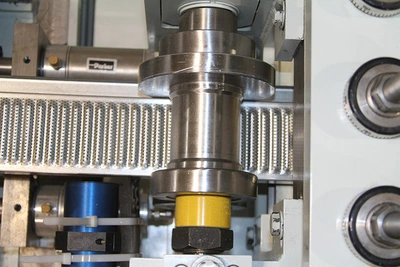

Roller System:Number of Stations: 18–24 stationsRoller Material: High-grade GCr15 steel, hardened and chrome-platedShaft Diameter: 70–90 mm
Number of Stations: 18–24 stations
Roller Material: High-grade GCr15 steel, hardened and chrome-plated
Shaft Diameter: 70–90 mm

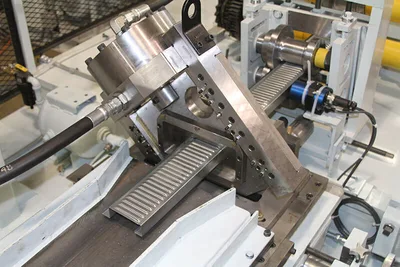

Punching and Perforation (Optional):Hydraulic punching systemAdjustable perforation patternsCNC control for precise positioning
Hydraulic punching system
Adjustable perforation patterns
CNC control for precise positioning

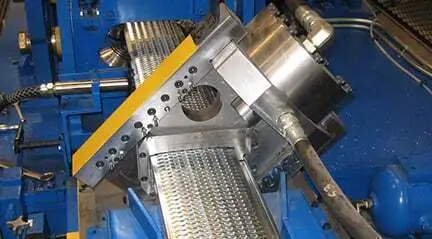

Cutting System:Type: Hydraulic cutting with hardened bladesAccuracy: ±0.5 mmPower: 5.5 kW hydraulic system
Type: Hydraulic cutting with hardened blades
Accuracy: ±0.5 mm
Power: 5.5 kW hydraulic system
Control System:PLC Control: Panasonic/Siemens/DeltaTouchscreen interface with real-time production monitoringRemote control capabilities
PLC Control: Panasonic/Siemens/Delta
Touchscreen interface with real-time production monitoring
Remote control capabilities
Machine Speed:Standard: 15–25 m/minHigh-speed option: 40 m/min
Standard: 15–25 m/min
High-speed option: 40 m/min
Frame and Structure:Machine Frame: Heavy-duty steel welded structureCoating: Anti-rust paint and powder coatingDimensions: Approx. 10,000 mm x 1,500 mm x 1,500 mm (varies based on configuration)
Machine Frame: Heavy-duty steel welded structure
Coating: Anti-rust paint and powder coating
Dimensions: Approx. 10,000 mm x 1,500 mm x 1,500 mm (varies based on configuration)
Power Requirements:Main Motor Power: 11–15 kWVoltage: Customized to regional standards (380V, 50Hz as default)
Main Motor Power: 11–15 kW
Voltage: Customized to regional standards (380V, 50Hz as default)
Additional Features:Automatic stacker for efficient panel collectionSafety enclosures and guardsCoil handling systems, including uncoilers and straighteners
Automatic stacker for efficient panel collection
Safety enclosures and guards
Coil handling systems, including uncoilers and straighteners
