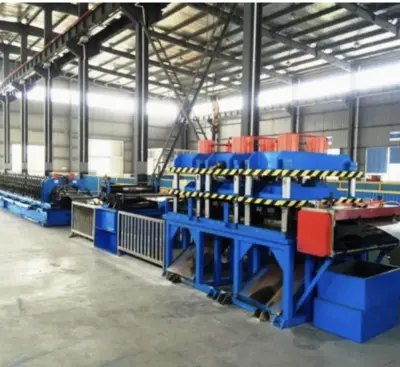

Cable Tray Roll Forming Machine: Specifications & Description

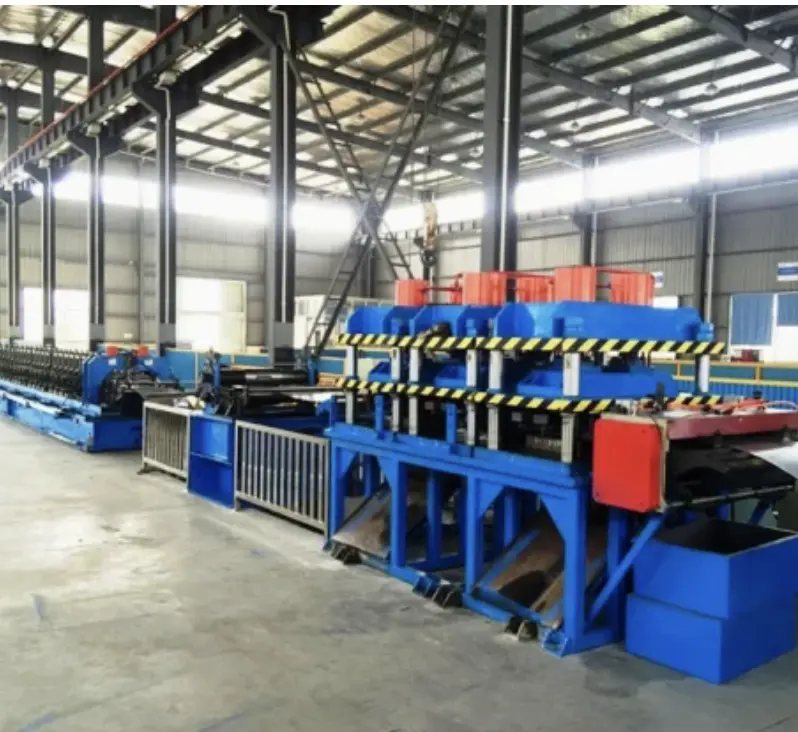

A Cable Tray Roll Forming Machine is a specialized piece of equipment designed to manufacture cable trays, which are essential in electrical installations for housing and supporting cables. This machine automates the production of cable trays in various sizes and profiles, using a continuous roll-forming process. Here's an overview of its specifications and functionality:
1. Machine Description:
The Cable Tray Roll Forming Machine typically includes:
Decoiler: Holds and feeds metal coils into the roll forming machine.

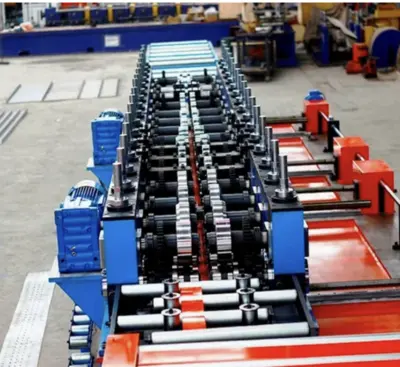

Roll Forming System: Consists of a series of rollers that progressively shape the metal strip into the desired cable tray profile.

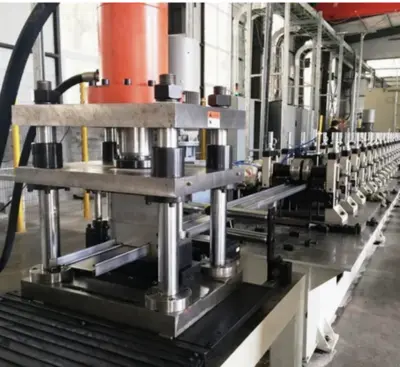

Punching System: For creating holes or slots in the cable tray, allowing for ventilation and cable attachment.
Cutting Mechanism: Cuts the cable tray to the required length.
Control System: Typically a PLC (Programmable Logic Controller) for precise control and adjustment of operations.
2. Key Specifications:
Parameter
Specification
Material Thickness
0.8mm - 2.0mm (customizable)
Material Width
Varies depending on cable tray width (100mm - 600mm)
Material Type
Mild steel, galvanized steel, aluminum, stainless steel
Forming Speed
10 - 15 meters per minute (adjustable)
Decoiler Capacity
5 - 7 tons (optional upgrades available)
Punching System
Hydraulic or mechanical, with die sets for customization
Cutting System
Hydraulic or mechanical, with length adjustment
Control System
PLC with touchscreen interface
Power Requirement
380V, 50Hz (or customized based on region)
Machine Dimensions
Approx. 11m x 1.5m x 1.5m (varies by design)
Machine Weight
Around 10 tons (depends on configuration)
3. Features:
Automatic Operation: Controlled via PLC for easy setup and operation.
Adjustable Sizes: Capable of producing various cable tray widths and depths.
Customizable Punching Dies: Enables different hole patterns and sizes.
Durable Construction: Made from high-strength materials for longevity.
Quick Changeover: Allows for faster setup adjustments to switch between different tray sizes.
4. Applications:
Electrical installations in buildings, industrial facilities, and data centers.
Infrastructure projects requiring extensive cabling systems.
The Cable Tray Roll Forming Machine is highly adaptable and essential for manufacturers supplying to electrical and construction industries, meeting demand for various tray sizes and configurations.
