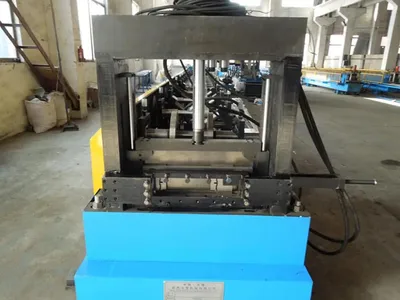

Galvanized Steel Cable Tray Roll Forming Machine in China

Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Type:Steel Frame & Purlin Machine
Control System:PLC
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box

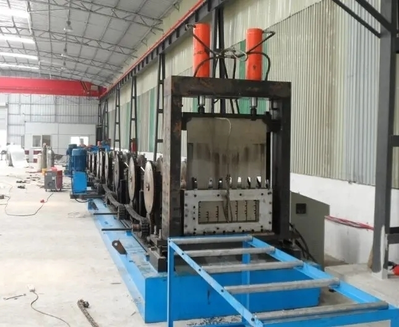

The overall production line is the production equipment combined with technologies such as leveling,punching(screw/holes),cutting, automatic transport(automatic discharging- optional) and forming.
The overall production line consists of the feeding system,leveling system,punching/cutting system,automatic conveyor system, forming system and electronic control system.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Matching material
Galvanized or PPGI, Aluminum coils

Material thickness range
0.8mm-2.0mm

Forming speed
20-30m/min(excluding punching and cutting time)

Hydraulic station power
22KW

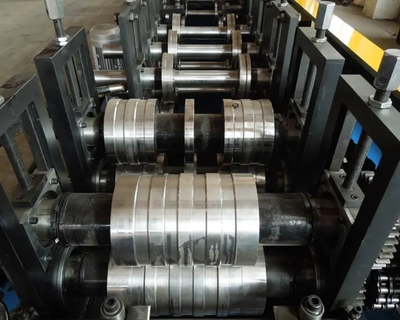

Rollers
20(according to drawings and size)

Shaft material and diameter
80mm, material is 40Cr

Material of the body
400H steel

Wall panel
20mm, Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Material of rollers
45# steel with chromed or Cr12(you can choose the material as your request)

Material of blade
Cr12 mould steel with quenched treatment 58-62℃

Total weight
About 5 tons
