Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Type:Steel Frame & Purlin Machine
Control System:PLC
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box

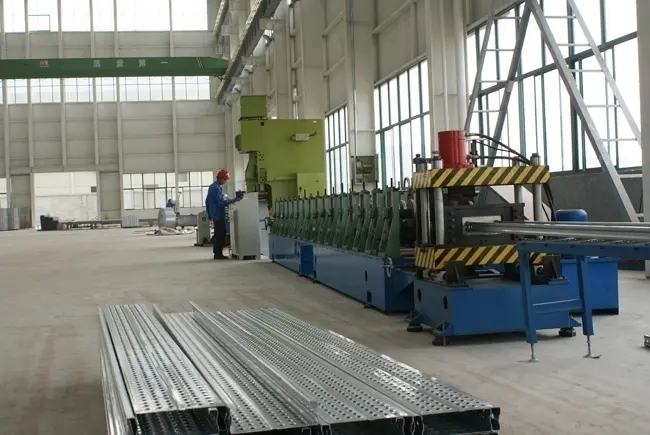

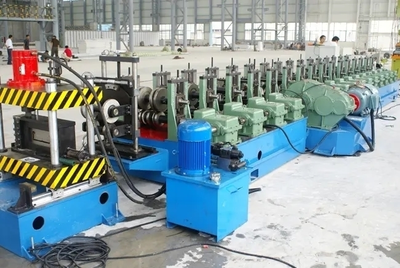

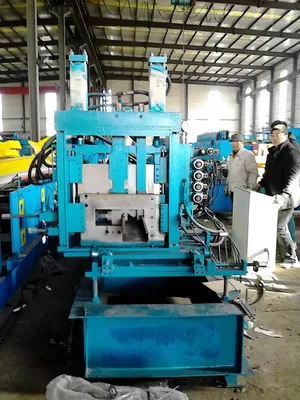

Cable Tray Roll Forming Machine, is a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways. Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Matching material
Galvanized or PPGI, Aluminum coils
Material thickness range
0.8mm-2.0mm
Forming speed
20-30m/min(excluding punching and cutting time)
Hydraulic station power
22KW
Rollers
20(according to drawings and size)
Shaft material and diameter
80mm, material is 40Cr
Material of the body
400H steel
Wall panel
20mm, Q195 steel(all with electrostatic spraying)
Controlling system
PLC
Material of rollers
45# steel with chromed or Cr12(you can choose the material as your request)
Material of blade
Cr12 mould steel with quenched treatment 58-62℃
Total weight
About 5 tons
