C Purlin Cable Tray Roll Forming Machine in China

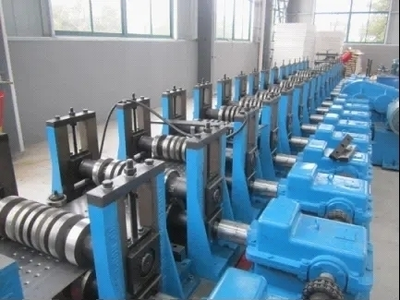

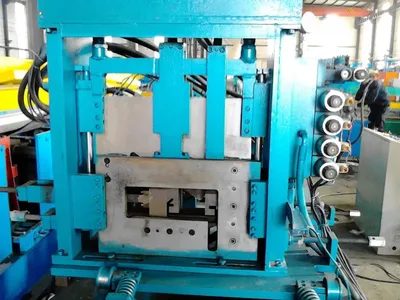

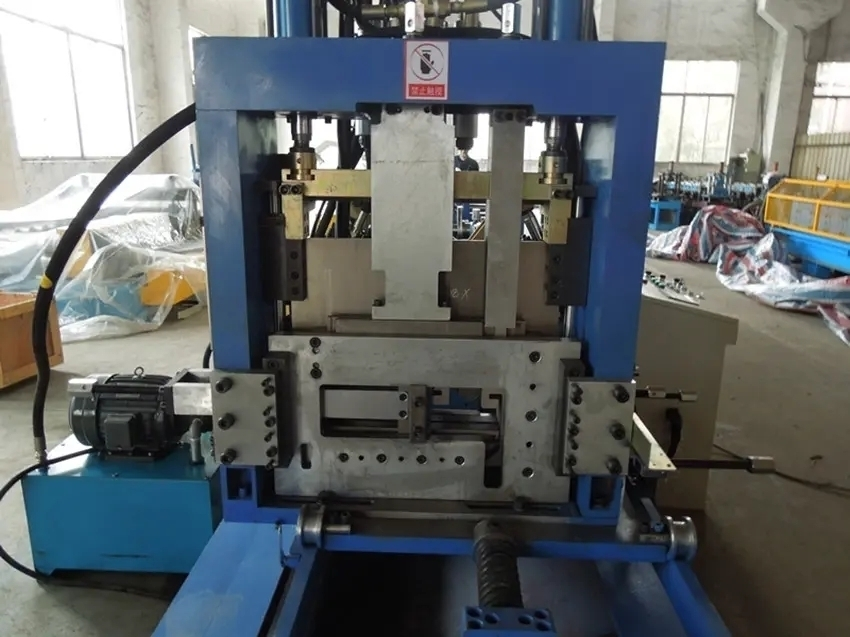

Cable tray roll forming machine uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes` stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Matching material
Galvanized or PPGI, Aluminum coils

Material thickness range
0.8mm-2.0mm

Forming speed
20-30m/min(excluding punching and cutting time)

Hydraulic station power
22KW

Rollers
20(according to drawings and size)

Shaft material and diameter
80mm, material is 40Cr

Material of the body
400H steel

Wall panel
20mm, Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Material of rollers
45# steel with chromed or Cr12(you can choose the material as your request)

Material of blade
Cr12 mould steel with quenched treatment 58-62℃

Total weight
About 5 tons
