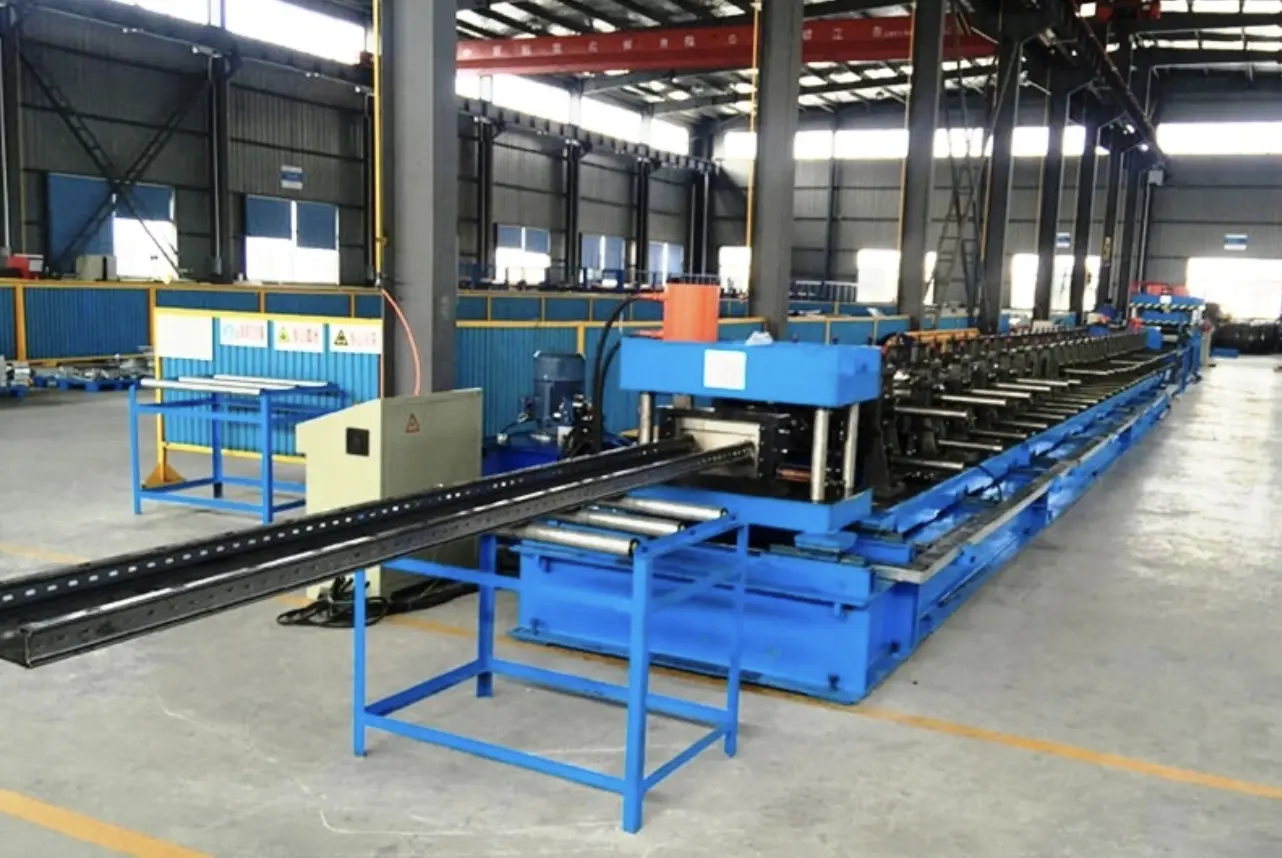

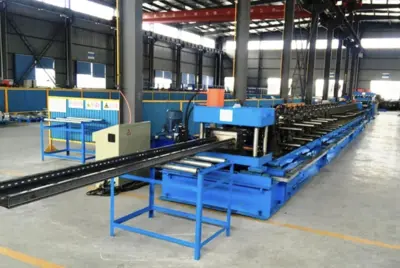

Steel Cable Tray Roll Forming Machine in Brazil

Perforated Trough Sheet Stainless Steel Galvanized Cable Tray cable pallet Track Trunking Roll Forming Machine
1. Hydraulic Decoiler with Breaking device is equipped for coil processing.

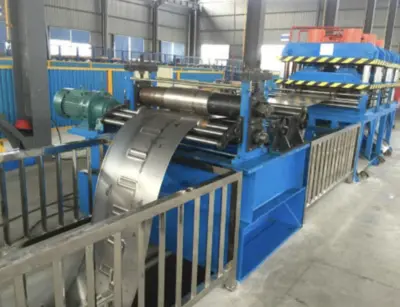

2. Loading Coil Car (Option)
3. Peeler Table And Pressure Pad
4. Leveler
5. Looping Pit
6. Servo Roll Feeder

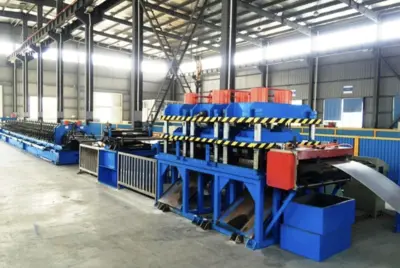

7. 400 Ton Mechanical Press
8. Mechanical Shearing Machine
9. Powered Conveyor Roller
10. Cantilevered Type Rollformer with tooling
11. Run Out Table or automatic stacking device
12. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
13. Line speed is 10– 15 meter / minute.
Coil Width
150-1100 mm

Coil Thickness
1.0-2.0 mm

Power
380 V, 50 Hz, 3 phase

Line Speed
10 m/min

Electical Contral
PLC

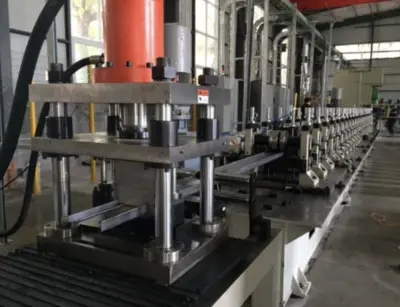

Hydraulic Punching
As per customer drawing
