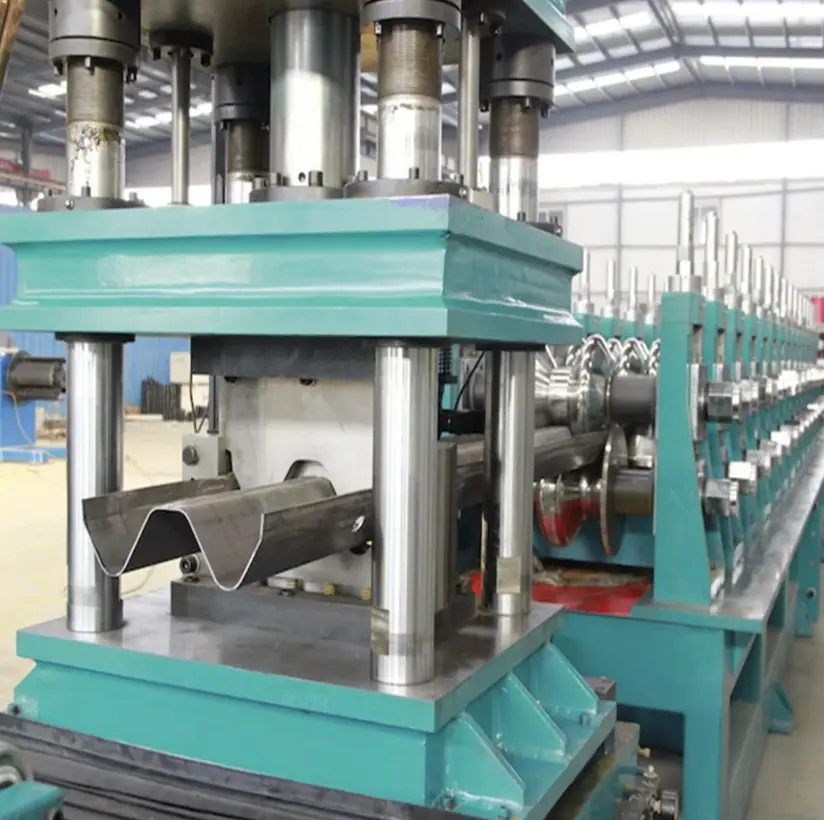

Highway Guard Rail Barrier Roll Forming Machine in Canada

This machine used for punching, forming and cutting of the highway guardrail corrugated plate, which widely used in bridge, highway construction, Power Culvert , highway culvert , infrastructure construction etc.
Material
Cold rolled mild steel

Raw material yield strength
235~355Mpa

Tensile strength of raw materials
420~550Mpa

Coils OD
≤Ф1600 mm

Coils ID
Ф508mm

Strips width
≤750mm

Strips thickness
2.3~3mm

Coils weight
≤10000 kg

Line speed
4 pcs/min(Length4320mm)
