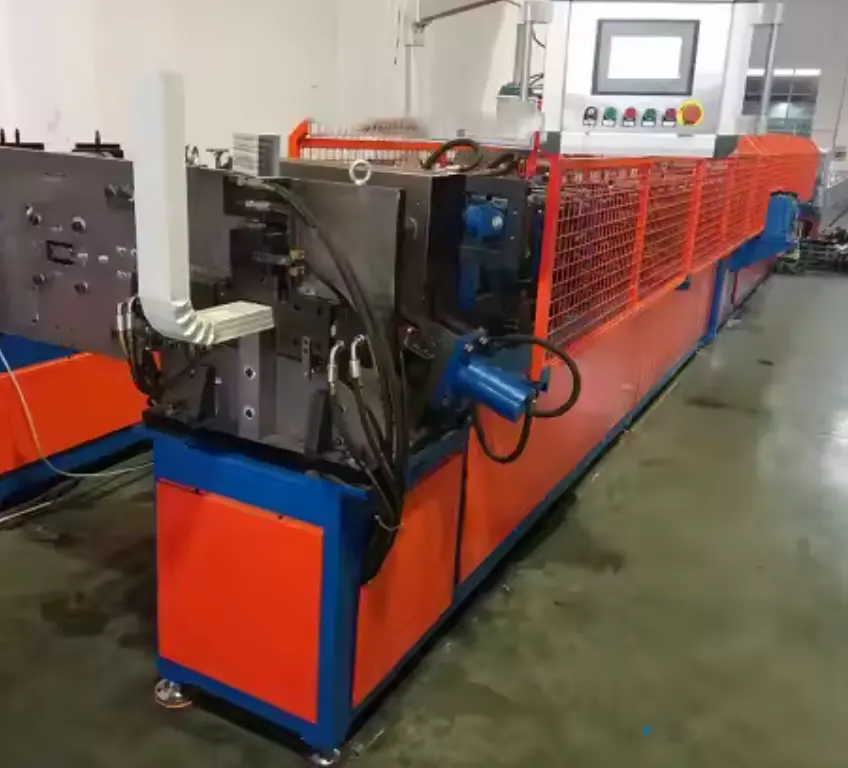

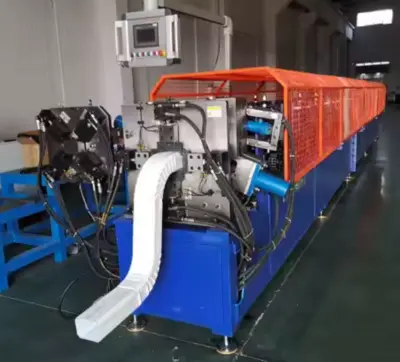

220x100mm Downspout Roll Forming Machine – UAE Specification & Product Overview
Custom-built Downpipe Roll Forming Solution for Commercial and Industrial Drainage Applications in the UAE
Product Overview
The 220x100mm Downspout Roll Forming Machine is an industrial-grade, precision-engineered solution designed to produce large-capacity rectangular downpipes used in commercial, industrial, and high-volume drainage systems. Built to meet the performance and climate demands of the United Arab Emirates, this machine is ideal for roofing and guttering manufacturers operating in Dubai, Abu Dhabi, Sharjah, and across the GCC.
Equipped with advanced servo and hydraulic systems, robust frame engineering, and PLC-controlled automation, this machine ensures consistent output, long-term reliability, and minimal manual intervention, even in high-production environments.
Industries Served
The 220x100mm Downspout Forming Machine caters to a wide range of industries, including:
Commercial Roofing & Guttering Contractors
Mass production of large-format downspouts for commercial buildings.
Rainwater Harvesting System Providers
Manufacturing of durable drainage solutions with precise flow handling.
Metal Building Fabricators
Integration of custom drainage solutions into pre-engineered metal buildings.
Construction Material Suppliers
Large-volume production of standardized and custom downpipe profiles for resale.
Example Applications:
Commercial complexes
Shopping malls
Warehouses
Stadiums
Industrial buildings
Machine Technical Specifications
Feature
Specification
Machine Type
Downspout Roll Forming Machine
Production Speed
10–15 meters/minute (variable with punching/cutting)
Material Thickness Range
0.5 – 1.2 mm
Material Width Range
Up to 450 mm (depends on profile design)
Material Types
Galvanized Steel, Pre-painted Steel, Aluminum, Stainless Steel
Material Yield Strength
Up to 550 MPa (80 KSI)
Roller Material
GCr15 (high-grade bearing steel)
Roller Surface Treatment
Hard chrome plated for corrosion and wear resistance
Number of Forming Stations
20–24 stations (customizable based on profile complexity)
Roller Shaft Diameter
70 mm
Shaft Material
High-strength 45# steel, precision machined
Main Drive Type
Chain or gearbox drive system
Power Supply (UAE)
380V / 50Hz / 3-Phase
Motor Power
11–15 kW (depending on configuration)
Cutting Method
Hydraulic post-cut with die mold
Blade Material
Cr12Mov (heat-treated, wear-resistant)
Control Type
PLC system with touchscreen HMI (Siemens/Delta options)
Operating Mode
Automatic and manual modes
De-coiling System
Hydraulic or manual uncoiler (5–10 ton options)
Punching/Notching
Optional hydraulic punching unit for bracket holes
Machine Frame
Welded steel base with stress relief
Frame Steel Thickness
20–30 mm
Profile Shape
Rectangular Downspout (220x100mm)
Profile Width & Depth
220 mm width × 100 mm depth
Length Tolerance
±1.5 mm per 3 meters
Safety Features
Emergency stop, safety covers, overload protection
Material Details
Recommended Materials:
Galvanized Steel (G550, G300)
Pre-painted Steel
Aluminum
Stainless Steel (where corrosion resistance is critical)
Material Gauge: 0.5 mm to 1.2 mm
KSI Range: Typically 33–80 KSI (yield strength up to 550 MPa)
Pricing
Prices Start From: USD $42,000 (standard configuration)
What Affects Final Price:
Punching or notching system addition
Type of control system (brand and complexity)
Speed and output upgrades
Material width and profile size adjustments
Optional stackers, recoilers, and coil handling equipment
For a precise quote tailored to your profile and production needs, please email your drawings and requirements to: [email protected]
Delivery in the UAE
This machine is custom-built and new, manufactured to your exact specifications. It can be delivered anywhere in the UAE, including:
Dubai
Abu Dhabi
Sharjah
Ajman
Fujairah
Ras Al Khaimah
Backed by local power compatibility and production expectations in the GCC, delivery typically occurs within 60–90 days from order confirmation.
Unique Selling Points (USPs) & Buyer Benefits
Large Profile Capability: Specifically designed for wide downpipes (220x100mm) common in UAE’s commercial projects.
Customizable Output: Fully adjustable to different materials and gauges, allowing production flexibility.
High-Quality Components: Chrome-plated rollers and Cr12 cutting blades ensure extended lifespan.
Energy Efficiency: Optimized power usage and automation minimize manual labor and operational costs.
Advanced PLC Control: Ensures consistent length accuracy and easy troubleshooting via touchscreen interface.
Safety-First Design: All machines come with guards, emergency stops, and overload protection.
Result: Faster production, less waste, and long-term cost savings for metal roofing and guttering businesses.
Customization Options
Custom profile width and height
Optional hole punching unit for bracket installation
Servo-driven feeder upgrade
Automatic stackers for bundled output
Remote-control-enabled PLC with multi-language interface
Hydraulic coil car and uncoiler upgrades
Warranty & Support
Warranty: 1-year warranty from date of dispatch
Support: Remote troubleshooting, video call installation assistance, spare parts availability, and durable maintenance services
Frequently Asked Questions (FAQ)
Q1: What is the production capacity of this machine?
A1: The machine produces up to 10–15 meters of downpipe per minute, depending on the profile and material.
Q2: Can it handle aluminum and stainless steel?
A2: Yes, the machine can be configured to work with aluminum, galvanized, and stainless steel within 0.5–1.2 mm thickness.
Q3: Is profile customization available?
A3: Absolutely. Send your profile drawing and requirements to [email protected] for a custom design quote.
Q4: What support is available in the UAE?
A4: Installation support, commissioning assistance, and post-sale service are available via our global partner network. Spare parts and remote PLC diagnostics are also included.
Q5: How long does delivery take to the UAE?
A5: Standard lead time is 60–90 days from the final approval of technical specifications.
Contact Machine Matcher Today
To request a quote or speak with a roll forming expert, please send your machine requirements and profile drawing to:
[email protected]
All machines are new, custom-built to specification, and globally delivered — Machine Matcher is your trusted source for downspout roll forming solutions in the UAE.
