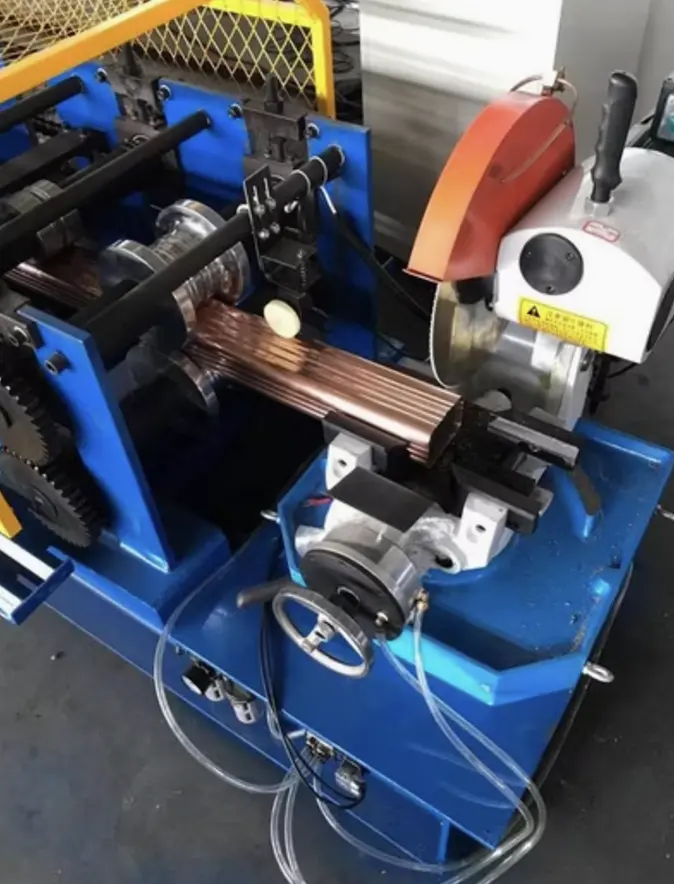

A Downpipe Roll Forming Machine is specialized equipment used to manufacture downpipes or rainwater pipes that direct water from gutters to drainage systems. These machines are widely used in the construction and roofing industries to produce precise and durable downpipes with minimal manual labor.
The machine processes metal coils, shaping them into downpipes through a series of rollers and forming stations. It offers high-speed production, excellent accuracy, and consistent quality, making it an essential tool for manufacturers in the roofing and construction sectors.
Applications
Residential, commercial, and industrial construction projects
Rainwater management systems
Customizable shapes for architectural designs
Production of circular, rectangular, or square downpipes
Setup and Installation
The Downpipe Roll Forming Machine is delivered in a semi-assembled state. Setup involves:
Positioning and leveling the machine.
Connecting the power supply.
Feeding the metal coil into the decoiler.
Running test operations to ensure accuracy.
Maintenance Requirements
Regular lubrication of moving parts.
Cleaning rollers to prevent buildup.
Checking and replacing hydraulic oil periodically.
Tightening screws and bolts as needed.
Inspecting the cutting blades for wear and tear.
FAQs: Downpipe Roll Forming Machine in the UK
1. What profiles can the machine produce?
The machine can manufacture round, rectangular, or square downpipes depending on the roller design.
2. Can the machine handle UK-specific power requirements?
Yes, the machine can be customized to operate on the UK's 380V/50Hz/3Phase power supply.
3. What materials are commonly used in the UK for downpipes?
Galvanized steel and aluminum are popular choices due to their corrosion resistance and durability.
4. Is the machine suitable for high-volume production?
Yes, with a forming speed of up to 25 meters per minute, it is ideal for mass production.
5. Are there optional features for customization?
Yes, options include automatic stackers, embossing systems, and elbow-making attachments.
6. How is shipping to the UK handled?
The machine is securely packed and shipped by sea or air freight. UK import duties and VAT are applicable.
7. What is the average lead time for delivery in the UK?
Delivery typically takes 4-6 weeks, including production and shipping.
8. What should I look for in a good Downpipe Roll Forming Machine?
Focus on material compatibility, forming speed, durability of rollers and cutting blades, ease of operation, and after-sales support.
Material Capability:Material Types: Galvanized steel, stainless steel, aluminum, or copperThickness Range: 0.4mm to 1.2mmWidth of Material: 100mm to 300mm
Material Types: Galvanized steel, stainless steel, aluminum, or copper
Thickness Range: 0.4mm to 1.2mm
Width of Material: 100mm to 300mm
Machine Structure:Frame: Heavy-duty steel frameRoller Material: High-grade steel with chrome platingRoller Stations: 16-24 stations (varies based on profile)
Frame: Heavy-duty steel frame
Roller Material: High-grade steel with chrome plating
Roller Stations: 16-24 stations (varies based on profile)
Forming Speed:Up to 15-25 meters per minute
Up to 15-25 meters per minute
Power Requirements:Main Motor: 5.5kW to 11kWHydraulic Cutting System: 3.7kWVoltage: 380V/50Hz/3Phase (customizable for the UK)
Main Motor: 5.5kW to 11kW
Hydraulic Cutting System: 3.7kW
Voltage: 380V/50Hz/3Phase (customizable for the UK)
Control System:PLC Control: User-friendly interface for programming and monitoringOperation Mode: Automatic and manual
PLC Control: User-friendly interface for programming and monitoring
Operation Mode: Automatic and manual
Cutting System:Type: Hydraulic cutting for precisionBlade Material: Cr12 mold steel with heat treatment for durability
Type: Hydraulic cutting for precision
Blade Material: Cr12 mold steel with heat treatment for durability
Output Dimensions:Adjustable sizes for round, rectangular, and square downpipes
Adjustable sizes for round, rectangular, and square downpipes
Optional Accessories:Automatic stackersDecoilers and recoilersEmbossing system for custom designsElbow-making attachment
Automatic stackers
Decoilers and recoilers
Embossing system for custom designs
Elbow-making attachment
Safety Features:Emergency stop buttonProtective guards and enclosures
Emergency stop button
Protective guards and enclosures
