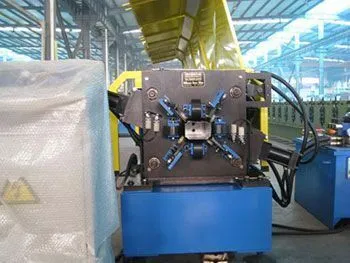

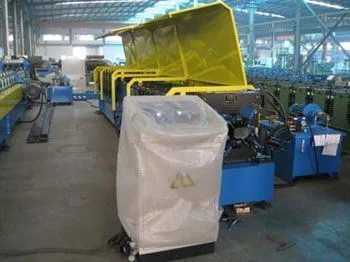

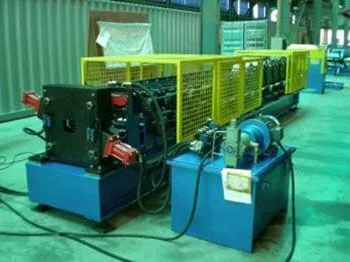

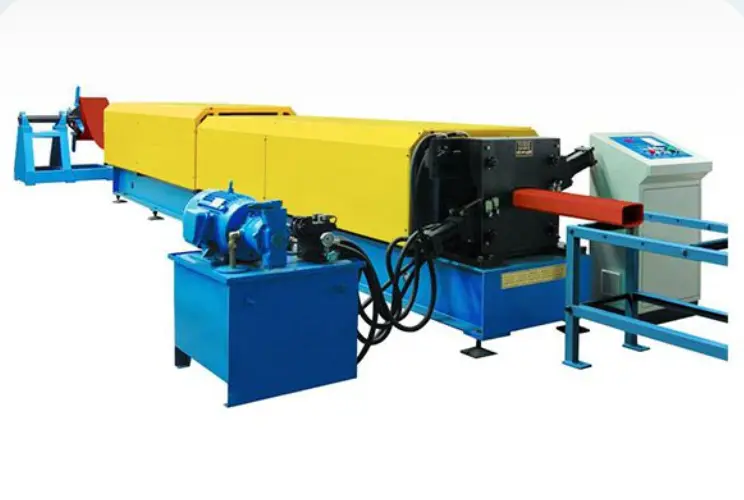

HS Downspout Roll Forming Machine in Shaoxing City, China

This roll forming machine can produce the various downspouts through forming the colored steel sheet. It adopts PLC control system, AC frequency conversion for speed adjustment, therefore it can automatically achieve cut-to-length process. This downspout roll forming machine has obtained intellectual property right and national patent.
Elbow roll former is the complementary equipment which can be used for downspout bending and necking. This roll forming machine adopts cam controlling method to achieve automatic production process, the angle can be adjusted manually.
We can design and manufacture roll formers for forming different profiles according to customers' requirements.
Model
HS-134
HS-118

Downspout section specification
134×93
118×89

Material
Type
Color steel sheet

Thickness(mm)
0.45-0.55

Yield strength(Mpa)
230-300

Forming speed(m/min)
10

Roller material
45# Steel with chrome plated

Roller driven type
Chain transmission

Controller
PLC

Operation
Touch screen+button

Hydraulic system pressure(Mpa)
12

Hydraulic station motor power(KW)
7.5

Main motor power(KW)
3

Total power(KW)
10.5

Total weight(KG)
8000
