Rain gutter roll forming machines are specialized equipment designed to manufacture rain gutters efficiently and precisely. These machines are integral for industries involved in roofing and construction, enabling them to produce high-quality gutters in various profiles and sizes to meet diverse customer needs.
Machine Description

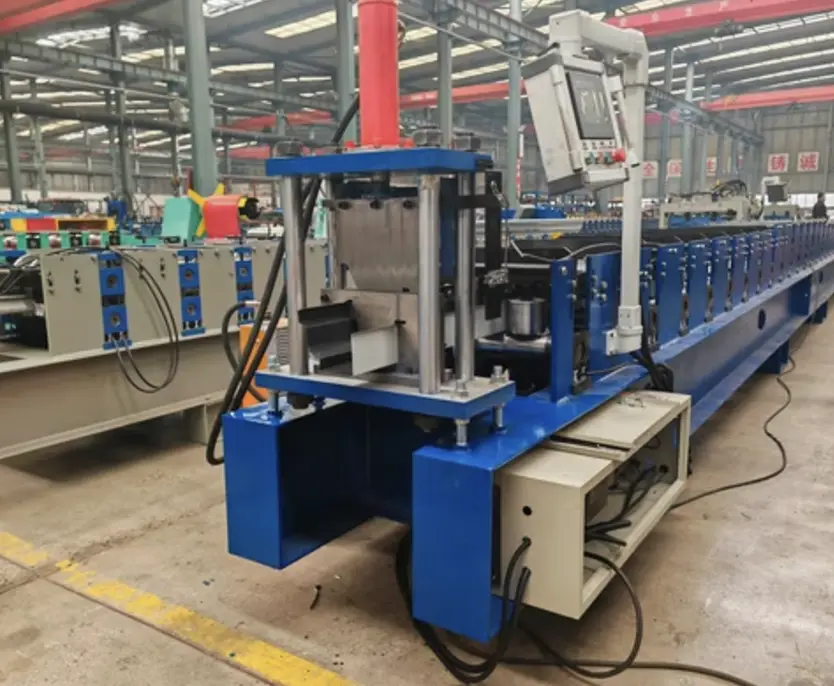

A rain gutter roll forming machine is engineered to transform metal coils into seamless and durable rain gutters. The machine operates through a series of rollers that progressively shape the metal into the desired gutter profile. These machines are designed for reliability, precision, and high production rates, making them ideal for both small-scale operations and large construction projects.
The machines can produce various gutter profiles, including K-style, half-round, and box gutters. They are capable of handling different materials such as aluminum, steel, and copper, providing versatility to cater to different market demands.
Key Features
Precision Engineering: Ensures seamless and accurate gutter profiles.
High Efficiency: Capable of producing large volumes in minimal time.
Durable Build: Constructed with high-quality steel for long-term use.
User-Friendly Control Panel: Easy operation and quick adjustments with PLC systems.
Versatility: Can handle a variety of materials and produce multiple profiles.
Setup and Installation
The machine is delivered pre-assembled and tested, requiring minimal installation time. The setup involves connecting the power supply, aligning the rollers, and feeding the material through the machine. Manufacturers provide detailed manuals and training sessions for smooth installation and operation.
Maintenance Requirements
To ensure optimal performance, regular maintenance is essential:
Daily Checks: Inspect rollers, cutting blades, and electrical connections.
Lubrication: Apply lubricants to moving parts periodically.
Cleaning: Remove metal debris and dust from the machine regularly.
Replacement: Monitor for wear and replace rollers and cutting blades as needed.
Question and Answer Section
Q1: What materials can the machine process?
The machine can process aluminum, galvanized steel, and copper, with material thickness ranging from 0.3 to 0.8 mm.
Q2: Can the machine produce multiple gutter profiles?
Yes, the machine can be customized to produce K-style, half-round, and box gutter profiles.
Q3: What is the production capacity?
The forming speed is typically between 15 and 30 meters per minute, depending on the material and profile.
Q4: Is the machine compatible with U.S. power standards?
Yes, the machine is designed to operate with U.S. power supplies, including 220V/60Hz and 380V/60Hz options.
Q5: How much space is required for the machine?
The machine typically requires a space of 7–10 meters in length and 1.5 meters in width.
Q6: What are the maintenance requirements?
Daily inspections, regular lubrication, cleaning, and periodic replacement of parts like rollers and cutting blades are essential for maintenance.
Q7: Are there optional extras available?
Yes, extras include manual or hydraulic decoilers, run-out tables, and additional profile customization options.
Q8: What industries benefit from this machine?
The primary users are roofing and construction companies, as well as contractors involved in gutter installation projects.
Material Compatibility: Aluminum, galvanized steel, copper
Material Thickness: 0.3–0.8 mm (customizable)
Rollers:Material: High-grade steel, heat-treated for durabilityNumber: 10–16 rollers, depending on the profile
Material: High-grade steel, heat-treated for durability
Number: 10–16 rollers, depending on the profile
Forming Speed: 15–30 meters per minute
Cutting System:Type: Hydraulic or servo motor-driven cutting systemBlade Material: Cr12 steel, heat-treated for precision and durability
Type: Hydraulic or servo motor-driven cutting system
Blade Material: Cr12 steel, heat-treated for precision and durability
Profile Types: K-style (5-inch, 6-inch), half-round, box gutters
Machine Frame:Material: High-strength steelSize: Typically 300 mm H-beam
Material: High-strength steel
Size: Typically 300 mm H-beam
Control System:PLC control system with touch screen interfaceCompatibility with standard U.S. power supply (220V/60Hz or 380V/60Hz)
PLC control system with touch screen interface
Compatibility with standard U.S. power supply (220V/60Hz or 380V/60Hz)
Dimensions:Machine Length: 7–10 metersMachine Width: 1.2–1.5 metersMachine Height: 1.2–1.5 meters
Machine Length: 7–10 meters
Machine Width: 1.2–1.5 meters
Machine Height: 1.2–1.5 meters
Weight: 3–5 tons, depending on configuration
Extras:Decoiler (manual or hydraulic, up to 5-ton capacity)Run-out table for easy stackingCustomizable paint and branding options
Decoiler (manual or hydraulic, up to 5-ton capacity)
Run-out table for easy stacking
Customizable paint and branding options
