Control System
PLC Delta Inverter
Main Frame
400mm H-Beam
Main Power
4 kw
Pump Power
3 kw
Power Supply
380V, 3-Phase,50Hz
Forming Speed
4-8m/min
Roll Station
16 stands
Roller Diameter
65mm
Hydraulic Pressure
10-12MPa
Forming Size
260mm
Feeding Thickness
0.27-0.8mm
Feeding Width
600mm
Backboard Thickness
18mm
Chain Size
33mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
6000 × 1000 × 1200mm
Total Weight
3T

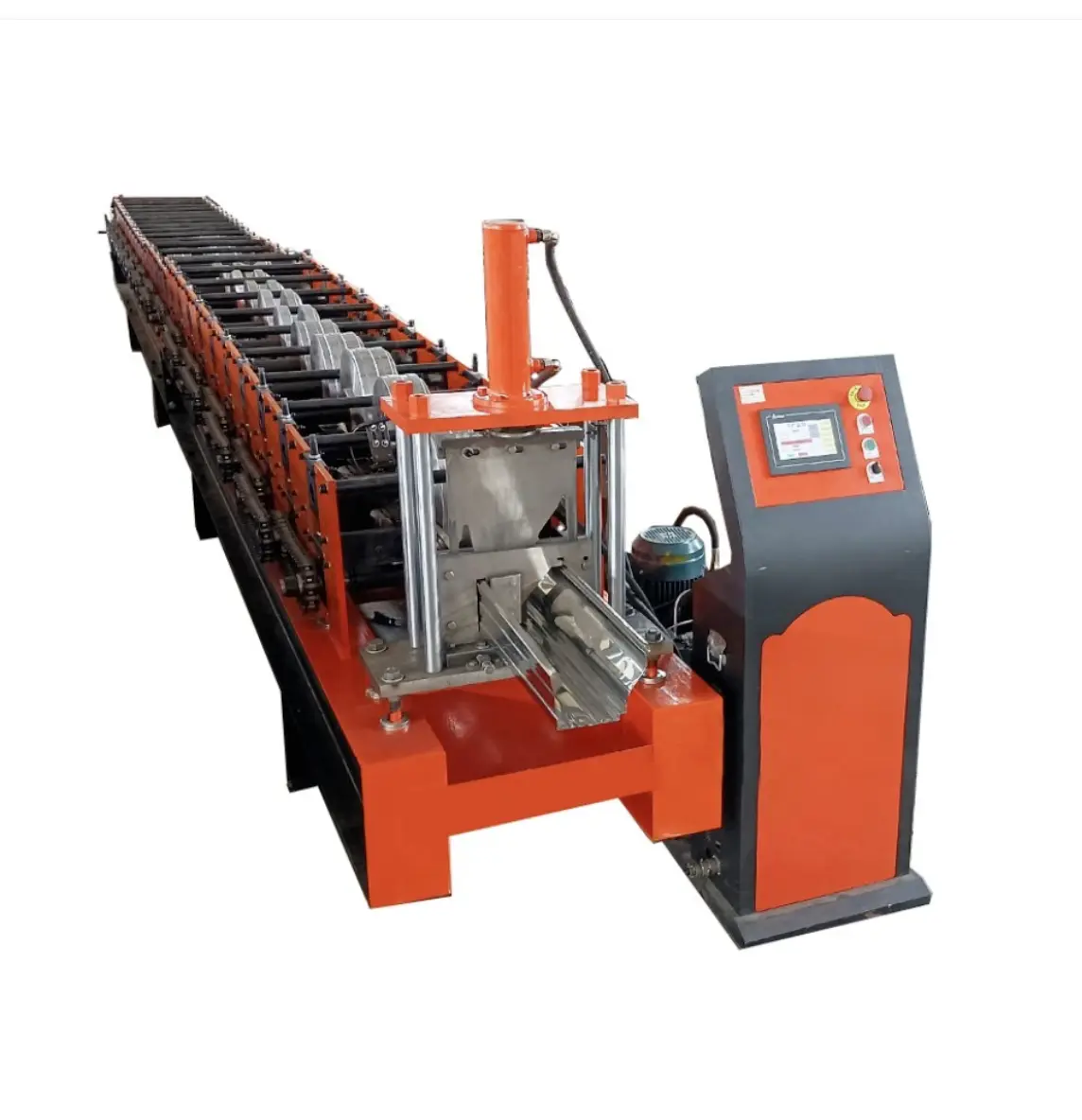

A rain gutter roll forming machine is a specialized piece of equipment designed to produce continuous, seamless metal rain gutters for residential, commercial, and industrial buildings. These machines take flat metal coils (usually aluminum, steel, or copper) and form them into various gutter profiles through a series of rollers that progressively shape the metal into the desired form.
Key Features:
High Precision Rollers: The machine uses precisely designed rollers to shape the gutter profile, ensuring a smooth, consistent product.
Different Gutter Profiles: Can produce various gutter profiles such as K-style, half-round, box gutters, and custom designs.
Adjustable Settings: The machine allows operators to adjust dimensions like gutter width and height, catering to specific project requirements.
Seamless Gutters: Continuous roll forming means that gutters can be made to any length, reducing the need for joints and seams, which minimizes leaks.
Material Compatibility: Works with a range of metals, including aluminum, galvanized steel, and copper, with the option for pre-painted or coated coils for extra durability.
Efficient Production: Capable of producing large quantities of gutters with minimal waste, providing efficiency for manufacturers and installers.
Advantages:
Cost-Effective: Reduces material waste and labor costs by automating the gutter production process.
Customization: The ability to create gutters of varying lengths and profiles makes the machine versatile for different building designs.
Portability: Some machines are mobile, allowing contractors to bring the machine to the job site and produce gutters on-site.
Applications:
Residential Roofing: For installing durable, custom-length gutters on homes.
Commercial and Industrial Buildings: Produces heavy-duty gutters suitable for larger buildings and structures.
Custom Gutter Systems: Allows manufacturers to offer tailored gutter solutions with specific dimensions and materials.
