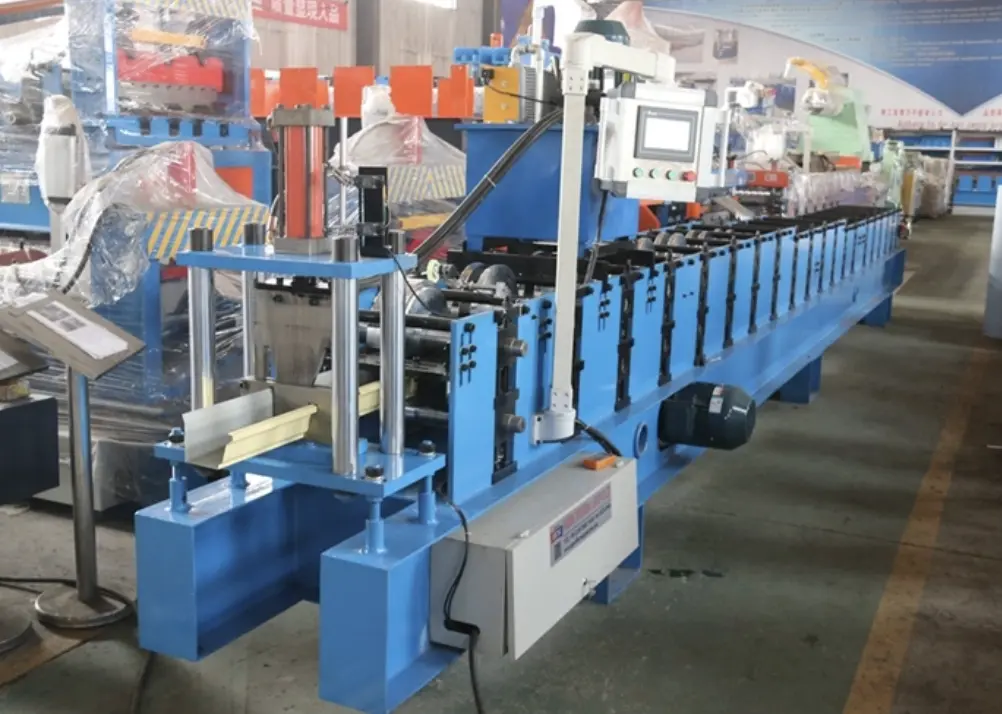

main parameter of gutter roll forming machine
Suitable to process
Color steel plate, galvanized sheet, aluminum coils and etc.
Width of the feeding material
According to the profile
Rollers station
18 rows
Thickness of feeding material
0.3-0.8mm
Power
4+4kw
Size
8500*800*1500mm
Productivity
8-12m/min
Diameter of shaft
52mm
Weight
About 4.8 T
Voltage
380V 50Hz 3phases
Rolling material
Carbon Steel 45#
Material of the cutting plate
Cr12
Wall thickness of main forming machine
16mm steel plate
Main structure of the machine
300 H steel
