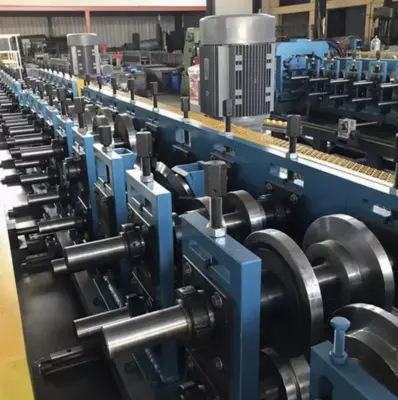

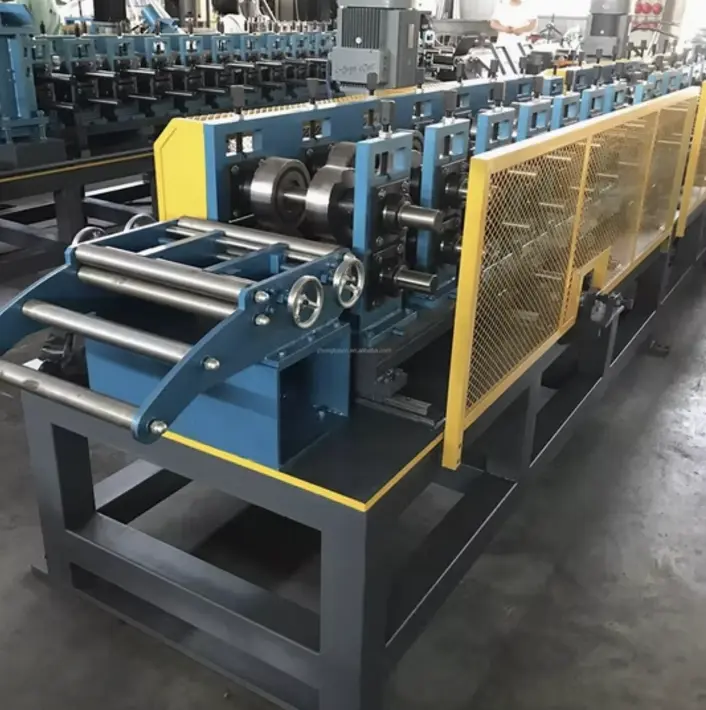

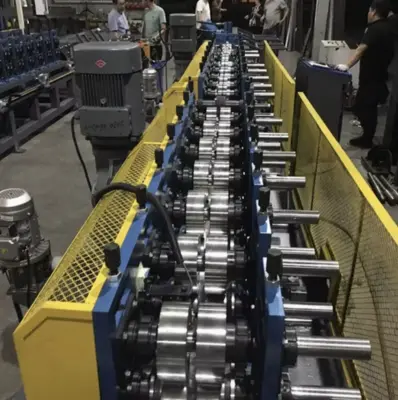

J Channel Metal Siding Roll Forming Machine in the USA

A J Channel Metal Siding Roll Forming Machine is a specialized equipment designed to produce high-quality J-channel profiles used in siding applications. These profiles are widely utilized in residential, commercial, and industrial construction for securing siding edges and providing a clean, finished look to buildings. The machine is designed for high-speed, precision manufacturing and can handle a variety of materials to meet the needs of the construction industry in the USA.
Machine Description
The J Channel Metal Siding Roll Forming Machine is engineered for efficiency, precision, and reliability. It transforms metal coils into finished J-channel profiles through a series of rollers that shape, cut, and punch the metal to exact specifications. This machine is essential for manufacturers in the siding and construction industries, as it can produce large volumes of J-channels with consistent quality and minimal waste.
The USA market prioritizes durable and high-performance machines, and this roll forming machine meets those expectations. Its robust construction, advanced PLC control, and hydraulic cutting systems ensure precision in every profile. Whether used for small-scale production or high-volume manufacturing, this machine adapts to various operational needs.
Applications
Residential Construction: Securing vinyl and metal siding.

Commercial Buildings: Providing edge finishing for modern metal panels.

Industrial Use: Heavy-duty siding for warehouses and factories.

Renovation Projects: Used for retrofitting older buildings with updated siding systems.
Question and Answer Section
Q1: What materials can the J Channel Metal Siding Roll Forming Machine process?
A: The machine can process galvanized steel, aluminum, and stainless steel, with a thickness range of 0.3-1.2mm.
Q2: Can the machine handle custom profile designs?
A: Yes, the rollers and punching systems can be customized to produce various J-channel designs.
Q3: What is the average production speed of the machine?
A: The machine can produce profiles at a speed of 10-20 meters per minute, depending on the complexity of the profile.
Q4: Is it possible to integrate an automatic stacker with the machine?
A: Yes, an automatic stacker is available as an optional add-on for efficient stacking of finished profiles.
Q5: How is the machine controlled?
A: The machine uses a PLC system with a touchscreen interface, which allows for precise control and easy programming of production parameters.
Q6: What safety features does the machine have?
A: Safety covers, emergency stop buttons, and overload protection are included to ensure safe operation.
Q7: Can this machine handle heavy-duty production?
A: Yes, its heavy-duty frame and robust motor are designed for continuous, high-volume production.
Q8: What is the delivery time for the machine in the USA?
A: Delivery times typically range from 30-60 days, depending on customization and stock availability.
Q9: How much maintenance is required for this machine?
A: Routine maintenance includes lubrication of rollers and motors, inspection of cutting blades, and cleaning of the machine to prevent debris buildup.
Q10: What is the cost range for the J Channel Metal Siding Roll Forming Machine?
A: Prices vary based on specifications and customizations but generally range between $40,000 and $100,000.

Roller Materials:Material: High-grade GCr15 steelHeat-treated for durabilityChrome-coated for rust resistance
Material: High-grade GCr15 steel
Heat-treated for durability
Chrome-coated for rust resistance
Machine Frame:Heavy-duty welded steel structureThickness: 20-25mm for enhanced stability
Heavy-duty welded steel structure
Thickness: 20-25mm for enhanced stability
Motor:Main motor power: 7.5-15 kWServo motors for feeding precision
Main motor power: 7.5-15 kW
Servo motors for feeding precision
Hydraulic Cutting System:Hydraulic station power: 3-5.5 kWCutting accuracy: ±1mmBlade material: Cr12Mov steel, heat-treated for durability
Hydraulic station power: 3-5.5 kW
Cutting accuracy: ±1mm
Blade material: Cr12Mov steel, heat-treated for durability
Punching and Notching:Customizable punching stationsPneumatic or hydraulic punching availablePunching accuracy: ±0.5mm
Customizable punching stations
Pneumatic or hydraulic punching available
Punching accuracy: ±0.5mm
Control System (PLC):Fully automated PLC system with a touch screenBrands: Siemens or MitsubishiLanguage: English, Spanish, and other customizable options
Fully automated PLC system with a touch screen
Brands: Siemens or Mitsubishi
Language: English, Spanish, and other customizable options
Material Input:Material types: Galvanized steel, aluminum, stainless steelMaterial thickness: 0.3-1.2mmCoil width: 100-250mm (customizable)
Material types: Galvanized steel, aluminum, stainless steel
Material thickness: 0.3-1.2mm
Coil width: 100-250mm (customizable)
Production Speed:10-20 meters per minute (depending on profile complexity)
10-20 meters per minute (depending on profile complexity)
Safety Features:Emergency stop buttonsSafety covers on all moving partsOverload protection system
Emergency stop buttons
Safety covers on all moving parts
Overload protection system
Dimensions:Length: 6,000-8,000mmWidth: 1,500-2,000mmHeight: 1,500mm
Length: 6,000-8,000mm
Width: 1,500-2,000mm
Height: 1,500mm
Optional Add-Ons:Automatic stackersRemote PLC control systemCoil car for loading heavy coilsPre-cutting or post-cutting optionsInline embossing rollers for textured profiles
Automatic stackers
Remote PLC control system
Coil car for loading heavy coils
Pre-cutting or post-cutting options
Inline embossing rollers for textured profiles
