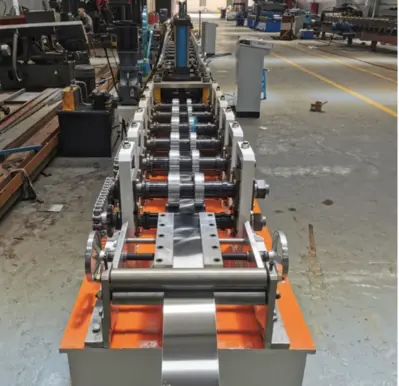

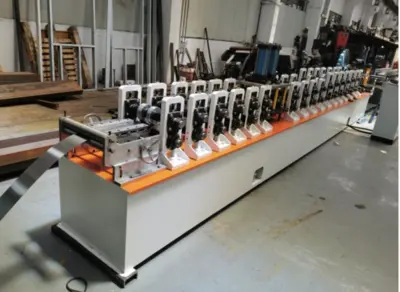

Metal Siding Trim J Channel Roll Forming Machine in Wuxi, China

This machine to produce J channel, J-channel has traditionally been used as trim around windows and doors during vinyl and aluminum siding installations, along with being used quite frequently for soffit. It can also be used to finish areas where horizontal siding dead ends into another material
Material of coil
Material Thickness
0.3-0.8mm galvanized sheet full hard 85-95, G550, PPGI

Forming system
Rolling Speed
0-10 m/min( without the cutting time)

Roller Stations
About 16-18 stations

Roller Material

45# Steel with quenching 60mm shaft

Maim Motor Power
5.5 kw

Hydraulic cutting Power
4 kw

Bearing
Rubber sealing bearing

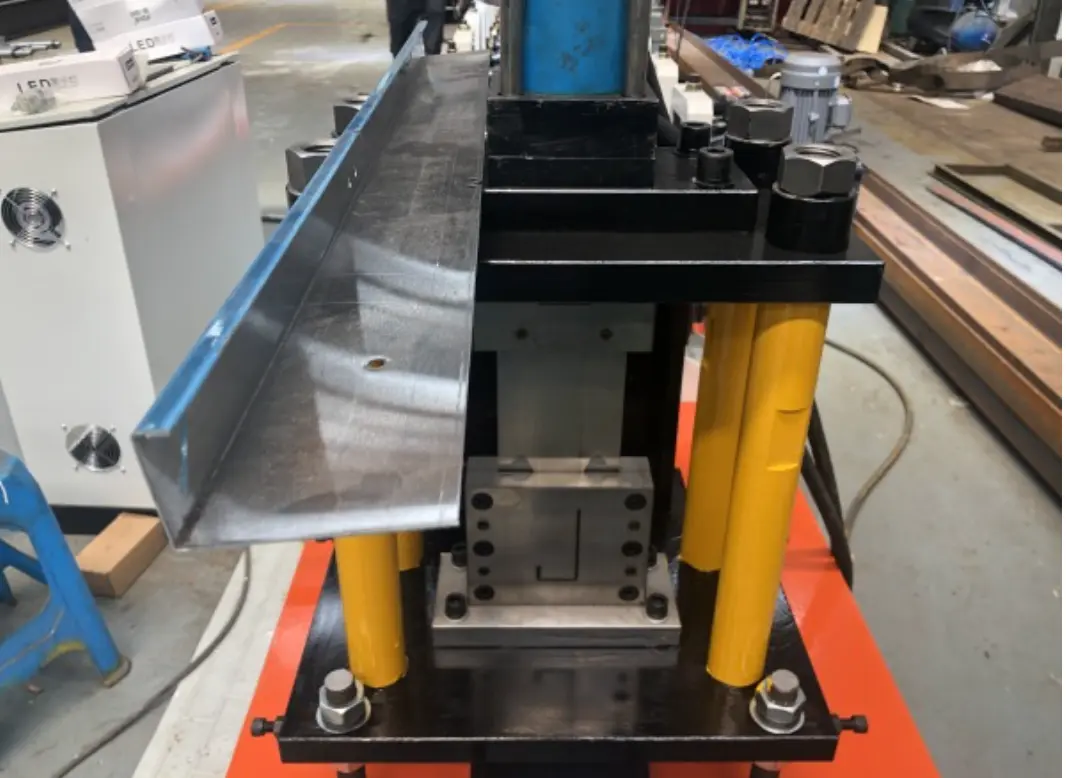

Cutting
system

Material Of Cutting
CR12 with quench treatment

Hardness
HRB 85-95

Tolerance
+-1.5mm

Cutting way
Stop cutting

Electrical control system
Electric Source

220V, 60HZ,3 phase
Also can satisfy Customer’s require

Control System
PLC Delta

Inverter
Delta

Weight
About 2.5 tons

Way Of Drive
1 inch single chain

Size of machine
Length 7500mm* Width 800mm* Height 500m

MOTOR
Under the frame of the machine
