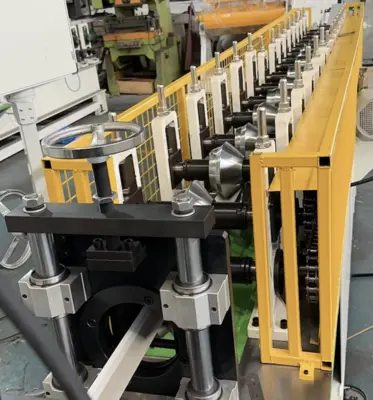

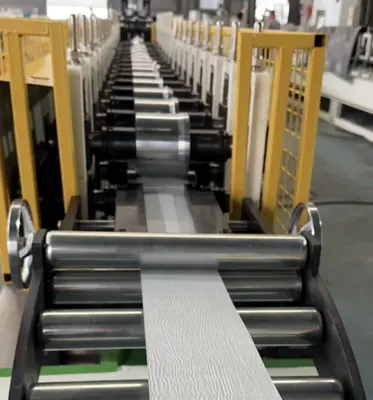

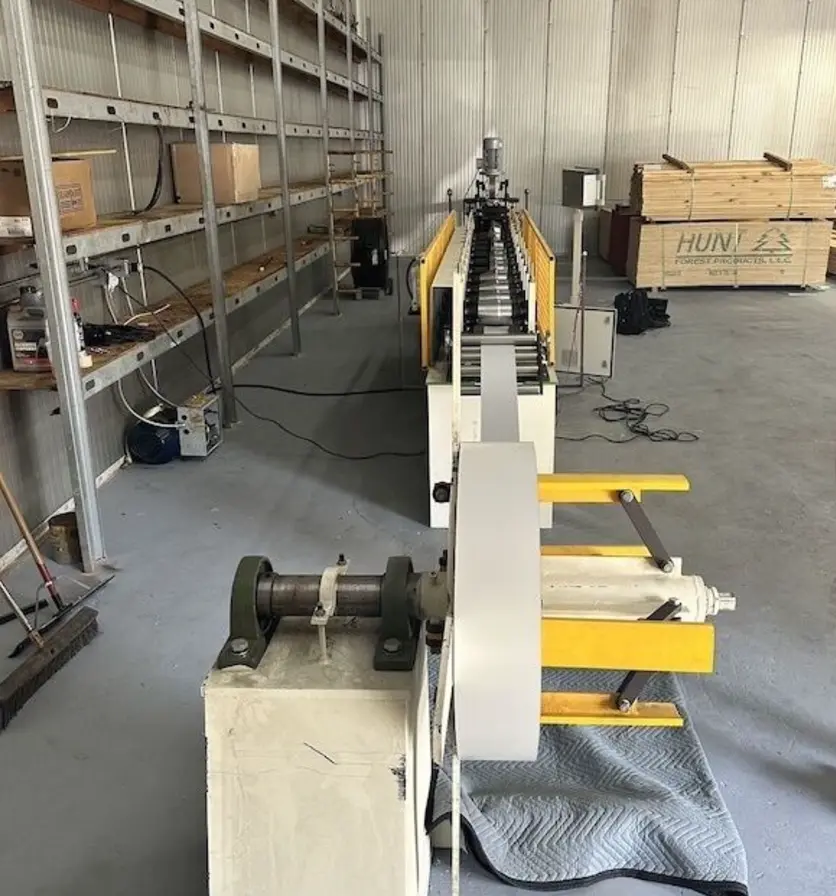

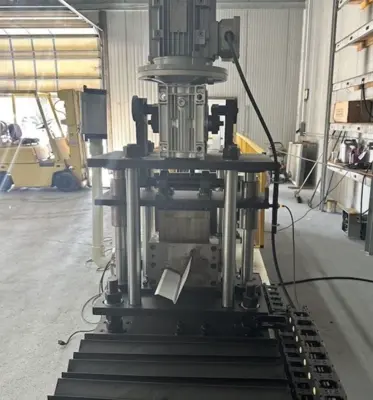

Metal Roof Drip Edge Roll Forming Machine Florida

A Metal Roof Drip Edge Roll Forming Machine is a specialized piece of equipment designed to produce drip edge profiles efficiently and accurately for metal roofing applications. Drip edges are critical components in roofing systems, ensuring water runs off smoothly and preventing damage to the roof deck and underlying structures. This machine automates the process of fabricating precise drip edge profiles, enhancing production speed and consistency.
The machine is ideal for use in roofing manufacturing facilities, particularly in areas like Florida, where extreme weather conditions demand high-quality roofing solutions. It can handle various materials such as aluminum, galvanized steel, and stainless steel, catering to the diverse needs of the roofing industry.
Benefits of Using the Metal Roof Drip Edge Roll Forming Machine
Efficiency: Produces consistent profiles quickly, reducing labor costs and time.

Precision: Guarantees exact dimensions and smooth finishes, crucial for roofing applications in Florida's hurricane-prone climate.

Versatility: Handles multiple materials and thicknesses, catering to diverse customer needs.

Durability: Built for long-term use, with components designed to withstand high-volume production.

Customization: Tailored configurations available for specific profile designs and operational needs.
Question and Answer Section
Q1: What materials can this machine handle?
The machine can process aluminum, galvanized steel, and stainless steel with a thickness range of 0.3 mm to 0.8 mm.
Q2: Is this machine suitable for Florida’s roofing market?
Yes, the machine is highly suitable for Florida’s roofing market. It produces precise drip edges that are essential for protecting buildings from heavy rain, storms, and hurricanes common in the region.
Q3: Can the machine be customized?
Yes, the machine can be customized for specific profile designs, material types, and production speeds.
Q4: How does the machine ensure cutting precision?
The hydraulic cutting system uses Cr12Mov steel blades, which are heat-treated for durability and sharpness, ensuring precise cuts every time.
Q5: What is the production speed of the machine?
The standard production speed is 10-15 meters per minute, but higher speeds can be achieved with advanced configurations.
Q6: Is it easy to operate?
Yes, the machine features a PLC control system with a user-friendly interface, making it easy to operate and manage.
Q7: Can it produce multiple drip edge designs?
Yes, with the appropriate rollers and configurations, the machine can produce various drip edge designs.
Q8: What optional features are available?
Optional features include stackers, punching systems, leveling systems, and remote PLC controls for enhanced functionality.
Q9: What are the maintenance requirements?
Regular maintenance involves lubricating moving parts, checking the alignment of rollers, and ensuring the cutting blades are sharp. Detailed instructions are provided with the machine.
Q10: How long does it take to set up the machine?
The setup typically takes 1-2 days, depending on the complexity of the configuration and the availability of required tools and materials.

Frame and Build:
Frame Material: High-strength steelFrame Size: Customizable, standard sizes availableRoller Material: GCr15 steel with hard chrome plating for durability
Frame Material: High-strength steel
Frame Size: Customizable, standard sizes available
Roller Material: GCr15 steel with hard chrome plating for durability
Power System:
Main Motor Power: 5-7.5 kW (depending on configuration)Hydraulic Station Power: 3-4 kWPower Supply: 220V/380V, 3-phase, 50/60 Hz (adjustable for Florida's power grid standards)
Main Motor Power: 5-7.5 kW (depending on configuration)
Hydraulic Station Power: 3-4 kW
Power Supply: 220V/380V, 3-phase, 50/60 Hz (adjustable for Florida's power grid standards)
Profile Specifications:
Profile Material: Aluminum, galvanized steel, stainless steelMaterial Thickness: 0.3 mm to 0.8 mmProfile Width: Customizable based on client requirements
Profile Material: Aluminum, galvanized steel, stainless steel
Material Thickness: 0.3 mm to 0.8 mm
Profile Width: Customizable based on client requirements
Machine Speed:
Production Speed: 10-15 m/min (higher speeds available with advanced configurations)
Production Speed: 10-15 m/min (higher speeds available with advanced configurations)
Control System:
PLC system with a user-friendly interfaceBrands Supported: Siemens, Mitsubishi, or DeltaRemote control options for ease of operation
PLC system with a user-friendly interface
Brands Supported: Siemens, Mitsubishi, or Delta
Remote control options for ease of operation
Cutting System:
Hydraulic cutting system for precise cutsBlades made from Cr12Mov steel with heat treatment
Hydraulic cutting system for precise cuts
Blades made from Cr12Mov steel with heat treatment
Optional Extras:
Stackers: Manual or automaticCoil Handling Equipment: Uncoilers and recoilersPunching System: For pre-punched holes or slotsLeveling System: For flat and even profiles
Stackers: Manual or automatic
Coil Handling Equipment: Uncoilers and recoilers
Punching System: For pre-punched holes or slots
Leveling System: For flat and even profiles
Machine Dimensions:
Length: 7-9 metersWidth: 1.5-2 metersHeight: 1.5 meters
Length: 7-9 meters
Width: 1.5-2 meters
Height: 1.5 meters
