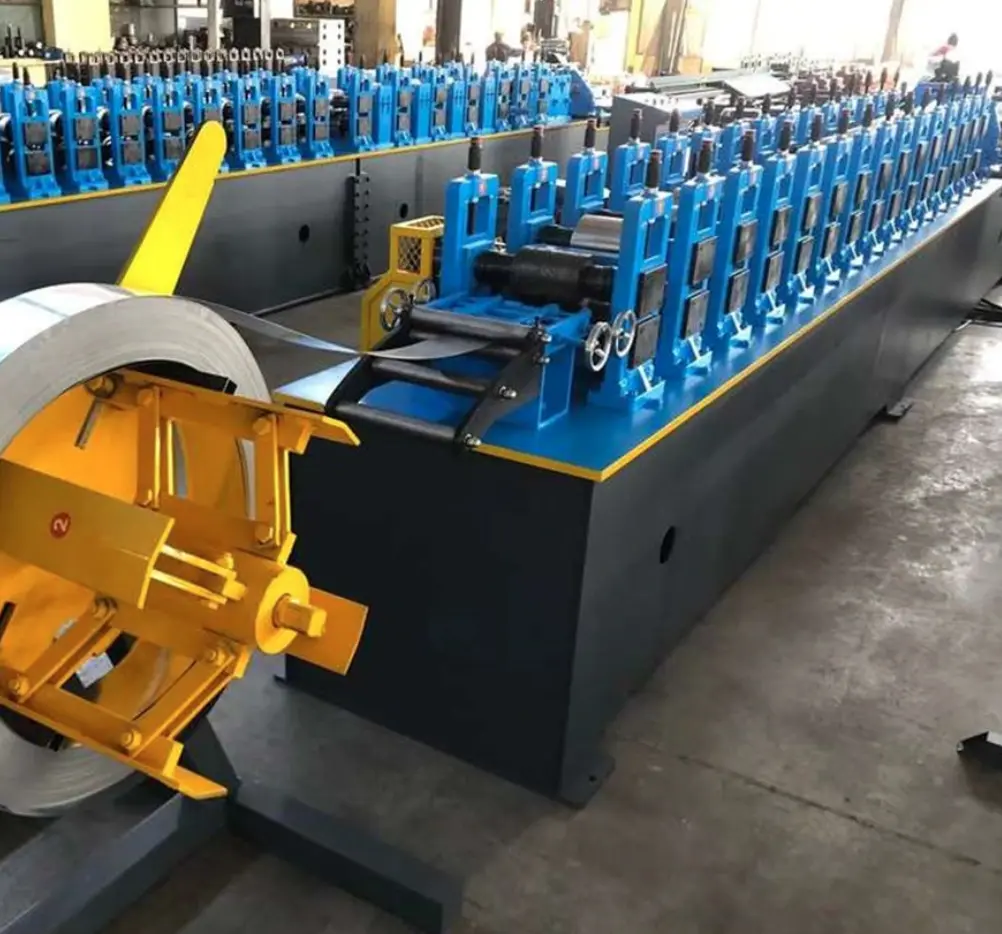

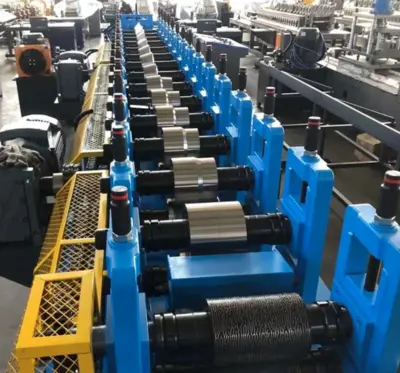

Drip Edge Roll Forming Machine Specifications
Main motor power
5.5kw
Hydraulic motor power
5.5kw
Hydraulic Pressure
10-12MPa
Voltage
380V/50HZ/3Phase
Control System
PLC (Delta brand)
Feeding Material
Galvanized steel
Feeding Thickness
0.3-1.0m
Speed
60m/min
Roller station
15rows
Shaft diameter
50mm
Shaft material
45# steel
Roller material
Bearing steel, Cr12
Cutter material
Cr12 quenched
Dimension
5200*800*1200mm
Weight
about 4500 kg
