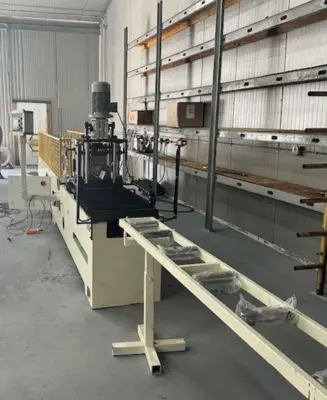

The F5 Drip Edge Roll Forming Machine is a cutting-edge solution designed for high-precision production of drip edge profiles commonly used in roofing applications. This machine combines robust engineering with advanced technology to deliver consistent and high-quality drip edges at scale. Ideal for contractors, roofing manufacturers, and metal fabricators in the United States, this machine is designed to meet the specific demands of the U.S. construction market, adhering to ASTM standards for material and profile precision.
The F5 Drip Edge Roll Forming Machine is equipped with automated systems, a durable construction, and user-friendly controls, ensuring both productivity and ease of use. It is capable of processing a wide range of materials, including aluminum, galvanized steel, and pre-painted steel, making it versatile for various roofing projects.
Applications of Drip Edge Profiles
Roofing installations for water diversion
Residential and commercial roofing projects
Metal building systems
Enhancing roof edge aesthetics and durability
Setup and Installation
The F5 Drip Edge Roll Forming Machine is delivered with detailed setup instructions and on-site installation services if required. The machine requires a flat surface, a stable power connection, and adequate space for operation. Operators can be trained to use the PLC system effectively, ensuring quick production ramp-up.
Maintenance Requirements
Daily: Clean rollers and check for debris accumulation.
Monthly: Inspect cutting blades and lubricate moving parts.
Yearly: Conduct a full inspection of the hydraulic system, rollers, and PLC connections.
Regular maintenance helps to maximize machine lifespan and ensure consistent performance.
Question and Answer Section
Q1: What materials can the F5 Drip Edge Roll Forming Machine process?
The machine can process aluminum, galvanized steel, and pre-painted steel within the thickness range of 0.3–0.8 mm, making it suitable for various roofing applications in the U.S.
Q2: Is the machine compatible with U.S. power standards?
Yes, the F5 Drip Edge Roll Forming Machine is designed to operate with 220/380V, 3-phase, 60 Hz power supply, fully compatible with U.S. industrial standards.
Q3: What is the production capacity of this machine?
The F5 Drip Edge Roll Forming Machine can produce up to 15 meters (50 feet) of drip edge per minute, ensuring high efficiency for large-scale projects.
Q4: Can the machine be customized for specific profiles?
Yes, the machine’s PLC control system supports custom programming, allowing for the production of unique drip edge profiles as per customer requirements.
Q5: Is technical support available in the United States?
Yes, technical support and training are available through authorized distributors and service partners in the U.S.
Q6: What optional features can be added to the machine?
Optional add-ons include automatic stackers, coil car tippers, remote PLC monitoring, and hydraulic uncoilers for enhanced automation and efficiency.
Q7: How long does installation take?
Installation typically takes 1–2 days, depending on site readiness and additional customization requirements.
Q8: How often should the cutting blades be replaced?
Cutting blades are durable but should be inspected monthly and replaced if signs of wear or reduced cutting precision are observed.
Q9: Can the machine produce other profiles?
With minor modifications and new roller sets, the machine can produce other edge profiles, making it a versatile investment.
Q10: What is the warranty period?
The F5 Drip Edge Roll Forming Machine comes with a 1-year warranty covering manufacturing defects and parts replacement.
The F5 Drip Edge Roll Forming Machine is a reliable, efficient, and versatile choice for producing high-quality drip edge profiles, meeting the needs of U.S.-based roofing professionals.
Frame and Construction
Heavy-duty steel frameHigh-precision welded structure for stabilityCorrosion-resistant coating for long-term durability
Heavy-duty steel frame
High-precision welded structure for stability
Corrosion-resistant coating for long-term durability

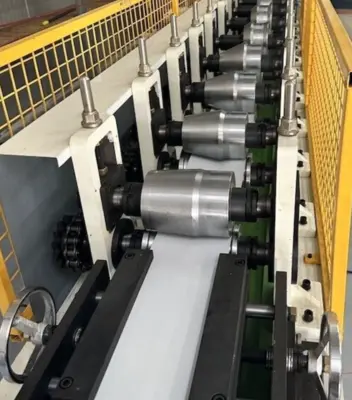

Roller Materials
High-grade, chrome-plated steel rollersHardened for extended lifespan and wear resistance
High-grade, chrome-plated steel rollers
Hardened for extended lifespan and wear resistance
Material Compatibility
Aluminum: 0.3–0.8 mm (11–30 gauge)Galvanized Steel: 0.3–0.6 mm (24–28 gauge)Pre-painted Steel: 0.4–0.7 mm (22–26 gauge)
Aluminum: 0.3–0.8 mm (11–30 gauge)
Galvanized Steel: 0.3–0.6 mm (24–28 gauge)
Pre-painted Steel: 0.4–0.7 mm (22–26 gauge)
Machine Dimensions
Length: 6.5 meters (21 feet)Width: 1.2 meters (4 feet)Height: 1.5 meters (5 feet)
Length: 6.5 meters (21 feet)
Width: 1.2 meters (4 feet)
Height: 1.5 meters (5 feet)
Power and Drive System
Main Motor: 7.5 kWHydraulic Cutting Motor: 4 kWVoltage: 220/380V, 3-phase, 60 Hz (USA-compatible)
Main Motor: 7.5 kW
Hydraulic Cutting Motor: 4 kW
Voltage: 220/380V, 3-phase, 60 Hz (USA-compatible)
Production Speed
Up to 15 meters per minute (50 feet per minute)
Up to 15 meters per minute (50 feet per minute)

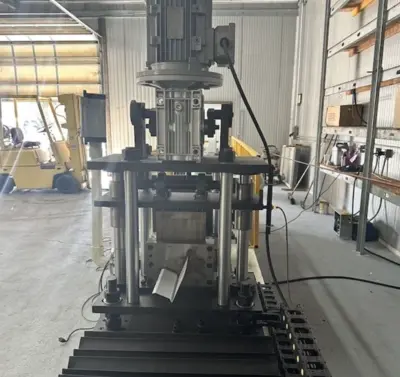

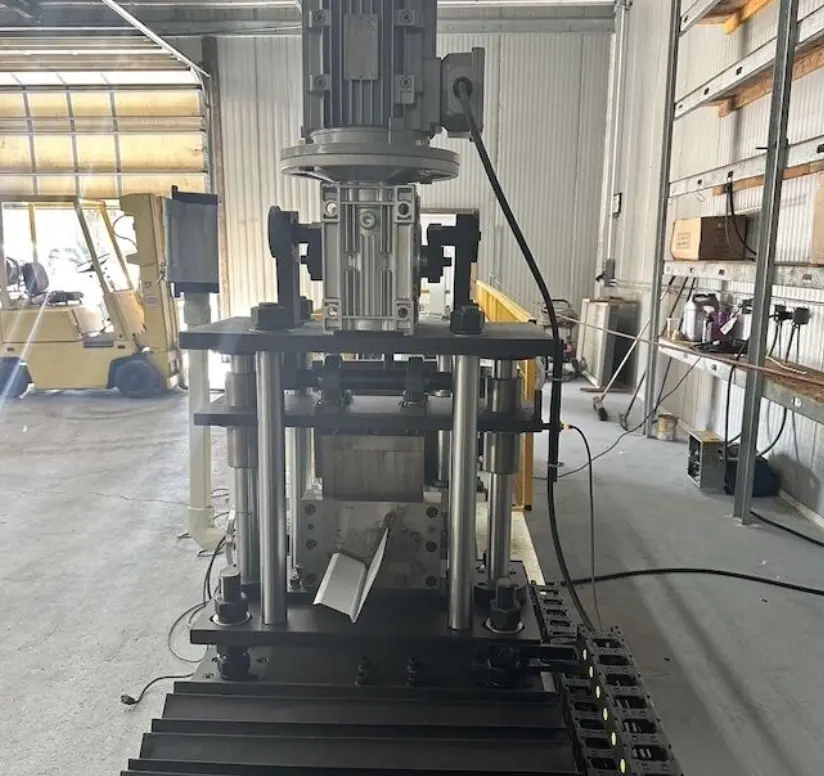

Cutting System
Hydraulic cutting with precision carbide bladesTolerance: ±0.5 mm
Hydraulic cutting with precision carbide blades
Tolerance: ±0.5 mm
Control System
PLC-based control system with a touchscreen interfaceRemote monitoring and diagnostic capabilitiesPre-programmed profiles for quick setup
PLC-based control system with a touchscreen interface
Remote monitoring and diagnostic capabilities
Pre-programmed profiles for quick setup
Safety Features
Emergency stop buttonsSafety covers for rollers and cutting unitsAutomated system shutoff in case of errors
Emergency stop buttons
Safety covers for rollers and cutting units
Automated system shutoff in case of errors
Optional Add-ons
Automatic stackerCoil car tippersRemote PLC monitoringUncoilers (manual and hydraulic options)
Automatic stacker
Coil car tippers
Remote PLC monitoring
Uncoilers (manual and hydraulic options)
