Shutter door roll forming machines are specialized equipment designed to produce high-quality shutter door profiles efficiently and consistently. These machines cater to industries like construction, manufacturing, and retail, offering a cost-effective and scalable solution for producing shutter doors. Below is a detailed guide, including specifications, features, and a question-and-answer section tailored for buyers in Morocco.
Machine Description

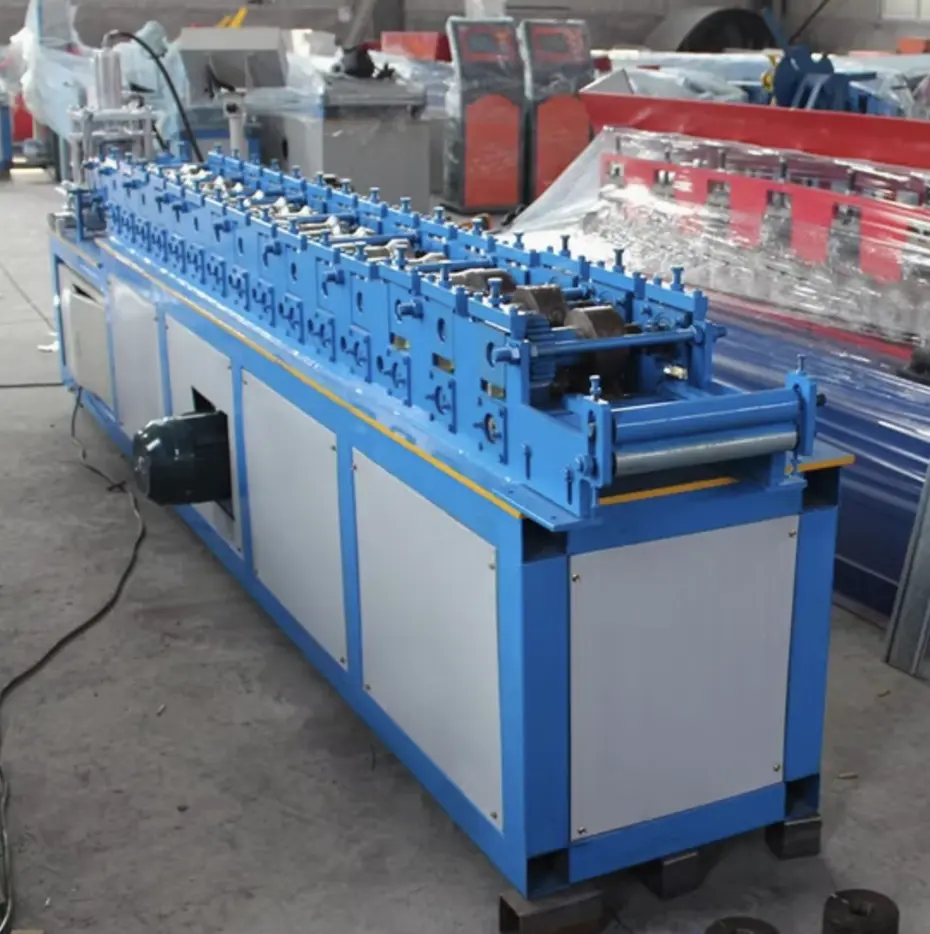

A shutter door roll forming machine is an automated system engineered to fabricate various types of shutter door profiles, including slats, bottom bars, and guide channels. The machine operates by feeding metal coils through a series of rollers, gradually shaping the material into the desired profile.
This machine is essential for producing durable, lightweight, and aesthetically pleasing shutter doors used in industrial, commercial, and residential applications. Shutter doors are widely utilized for security, space-saving functionality, and ease of use, making them a popular choice in Moroccan markets.
Key Specifications
Component
Specifications
Material
Galvanized steel, aluminum, stainless steel, or pre-painted steel
Material Thickness
0.3 mm – 1.5 mm
Coil Width
100 mm – 300 mm (customizable based on profile)
Rollers Material
High-grade GCr15 steel with heat treatment and hard chrome plating
Number of Rollers
12 – 20 rollers (depending on the profile complexity)
Forming Speed
10 m/min – 20 m/min
Drive System
Chain drive or gearbox
Cutting System
Hydraulic cutting with high precision and no burrs
Control System
PLC system with a touch screen for user-friendly operation
Power Supply
380V/50Hz (or customized for Morocco’s power grid)
Motor Power
5.5 kW – 11 kW
Hydraulic Station Power
4 kW
Machine Dimensions
7 m (L) x 1.2 m (W) x 1.5 m (H)
Weight
Approx. 5 – 8 tons
Optional Add-ons
Decoiler (manual or hydraulic), stacker, embossing rollers, punching units
Features
High Efficiency
The machine operates at a high forming speed, ensuring quick production cycles to meet market demand.
Precision Engineering
With advanced roller designs and a hydraulic cutting system, the machine delivers precise profiles with consistent quality.
Durable Construction
Made from heavy-duty steel frames, the machine offers stability and a long service life.
User-Friendly Interface
The PLC system enables easy programming and control, reducing operator training time.
Customizable Profiles
Shutter door roll forming machines can be tailored to produce a variety of profiles for specific applications.
Low Maintenance
Designed for durability and reliability, the machine requires minimal maintenance, lowering operational costs.
Market Relevance in Morocco
In Morocco, shutter doors are widely used for securing shops, garages, warehouses, and industrial facilities. The increasing urbanization and development of retail spaces make the shutter door roll forming machine a valuable investment for manufacturers in the region.
Setup and Installation
Site Preparation
Ensure a leveled and spacious area with proper power supply and ventilation.
Machine Assembly
Follow the manufacturer’s manual to assemble the machine components.
Calibration
Adjust the rollers and cutting system to match the profile specifications.
Test Runs
Conduct test runs with scrap material to ensure smooth operation and precision.
Operator Training
Train operators on machine control and basic troubleshooting.
Maintenance Tips
Regularly inspect and clean rollers for smooth operation.
Lubricate chains and bearings as per the maintenance schedule.
Check hydraulic systems for leaks and maintain oil levels.
Ensure all electrical connections are secure and operational.
Question and Answer
Q1: What materials can the machine handle?
A: The machine can process galvanized steel, aluminum, stainless steel, and pre-painted steel.
Q2: Is the machine suitable for Moroccan power standards?
A: Yes, the machine can be customized for Morocco’s 380V/50Hz power grid.
Q3: Can the machine produce multiple profiles?
A: Yes, with slight modifications and interchangeable rollers, the machine can produce various shutter door profiles.
Q4: What is the average production speed?
A: The machine operates at 10 m/min to 20 m/min, depending on the profile complexity.
Q5: What optional add-ons are available?
A: Optional extras include hydraulic decoilers, automatic stackers, embossing rollers, and punching units.
Q6: How long does it take to install the machine?
A: Installation typically takes 2–3 days, including calibration and test runs.
Q7: What is the machine’s warranty?
A: Most manufacturers offer a 1–2 year warranty on key components.
Q8: How can I ensure profile quality?
A: Regular maintenance of rollers and precise calibration ensure consistent profile quality.
