For the Egyptian market, a roller shutter door roll forming machine should be tailored to meet specific local requirements and demands. Here's a detailed description and specification set for such a machine, designed to cater to the needs of the Egyptian market.
Description

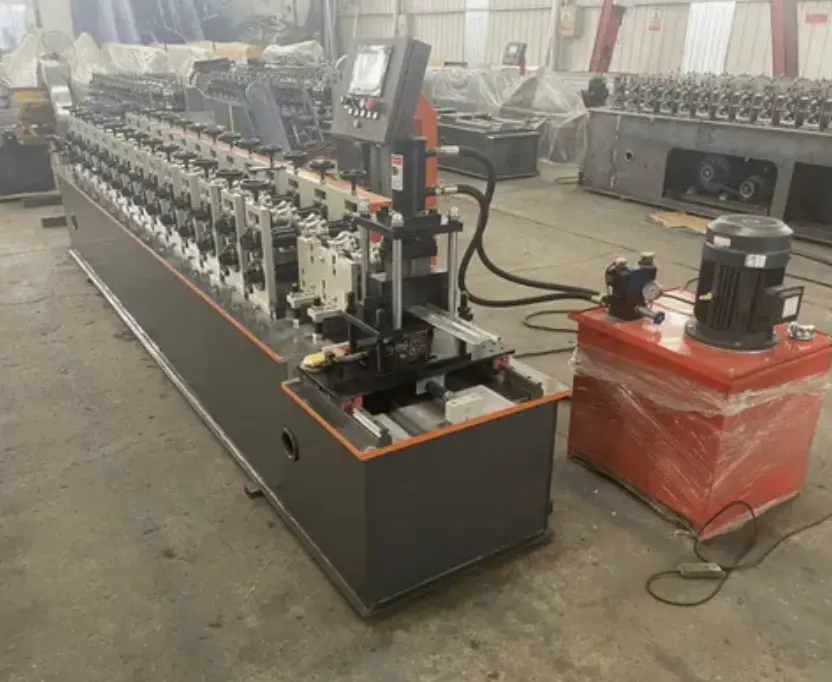

The roller shutter door roll forming machine is a highly efficient and durable machine crafted to produce roller shutter door panels commonly used in commercial, industrial, and residential properties. It’s designed with a robust structure to ensure stability, precision, and a high production rate. The machine’s automation is ideal for the Egyptian market, where efficiency and reliability are key for large-scale production. This machine is suited for materials commonly used in Egypt, such as galvanized steel and aluminum.
Key Features
High Production Speed: Designed to meet the demand for quick production, with adjustable speed control to suit different project requirements.
Ease of Operation: Simple control panel, often with a PLC control system that can be easily managed by operators with minimal training.
Durable Structure: Made with high-grade steel, the machine frame and rollers are built to withstand long hours of continuous operation, ideal for the high temperatures often seen in Egypt.
Customizable Profiles: Can be customized to produce different shutter profiles as per customer requirements.
Automatic Cutting: Hydraulic cutting system to cut panels precisely according to set lengths, ensuring minimal waste.
Power Supply Compatibility: Available in both 380V and 220V power supply configurations to match local power requirements.
Additional Considerations for Egyptian Market
Local Warranty and Support: Availability of parts and technical support within Egypt to ensure reduced downtime.
Climate Adaptation: Machines should be adapted for higher operating temperatures to prevent overheating during peak production.
This machine can be tailored further to meet specific buyer needs, ensuring efficient production and high-quality shutter doors suited for various applications in Egypt.
Material Width: Typically 100-300mm (can be customized based on profile requirements).
Material Thickness: 0.5mm to 1.2mm (for galvanized steel, aluminum, or pre-painted steel).

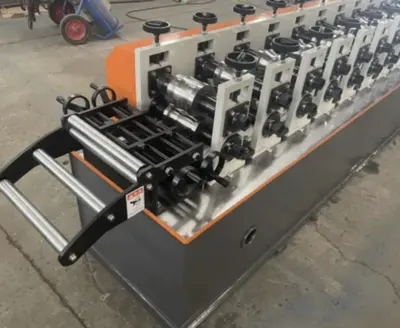

Forming Stations: 12-18 forming rollers for precise shaping.
Roller Material: High-grade 45# steel with chrome coating for durability and corrosion resistance.
Production Speed: 8-15 meters per minute, adjustable.

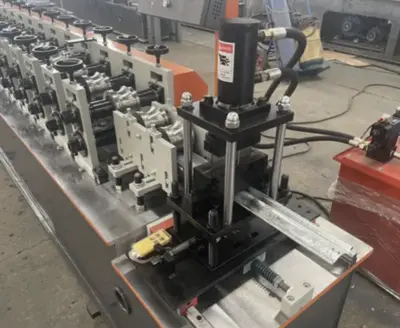

Cutting System: Hydraulic cutting system with a tolerance of ±1.5mm.
Control System: PLC control with touch screen, brand options include Siemens, Delta, or Mitsubishi.
Power Requirements: Available in 380V, 50Hz, or 220V, 60Hz configurations to align with Egyptian power standards.
Motor Power: Main motor power ranges from 5.5 kW to 7.5 kW, and hydraulic motor power from 3 kW to 4 kW.
Dimensions: 7,500 mm (L) x 1,000 mm (W) x 1,200 mm (H).
Weight: Approximately 4,500 kg, depending on configuration and materials.
