Coil Material
GI/GL
Coil Thickness
0.6~1.2MM
Coil Width
---
Speed
15-20M/MIN
Voltage
As Customer's Request
Roll Forming Unit
Roller Station
12
Driving Motor
5.5KW
Shaft Diameter
50mm Solid
Shaft Material
45# Hard Steel
Roller Material
Cr12
Under Frame
Square Tube Welded
Sidewall Thickness
Memorial Archway Type
Transmission
Gear
Feeding Device
1 Set
Cutting Unit
Cutting Type
Hydraulic Non-stop TO Cut
Hydraulic Pump Power
3KW
Cutting Die Material
Cr12Mov
Hydraulic Oil
46# Abrade Oil
Control Unit
Control Method
PLC
Length Control
Encoder
Operation
Touch Screen
Language
Chinese & English
Auxilliary Device
---
1.5T Manual Decoiler
---
Exit Rack

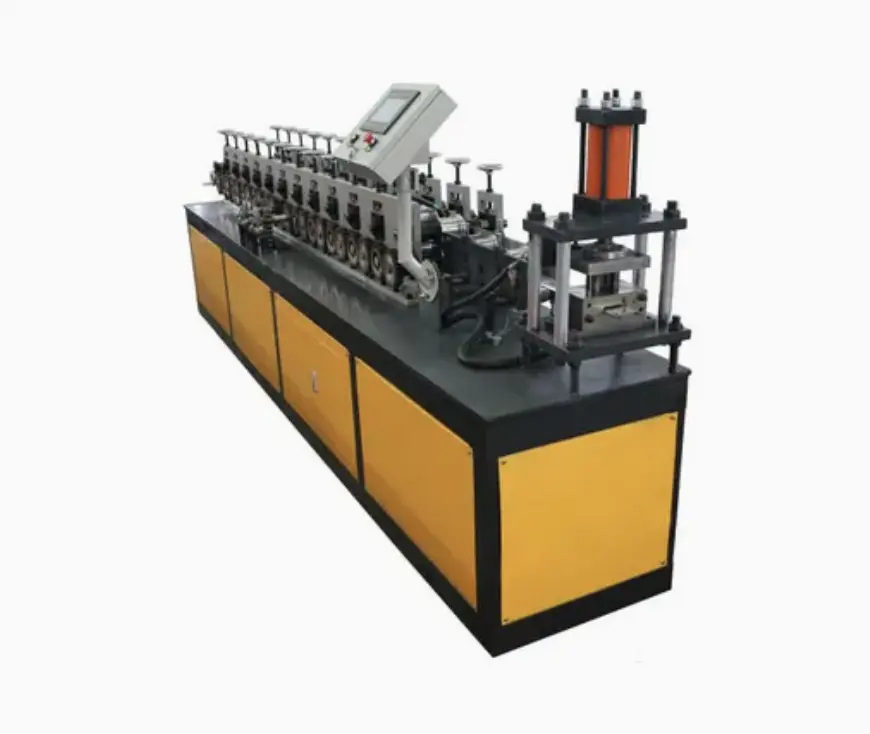

A Slat Roller Shutter Door Roll Forming Machine is specialized equipment designed for manufacturing the slats used in roller shutter doors. These machines typically use a roll forming process to shape metal into the interlocking slats that make up roller shutters, commonly used for security purposes on doors and windows.
Key Features
Automatic Operation: Many machines are automated, which allows for consistent, high-quality slats with minimal manual intervention.
Adjustable Rollers: Rollers are often adjustable to create different slat designs, sizes, and profiles depending on specific needs.
Durable Construction: Made from high-strength steel, these machines are built to withstand heavy-duty production.
Customizable Slat Width: Most machines allow customization for various widths, accommodating diverse shutter designs.
High Production Speed: These machines can typically produce slats at a fast rate, improving productivity.
Applications
Commercial and Industrial Security Shutters: Slats produced by these machines are widely used in commercial and industrial sectors for secure rolling shutter doors.
Residential Garage Doors: Also common in residential applications, where they form the basis of secure, durable garage doors.
