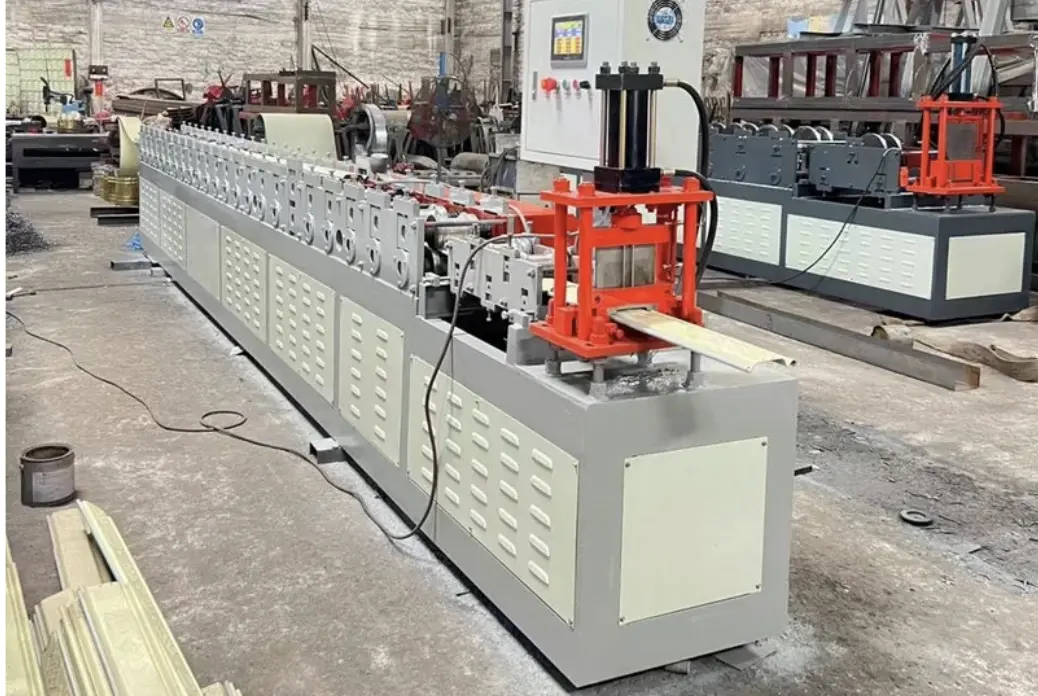

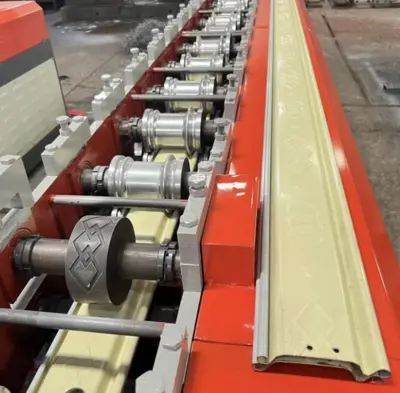

Roller shutter door profile roll forming machine
1.Can roll forming different kinds of shutter door slat with speed 25m/min.
2.Customized according to your shutter door slat profile drawing.
3.After roll forming, here will have a punching system. the hole design will follow your request.
4.The surface of shutter door slat will very smooth and beautiful without any scrtached on surface.
5.On the shutter door slat surface, also can embossing different kind pattern or press logo as your request.
Decoiler
Capacity:5 tons
2
Material
Steel Coil
3
Thickness
0.3-1.5mm
4
Transmission
Chain/Gear/Gearbox
5
Speed
25m/min
6
Roller
Steel with quenched treatment,chromed on the surface
7
Shaft
steel with tempering treatment
8
Cutting type
Hydraulic cutting
9
Cutting material
Cr12 with quenched treatment Hardness58°-62°
10
Welding
Automatic spot welding
11
Control system
PLC
12
Electric brand
Delta,Siemens
13
Voltage
380V,50HZ,3PH(or as customers' request)
