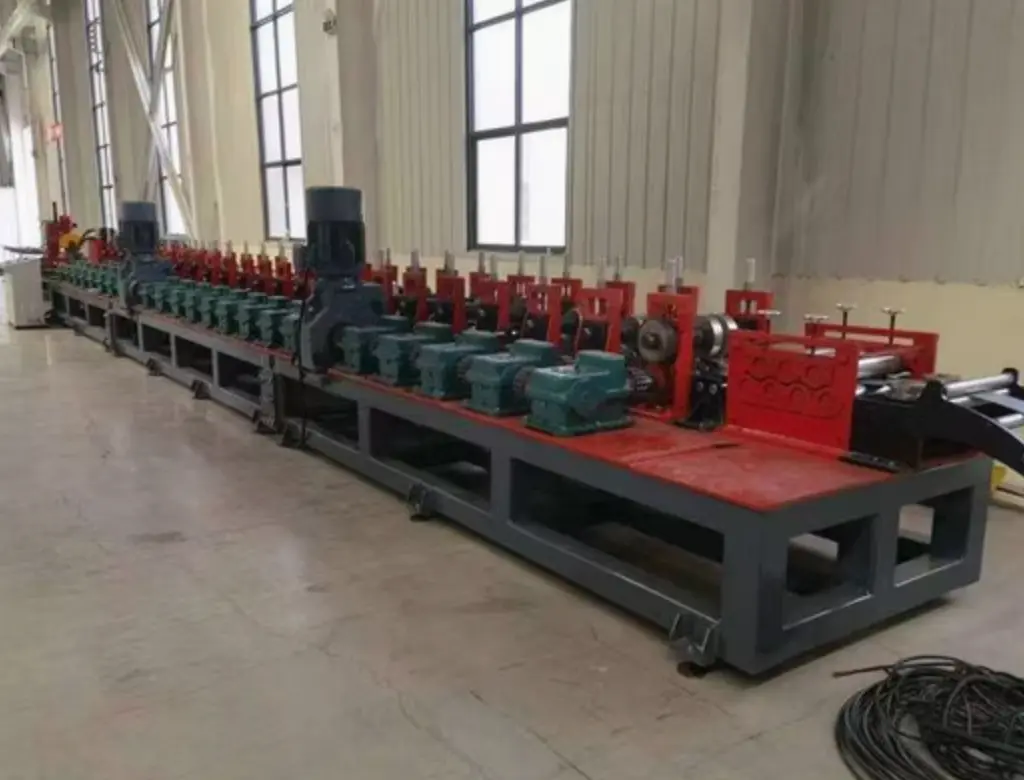

The Strut Channel Roll Forming Machine in Albania is a high-accuracy production line engineered to manufacture various U, C, or slotted channel profiles used in electrical support systems, solar panel structures, and industrial framing.
These versatile channels are essential in electrical installations, HVAC duct supports, cable tray frameworks, mechanical systems, and renewable-energy mounting structures. With Albania’s growing industrial and energy infrastructure, local production of strut channels offers a competitive edge in quality and lead time.
At Machine Matcher, every strut channel roll forming machine is custom-built to your profile drawing, material type, and power configuration. All machines are brand-new, CE-certified, and designed for long-term precision with PLC automation, hydraulic punching, and servo feeding for fast, repeatable production.
Machine Matcher supplies complete turnkey systems — including uncoilers, punching units, roll forming stations, hydraulic cutting, and automatic stackers — supported by global 24/7 technical service.
Machine Technical Specifications
Specification
Details
Machine Type:
Strut Channel Roll Forming Machine
Production Speed:
10–25 m/min (adjustable depending on punching type)
Material Thickness Range:
1.5–2.5 mm (optional up to 3.0 mm)
Material Width Range:
100–250 mm (customizable)
Material Types:
Galvanized Steel (GI), Mild Steel (MS), Stainless Steel, Aluminum
Material Yield Strength:
Up to 550 MPa
Roller Material:
GCr15 bearing steel, hardened and chrome-plated
Roller Surface Treatment:
Hard chrome coating and precision grinding
Number of Forming Stations:
14–24 stations (profile-dependent)
Roller Shaft Diameter:
70–90 mm
Shaft Material:
45# high-strength steel
Main Drive Type:
Gearbox or chain drive
Power (Albania):
400 V / 50 Hz / 3 Phase
Motor Power:
15–30 kW
Cutting Method:
Hydraulic post-cut or flying shear
Blade Material:
Cr12MoV, heat-treated for long life
Control Type:
PLC with HMI touchscreen (Siemens / Delta / Mitsubishi)
Operating Mode:
Fully automatic with manual option
De-coiling System:
3–10 ton manual or hydraulic uncoiler
Punching/Notching System:
Hydraulic or servo punching press, programmable dies
Machine Frame:
400–450 H-beam welded structure
Thickness of Frame Steel:
16–20 mm
Profile Shape:
Standard 41×41, 41×21, 41×62, or custom
Profile Width and Depth:
Width 21–62 mm, height 41 mm
Length Tolerance:
±1 mm/m
Safety Features:
Full enclosure, E-stop, overload protection
Protective Covers/Guards:
Transparent safety covers
Emergency Stop Button:
Installed at entry, exit, and control panel
Overload Protection System:
Built into main motor and hydraulic unit
Optional Add-ons and Upgrades
Servo feeding and measuring system
Hydraulic punching and embossing stations
Automatic stacker and counting system
Coil car and hydraulic coil tipper
Remote PLC monitoring and diagnostics
Tooling for slotted or unslotted channel
Dual-size roll tooling system (quick-change cassette)
Inline labeling and marking device
Automatic lubrication and maintenance reminders
Sound-insulated safety enclosure
All strut channel lines are built new, tested under load, and shipped with test video, wiring diagrams, and installation guides.
Strut Channel Profile Description
Strut channels are structural metal framing systems designed for supporting mechanical, electrical, and plumbing installations. They are also used in solar mounting systems, racking frameworks, and industrial shelving.
Common Types
Plain Channel (Unslotted) – Used for heavy structural applications.
Slotted Channel – For flexible bolt and bracket mounting.
Back-to-Back Channel – For double-strength installations.
Solar Mounting Channel – For panel support and frame assembly.
Typical Dimensions
Width: 21 mm – 62 mm
Height: 41 mm
Thickness: 1.5–2.5 mm
Length: 2.4–6.0 m (programmable)
Material Options
Galvanized Steel (GI): Economical and corrosion-resistant.
Hot-dip Galvanized Steel: For outdoor and solar applications.
Stainless Steel: For industrial and chemical environments.
Aluminum: Lightweight and non-corrosive.
Industries and Applications in Albania
The Albanian market is seeing strong growth in infrastructure, solar energy, and electrical systems, all of which rely heavily on strut channel framing.
Key Sectors Using Strut Channels
Electrical contracting and cable management
Solar power mounting structures
HVAC and mechanical installations
Industrial and warehouse shelving systems
Construction and commercial fit-outs
Transportation and logistics infrastructure
With expanding industrial parks in Tirana, Durrës, and Elbasan, local manufacturers can benefit from domestic channel production to reduce import costs and shorten project delivery times.
Machine Matcher’s strut channel lines help Albanian companies achieve international-grade precision with local cost advantages.
Setup and Installation
Each machine is shipped fully assembled, calibrated, and tested for plug-and-play installation.
Installation Steps:
Place the machine on a leveled concrete base.
Connect hydraulic and electrical systems.
Load coil and test feed alignment.
Adjust roller gaps and calibrate PLC sensors.
Run trial production for fine-tuning.
Machine Matcher provides:
Remote installation and commissioning support
Optional on-site technician setup in Albania or nearby regions
Operator and maintenance training (manual and video tutorials)
Maintenance and Support
Regular preventive maintenance ensures continuous precision forming.
Daily
Clean rollers and guides.
Check coil alignment and punching accuracy.
Weekly
Lubricate bearings and chain drives.
Check hydraulic oil levels.
Monthly
Tighten bolts and inspect sensors.
Calibrate PLC encoder readings.
Annually
Re-align roller stations.
Replace blades and hydraulic seals.
Conduct full safety inspection.
Machine Matcher offers:
Spare parts (rollers, shafts, blades, bearings)
Remote diagnostics and software updates
Preventive maintenance service plans
24-hour global technical support
Machine Pricing
Pricing varies by automation level, punching configuration, and output speed.
Model Type
Configuration
Approx. Price (USD)
Basic Model
Manual uncoiler, basic PLC, post-cut
$85,000 – $120,000
Mid-Range Model
Hydraulic uncoiler, servo feeder, auto punching
$120,000 – $180,000
High-End Model
Full servo line, dual-tray tooling, automatic stacker
$180,000 – $280,000+
All machines include:
Custom profile design and drawing confirmation
Pre-shipment testing and inspection report
Packaging and export documentation
Optional setup and operator training
Countries & Markets Served
Machine Matcher supplies strut channel roll forming machines across:
Albania
Kosovo
North Macedonia
Montenegro
Greece
Italy
Turkey
United Kingdom and Europe
Each system is ISO and CE-certified, compatible with local voltage and control standards, and backed by regional technical support.
Why Choose Machine Matcher
100% new machines custom-engineered for your channel profile
CE-certified manufacturing
24/7 global technical and PLC support
Pre-delivery inspection with video report
Local service teams in Europe
OEM and aftermarket spare parts
Fast delivery and export documentation handling
Decades of roll forming industry expertise
Machine Matcher helps you build reliable, scalable strut channel production lines that meet European quality standards at local operating costs.
Frequently Asked Questions
Q1: What is a strut channel roll forming machine?
A: It’s a continuous production line that shapes steel coils into strut channel profiles used in construction, solar, and electrical framing systems.
Q2: Can one machine produce multiple channel sizes?
A: Yes — by using adjustable tooling or interchangeable cassettes, you can make various channel widths and slot patterns.
Q3: What materials are best for Albania’s market?
A: Pre-galvanized or hot-dip galvanized steel is most common for indoor and outdoor projects, offering strength and corrosion resistance.
Q4: How fast can the machine produce?
A: Standard speeds range from 10–25 meters per minute, depending on punching type and material thickness.
Q5: How long does installation take?
A: Typically 3–5 days, including electrical setup and operator training.
Q6: What after-sales support is available?
A: Machine Matcher provides remote PLC access, spare parts supply, maintenance contracts, and on-site service.
