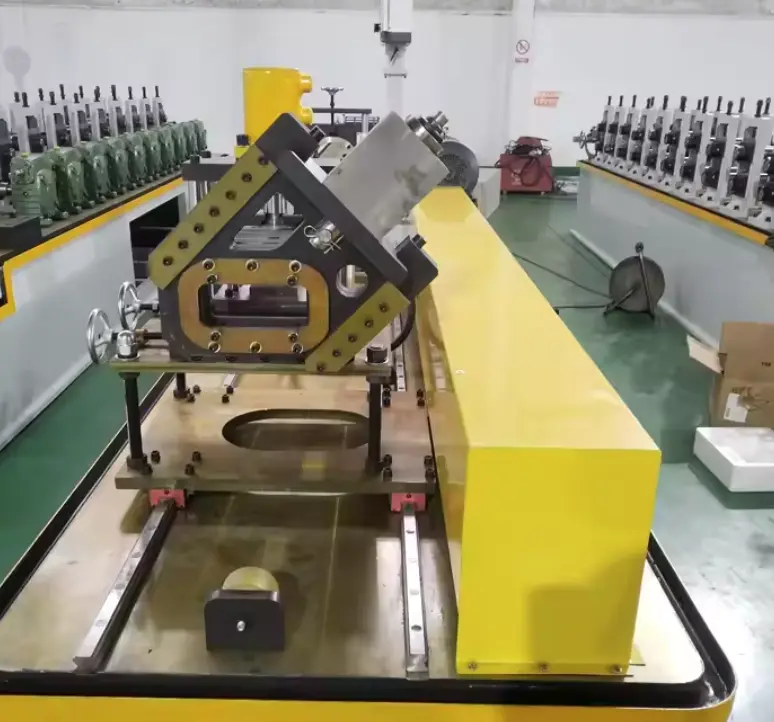

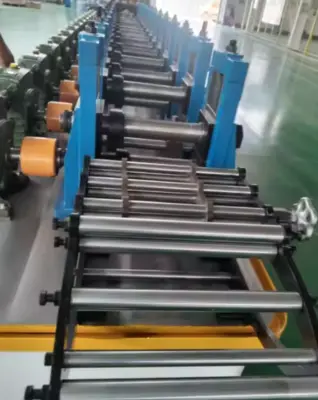

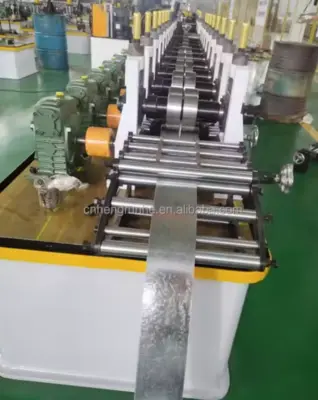

Suspended Ceiling U Channel Roll Forming Machine – UAE Market Edition
High-Precision Forming Equipment for Lightweight Steel Framing
Product Overview
The Suspended Ceiling U Channel Roll Forming Machine is a precision-engineered solution designed for the fast, efficient production of U-shaped ceiling support channels, widely used in lightweight ceiling framing systems across commercial, residential, and industrial construction projects in the United Arab Emirates (UAE). Built to meet the performance expectations of UAE’s booming construction and interior fit-out sectors, this roll forming machine is fully automated, energy-efficient, and capable of continuous, high-speed production with excellent dimensional accuracy.
Whether you’re producing U channels for suspended ceiling grids in office buildings in Dubai, hospitality spaces in Abu Dhabi, or residential developments in Sharjah, this machine ensures consistent output, reduced labor, and long-term reliability.
Machine Technical Specifications
Feature
Specification
Machine Type
Suspended Ceiling U Channel Roll Forming Machine
Production Speed
30–45 meters per minute
Material Thickness Range
0.3 mm – 0.7 mm
Material Width Range
80 mm – 160 mm
Material Types
Galvanized Steel, Aluminum, Pre-painted Steel
Material Yield Strength
Up to 350 MPa (51 ksi)
Roller Material
High-grade GCr15 (chromium bearing steel)
Roller Surface Treatment
Hard chrome-plated
Number of Forming Stations
10–16 (customizable)
Roller Shaft Diameter
40–50 mm
Shaft Material
Solid 45# steel, precision-ground
Main Drive Type
Chain or Gear Drive
Power (UAE specific)
380V, 3-Phase, 50Hz
Motor Power
4–5.5 kW (depending on design)
Cutting Method
Hydraulic post-cut system
Blade Material
Cr12Mov (heat treated, HRC 58–62)
Control Type
PLC (Panasonic/Siemens optional)
Operating Mode
Fully Automatic with Touchscreen HMI
De-coiling System
Manual or hydraulic de-coiler (3T–5T optional)
Punching/Notching System
Optional hydraulic or servo punching
Machine Frame
Welded 300H steel structure
Thickness of Frame Steel
16–20 mm
Profile Shape
U Channel
Profile Width and Depth
Customizable (e.g., 38x25 mm, 50x19 mm, etc.)
Length Tolerance
±1.0 mm
Safety Features
Protective Covers, Emergency Stop, Overload Protection
Industries Served
This machine is essential for companies involved in:
Interior Fit-Out & Partitioning
Drywall & Ceiling Contractors
Commercial Building Construction
Prefab Building Fabrication
Warehouse & Retail Construction
Applications in Industry:
Producing U main channels and furring carriers for T-grid suspended ceiling systems
Lightweight steel ceiling grid framing
Hidden ceiling support channels in MEP installations
Material Gauge & Strength
Most commonly used materials include:
Galvanized Steel (G90 or G60)
Pre-painted GI or Aluminum Coils
Standard Gauge: 0.35 mm to 0.6 mm
Yield Strength Range: 230–350 MPa (33–51 ksi)
Pricing Information
Prices start from: $36,000 USD depending on:
Required punching units
Number of forming stations
Motor and control brand
Coil handling equipment
Note: Final pricing is determined by customizations, profile sizes, and optional systems. Please contact us with profile drawings and requirements for a tailored quote.
Email drawings and specifications to: [email protected]
UAE Delivery & Customization
All machines are new and custom-built, based on your specific profile and output needs, with delivery available throughout the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, and beyond.
Highlighted Advantages & Unique Selling Points (USPs)
USP
Buyer Benefit
Custom Profile Molds
Match any U channel ceiling spec without costly tooling changes
High-Speed Output
Increases daily productivity and reduces labor costs
Chrome-Plated Rollers
Reduces maintenance and ensures smooth finish on output profile
Fully Automated PLC Control
Minimizes operator error and enables easy length adjustments
Precision Hydraulic Cutting
Clean, burr-free cuts and reduced wastage
Energy-Efficient Motor Design
Lower operating costs for UAE industrial environments
Optional Servo Punching
Add slots or notches in-line without secondary processing
Customization Options
Variable U profile sizing sets
Servo punching modules (for custom holes or slots)
Automatic stacking systems
Coil car + hydraulic uncoilers
Remote monitoring and PLC upgrades
Color-coded and branded panel exteriors
Warranty & Support
1-Year Warranty from date of dispatch
Spare parts and repair support available
Installation and training packages optional
Frequently Asked Questions (FAQ)
Q1: What is the lead time for this machine in the UAE?
A: Standard production and shipping time is 45–60 days, depending on customization.
Q2: Can I run different U channel sizes on one machine?
A: Yes, with interchangeable tooling sets or an adjustable design.
Q3: Is the machine easy to operate for first-time users?
A: Absolutely. It includes touchscreen PLC control with multi-language support and a full operator manual.
Q4: What kind of maintenance is required?
A: Regular lubrication, bolt tightening, and checking roller alignment monthly. We provide full documentation and remote support.
Q5: Does Machine Matcher offer on-site setup in the UAE?
A: Yes, installation and operator training are available across all Emirates.
For more information or a personalized quote, email your requirements and profile drawings to
[email protected]
Machine Matcher – Your trusted source for ceiling grid roll forming machines, precision-engineered for performance in the UAE.
