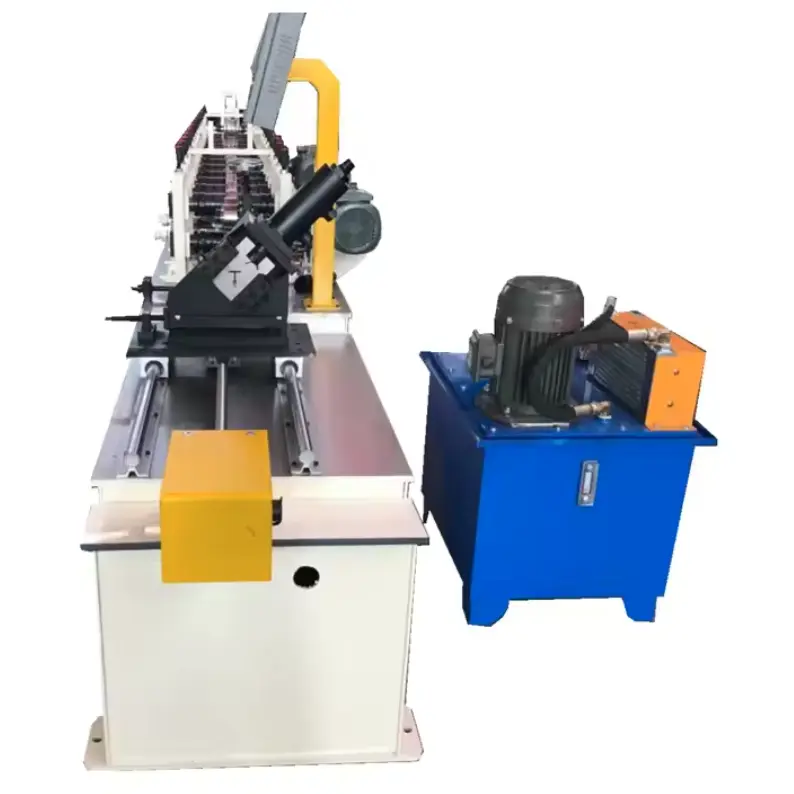

Suspended Ceiling Roll Forming Machine – UAE Market
The Suspended Ceiling Roll Forming Machine is a precision-engineered system designed for the efficient and high-speed production of lightweight metal profiles used in suspended or false ceiling systems. These profiles are critical in modern commercial, industrial, and residential construction, providing the framework for ceiling tiles and acoustic panels.
This machine is ideal for manufacturers and contractors in the UAE construction sector, where demand for durable, corrosion-resistant, and precisely formed suspended ceiling systems continues to grow. Whether you are setting up a new factory in Sharjah or expanding production in Dubai or Abu Dhabi, this fully automatic line delivers exceptional performance, tailored to your specifications.
Machine Description
This fully automated roll forming system is designed to produce standard suspended ceiling profiles such as T-bars, main runners, cross tees, and wall angles. With a compact footprint and robust construction, the machine operates reliably even in the demanding conditions of the UAE. High-precision rollers, accurate cutting, and fast production speeds ensure minimal material waste and consistent output.
This machine supports galvanized steel and pre-painted steel coils within a standard gauge range. Optional features like servo notching and hydraulic punching can be added to match your specific profile drawing or ceiling grid system.
Industry Applications in the UAE
This machine serves manufacturers and suppliers producing ceiling profiles for:
Commercial buildings (offices, malls, airports)
Hospitals and clean rooms
Educational institutions
Industrial and logistics facilities
Residential high-rise buildings
Suspended ceiling systems are in high demand throughout the UAE due to their acoustic insulation properties, easy maintenance access, and modern aesthetic appeal.
Machine Technical Specifications
Specification
Details
Machine Type
Suspended Ceiling Roll Forming Machine
Production Speed
30–45 meters per minute
Material Thickness Range
0.3 – 0.6 mm
Material Width Range
50 – 300 mm (customizable)
Material Types
Galvanized Steel, Pre-painted Steel
Material Yield Strength
Up to 280 MPa
Roller Material
GCr15 steel, heat-treated and hard chrome plated
Roller Surface Treatment
Polished + Hard Chrome Coated
Number of Forming Stations
12–20 stations depending on profile
Roller Shaft Diameter
40–60 mm
Shaft Material
High-grade steel, precision ground
Main Drive Type
Chain Drive or Gearbox Drive
Power (UAE Specification)
380V / 50Hz / 3-phase
Motor Power
5.5 – 7.5 kW
Cutting Method
Hydraulic Flying Cutting
Blade Material
Cr12MoV (heat treated)
Control Type
PLC (Siemens, Delta, or Mitsubishi)
Operating Mode
Fully Automatic with Touch Screen Interface
De-coiling System
Manual or Hydraulic Uncoiler (3–5 tons)
Punching/Notching System
Optional hydraulic unit or servo notching
Machine Frame
Welded steel structure
Thickness of Frame Steel
16–20 mm
Profile Shape
T-grid, Wall Angle, Cross Tee, Main Tee, etc.
Profile Width and Depth
Customizable – based on provided drawing
Length Tolerance
±1.0 mm
Safety Features
Emergency Stop, Overload Protection, Guards
Protective Covers/Guards
Included for all moving parts
Emergency Stop Button
Standard on control panel
Overload Protection System
Built-in
Price Range
Prices start from: USD $35,000
Average price range: USD $35,000 – $65,000 depending on configuration
What Affects the Final Price?
Number of forming stations
Profile complexity and width
Punching and notching unit inclusion
Type and size of uncoiler
Motor and PLC brand preferences
Additional safety enclosures or automation level
To receive an accurate quote tailored to your requirements, please send your profile drawing, material specifications, power supply info, and delivery location to: [email protected]
Location & Delivery
All machines are new and custom-built according to your specifications. Delivery is available throughout the UAE, including:
Dubai
Abu Dhabi
Sharjah
Ajman, Fujairah, Ras Al Khaimah, and Umm Al Quwain
Machines are shipped directly from our manufacturing partners with full installation guidance and remote or on-site setup support.
Warranty & Support
1-Year Warranty (from dispatch date)
Remote diagnostics and spare parts support
Optional annual maintenance packages available
Frequently Asked Questions (FAQ)
Q1: Can the machine produce multiple ceiling profile types?
A: Yes, with interchangeable tooling or additional rollers, the machine can produce different T-grid and wall angle profiles.
Q2: How long does it take to build and ship this machine to the UAE?
A: Standard production time is 30–60 days. Shipping to UAE ports typically takes 2–3 weeks depending on location.
Q3: Can I customize the profile shape to match my ceiling system?
A: Absolutely. We can fully tailor the profile based on your drawing, including dimensions, punching, and embossing options.
Q4: Is installation support provided?
A: Yes. We offer both on-site and remote setup support. Installation manuals and video guides are included.
Q5: What maintenance is required?
A: Routine lubrication, roller cleaning, and bolt tightening are key. We also offer spare parts and service support.
Contact & Ordering
To start your order or request a quote:
Email: [email protected]
Location: Serving customers across the UAE
Website: www.machinematcher.com
Let Machine Matcher help you deliver reliable, high-performance ceiling profile solutions across the UAE.
