Ceiling battens are essential in construction, particularly in ceiling frameworks, offering a durable and lightweight solution for suspended ceilings. A Ceiling Batten Roll Forming Machine is designed to efficiently produce high-quality ceiling battens at scale, ensuring consistent performance and dimensional accuracy.
Machine Description

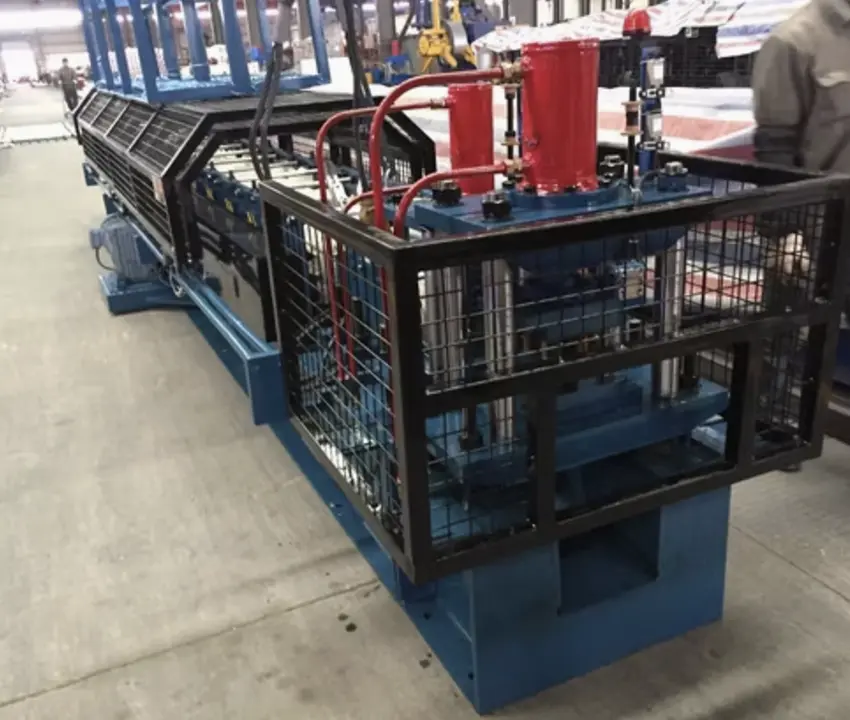

A Ceiling Batten Roll Forming Machine is a specialized industrial equipment used to manufacture ceiling battens from materials such as galvanized steel or aluminum. The machine is engineered for high-speed production, ensuring precision and consistency across batches. Its modular design allows customization to accommodate various profile sizes, gauges, and materials.
This machine typically includes automatic feeding systems, hydraulic cutting mechanisms, and a user-friendly PLC control system for easy operation. With adjustable settings, manufacturers can produce battens in different dimensions and styles suitable for diverse ceiling applications.
Applications
Used in constructing suspended ceiling frameworks
Provides structural support for plasterboards and ceiling panels
Widely employed in residential, commercial, and industrial building projects
Benefits of Using a Ceiling Batten Roll Forming Machine
High Precision: Consistently accurate profiles with minimal waste
Efficiency: Automated processes for faster production
Durability: High-quality components ensure long operational life
Customization: Adjustable settings for different profile sizes
Cost-Effective: Reduces material waste and labor costs
Question and Answer Section
Q1: What materials can the Ceiling Batten Roll Forming Machine process?
A1: The machine can process galvanized steel and aluminum, with thicknesses ranging from 0.3mm to 0.8mm. Other materials may be supported upon customization.
Q2: What is the production speed of the machine?
A2: The machine operates at a standard speed of 15-25 meters per minute, with high-speed options available up to 40 meters per minute.
Q3: Can the machine produce different profile sizes?
A3: Yes, the machine's settings are adjustable to produce various ceiling batten sizes and styles.
Q4: Is it compatible with U.S. power standards?
A4: Yes, the machine can be configured for 220V or 380V, 50Hz or 60Hz, to meet U.S. electrical standards.
Q5: What optional features are available?
A5: Optional features include hydraulic decoilers, pre-punching systems for holes, and automated stacking systems.
Q6: How does the machine ensure profile accuracy?
A6: The machine uses high-grade rollers, a precise hydraulic cutting system, and a PLC control system to maintain accuracy and consistency.
Q7: Is maintenance required, and how often?
A7: Regular maintenance, including lubrication and inspection of rollers and cutting blades, is recommended every 3-6 months to ensure optimal performance.
Q8: What industries typically use ceiling battens?
A8: Ceiling battens are primarily used in residential, commercial, and industrial construction projects.
Material:Galvanized steel, aluminumThickness: 0.3mm - 0.8mmWidth: As per profile design
Galvanized steel, aluminum
Thickness: 0.3mm - 0.8mm
Width: As per profile design
Rollers:Material: High-grade GCr15 steel with chrome platingNumber of roller stations: 10-20 (depending on profile complexity)
Material: High-grade GCr15 steel with chrome plating
Number of roller stations: 10-20 (depending on profile complexity)
Frame:Structure: Welded steel with stress-relief treatmentFrame thickness: Robust design to minimize vibrations
Structure: Welded steel with stress-relief treatment
Frame thickness: Robust design to minimize vibrations
Motor & Drive:Main motor: 7.5 kW (customizable)Drive type: Chain or gearbox
Main motor: 7.5 kW (customizable)
Drive type: Chain or gearbox
Cutting System:Type: Hydraulic cuttingBlade material: Cr12 steel with heat treatment
Type: Hydraulic cutting
Blade material: Cr12 steel with heat treatment
Control System:PLC brand: Siemens or MitsubishiInterface: Touchscreen for easy operationFeatures: Profile length adjustment, batch counting
PLC brand: Siemens or Mitsubishi
Interface: Touchscreen for easy operation
Features: Profile length adjustment, batch counting
Machine Dimensions:Length: 8-12 metersWidth: 1.5 metersHeight: 1.2 meters
Length: 8-12 meters
Width: 1.5 meters
Height: 1.2 meters
Production Speed:Standard: 15-25 meters per minuteHigh-speed option: Up to 40 meters per minute
Standard: 15-25 meters per minute
High-speed option: Up to 40 meters per minute
Power Supply:Voltage: 220V/380V, 50Hz/60HzCustomizable for U.S. standards
Voltage: 220V/380V, 50Hz/60Hz
Customizable for U.S. standards
Optional Features:Decoiler (manual or hydraulic)Pre-punching system for holes or slotsStacking system for automated collection
Decoiler (manual or hydraulic)
Pre-punching system for holes or slots
Stacking system for automated collection
