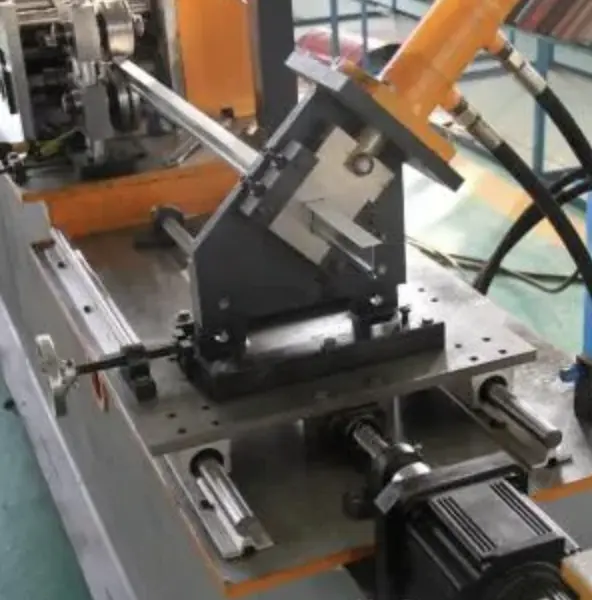

Ceiling Main T grid roll forming machine
We provide you the fully automatic machine with in-line punching of T-bars in the various custom models and sizes. The ceiling T-Bar, T runner roll forming machines are consisted of a Main T-Bar Machine, a Cross T-Bar Machine and an Angle Roll forming machine, for manufacture main T-Bar, Cross-T-Bar, wall angle, ceiling panel.
Decoiler
Coil inner diameter:400-470mm
Coil outer diameter:2000mm
Coil max width:600mm
Max carrying capacity:1500kg
1.Shaft material :
45#steel
2.roll stations:
12 main forming steps
3. Rollers material:
bearing steel(GCR15)
4. forming speed:
12m/min(incluing punching)
25m/min(without punching)
5.Driving of machine
gear wheel
6.Main power of motor:
7.5kw
7.Measurement of machine:
5.5*1.3*1.4m
8.Voltage:
380v/50hw,3phases or as your request.
