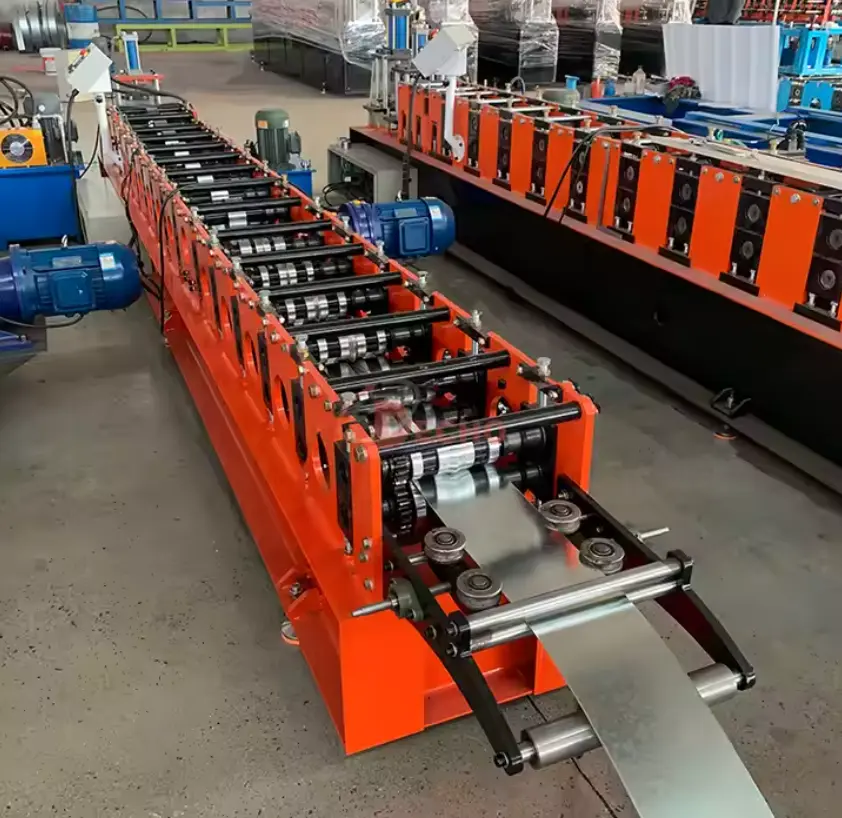

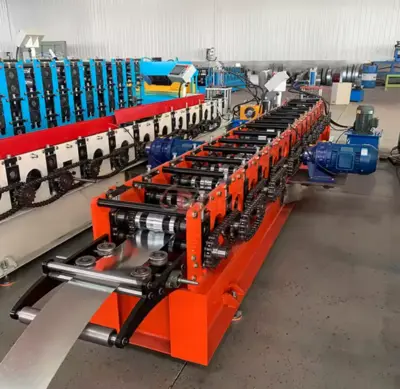

Metal Stud Framing Roll Forming Machine – United Arab Emirates

Metal Stud Framing Roll Forming Machine –  Location: United Arab Emirates
Machine Matcher proudly offers a fully customizable Metal Stud Framing Roll Forming Machine designed to serve the growing demands of the construction and interior fit-out industries in the United Arab Emirates, including delivery to Abu Dhabi, Dubai, Sharjah, and beyond. This high-performance machine is ideal for manufacturing precision-engineered metal studs and tracks used in wall framing, ceilings, and partition systems.
Industries Served
The Metal Stud Framing Roll Forming Machine from Machine Matcher is widely used in the following industries:
Construction & Building: Produces metal studs and tracks for wall partitioning, ceilings, and cladding frames in residential, commercial, and industrial buildings.

Interior Fit-Out: Supplies framing profiles for drywall and gypsum board systems in hotels, offices, malls, and high-rise buildings.

Prefab & Modular Construction: Provides consistent, accurate framing members that simplify assembly on modular building sites.

Infrastructure & Institutional Projects: Offers lightweight yet strong support systems for transport terminals, hospitals, and schools.
Machine Utilization Examples:
In Dubai, contractors use these machines to produce custom drywall framing for large-scale hotel interiors.

In Abu Dhabi, modular construction companies employ them for pre-cut, labeled metal stud kits for fast on-site assembly.
Machine Technical Specifications
Machine Type: Metal Stud Framing Roll Forming Machine

Production Speed: Up to 40 meters/min

Material Thickness Range: 0.4 – 1.2 mm

Material Width Range: 100 – 300 mm (customizable)

Material Types: Galvanized steel, cold-rolled steel, aluminum

Material Yield Strength: Up to 550 MPa (80 ksi)

Roller Material: High-grade GCr15 steel

Roller Surface Treatment: Hard chrome plating

Number of Forming Stations: 12–20 (based on profile complexity)

Roller Shaft Diameter: 50–70 mm

Shaft Material: Solid 45# steel with precision grinding

Main Drive Type: Chain or gearbox drive (customizable)

Power: 380V / 50Hz / 3-phase (adjustable for UAE grid)

Motor Power: 7.5 – 15 kW depending on configuration

Cutting Method: Hydraulic post-cut

Blade Material: Cr12Mov high-strength alloy steel

Control Type: PLC with touchscreen interface

Operating Mode: Fully automatic

De-coiling System: Manual or hydraulic decoiler (3–5 tons)

Punching/Notching System: Integrated servo punching (optional)

Machine Frame: Welded structural steel

Thickness of Frame Steel: 18–22 mm

Profile Shape: C-stud, U-track, furring channel, etc.

Profile Width and Depth: Customizable from 35 mm to 150 mm width

Length Tolerance: ±1.0 mm

Safety Features:

Full protective covers/guards

Emergency stop button

Electrical and mechanical overload protection

Remote Installation Support: Yes, video installation support is provided. On-site commissioning in UAE available upon request.
Customization Options
Profile shape, size, and punching pattern

Punching tool design for electrical, plumbing, or labeling notches

Automation upgrades (auto stacker, label printer, remote diagnostics)

De-coiler upgrade to hydraulic with inverter drive

Voltage and electrical settings tailored for UAE requirements

Additional forming stations for complex profile shapes
Location Coverage
All machines are built to order and delivered anywhere in the United Arab Emirates, including:
Abu Dhabi

Dubai

Sharjah

Al Ain

Ajman

Fujairah

Ras Al Khaimah
Machines are manufactured to the customer’s specific profile and production needs. Delivered and supported directly by Machine Matcher.
Questions & Answers
Q: Can the machine be customized for our profile?

A: Yes. Provide profile drawings and material details to [email protected] for a custom machine proposal.
Q: What type of material is normally used?

A: Galvanized steel (G60 to G90), aluminum, or cold-rolled steel with gauge thickness ranging from 0.4 mm to 1.2 mm, and yield strength up to 550 MPa (80 ksi).
Q: Is remote installation support available?

A: Yes, we offer full video support. On-site commissioning within the UAE is also available upon request.
Q: What is the lead time for manufacturing and shipping?

A: Production takes approximately 30–60 days. Shipping time depends on destination within the UAE.
Pricing Details
Prices start from: USD $45,000  (average standard model)

What affects the final price:

Profile shape complexity

Automation level

Decoiler and punching system options

Power configuration

Additional customization
To get a detailed quotation based on your exact requirements, send your profile and specs to [email protected]
Unique Selling Propositions (USPs)
Tailor-Made Machines: Designed exactly to your profile and production needs. No off-the-shelf limitations.

Fast Turnaround: Efficient lead times for production and shipping across the UAE.

Advanced Automation: PLC control with touchscreens, optional punching & labeling add-ons.

Durable Build: Heavy-duty frame, hardened rollers, and reliable cutting system ensure long-term use.

Full Support in UAE: Remote installation video support and optional on-site commissioning.

One-Year Warranty: Backed by Machine Matcher’s standard warranty and maintenance support.
These features help reduce production downtime, increase profile accuracy, and lower your total cost per unit.
All machines described are supplied exclusively by Machine Matcher and built new to order. For the best quote, include your profile drawing, material specs, and production capacity needs in your email to:
[email protected]
Let Machine Matcher be your trusted partner in high-performance framing profile production across the UAE.
