High-Precision Roll Forming for Suspended Ceiling and Partition Systems
Product Overview

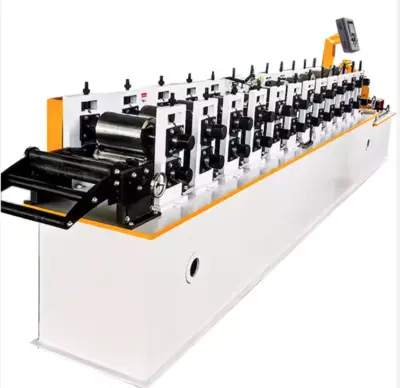

The Main Channel Roll Forming Machine is a fully automated, precision-engineered solution designed to manufacture the primary framing channel used in suspended ceiling and drywall partition systems. Tailored for the UAE market and built to withstand regional environmental demands, this machine delivers high production rates, tight profile tolerances, and minimal material waste.
Whether used in large commercial developments in Dubai, infrastructure projects in Abu Dhabi, or residential buildings in Sharjah, this machine ensures consistent quality and optimal performance. Ideal for manufacturers of metal ceiling systems, gypsum partition frameworks, and MEP contractors supplying ceiling grids.
Machine Technical Specifications
Machine Type: Main Channel Roll Forming Machine

Production Speed: 20–40 meters/min (adjustable)

Material Thickness Range: 0.35 – 0.8 mm

Material Width Range: 100 – 150 mm (depends on profile)

Material Types: Galvanized Steel, Pre-painted Steel, Aluminum

Material Yield Strength: Up to 350 MPa (50 ksi)

Roller Material: GCr15 (hardened tool steel)

Roller Surface Treatment: Hard chrome-plated for wear resistance

Number of Forming Stations: 12–16 (varies by profile complexity)

Roller Shaft Diameter: 50 mm

Shaft Material: Solid 45# steel, precision ground

Main Drive Type: Gearbox drive

Power (UAE-compatible): 380V / 50Hz / 3Phase

Motor Power: 5.5 kW

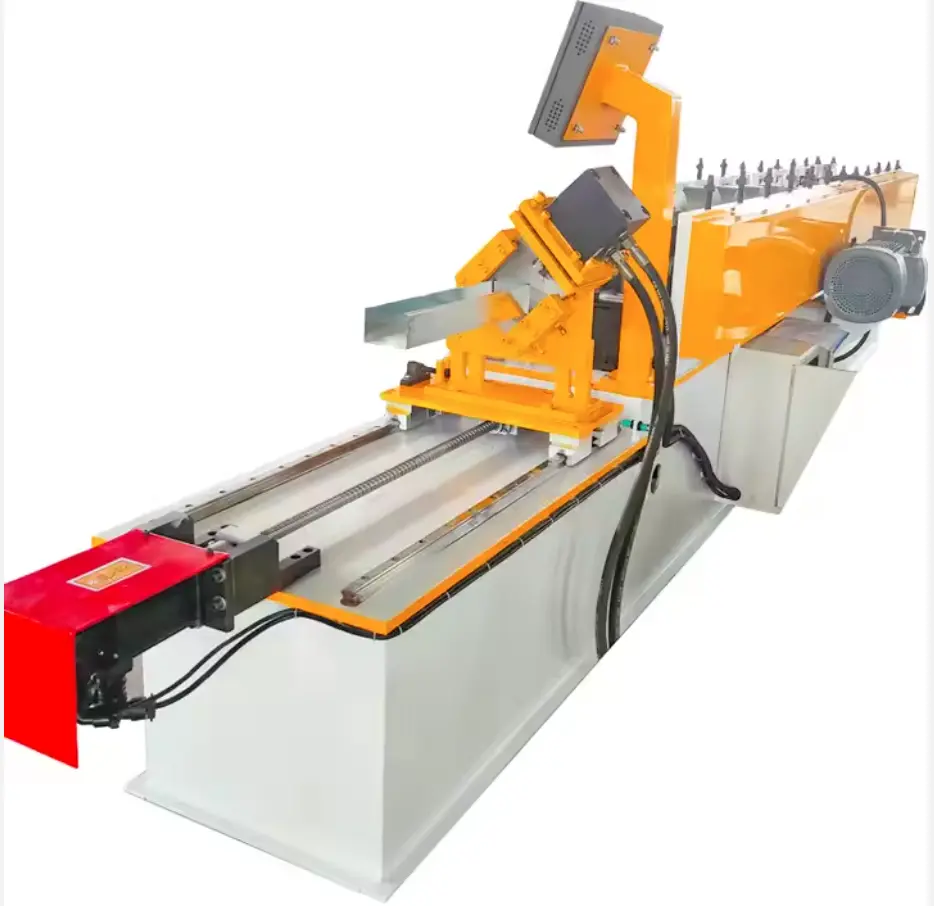

Cutting Method: Hydraulic cutting with die mold

Blade Material: Cr12Mov high-speed tool steel

Control Type: PLC control (Siemens or Delta) with touchscreen interface

Operating Mode: Fully automatic with manual override

De-coiling System: Manual or hydraulic decoiler (optional motorized)

Punching/Notching System: Optional inline punching system

Machine Frame: Welded structure, stress-relieved

Thickness of Frame Steel: 18–20 mm steel plate

Profile Shape: U/C Type – custom depth and flange

Profile Width and Depth: Typically 38 mm (depth) × 12–15 mm (flange)

Length Tolerance: ±1.0 mm per 3 meters

Safety Features:

Full protective covers and interlocked guards

Emergency stop buttons

Overload protection system
Materials Used and Performance Ranges
Common Materials:

Galvanized Steel (G90): 0.5–0.8 mm thickness

Aluminum: 0.4–0.7 mm thickness

KSI Strength: 33–50 ksi depending on project specs

Used for ceiling grid framing systems, gypsum partition frameworks, and electrical raceway supports.
Industries Served
This machine caters to a range of construction and interior finishing sectors:
Construction Contractors: Framing for suspended ceiling systems

Drywall Installers: Main structure in gypsum partition wall framing

Ceiling Grid Manufacturers: Large-scale production for T-grid or U/C framing

Fit-out Companies: Interior steel framework for hotels, malls, and office buildings

Infrastructure Projects: Airports, hospitals, educational buildings

Prefab Building Suppliers: Light steel framing for modular structures
Utilization Example:

A contractor in Dubai outfitting commercial office spaces can produce consistent main channels on-site or in-house, reducing supplier dependence and achieving faster installation timelines.
Customization Options
Adjustable profile width and height

Integration of servo-driven punching system

Dual-profile tooling setup

High-speed output upgrades (up to 50m/min)

Remote PLC diagnostics and control

Coil car with hydraulic tipper for easy loading

Automatic stacker and discharge table
Highlight: Why Choose This Machine?
Tailored for UAE Conditions – Dust-proof and heat-resistant design
Fast Return on Investment – Speeds up project timelines by up to 40%
Superior Build Quality – Hardened, chrome-plated rollers last longer
High Accuracy – Precise shaft alignment and cutting length control
Automation Ready – Reduce labor cost and increase reliability
Full Customization – Built to your exact profile specs and material type
These benefits translate directly into cost savings through reduced scrap, improved cycle time, lower manpower, and faster jobsite execution.
Price Guide
Prices Start From: $38,000 USD depending on configuration and extras
What Affects the Final Price?
Profile dimensions and thickness range

Optional inline punching systems

Motorized decoiler or coil handling system

Automation upgrades or high-speed versions

Installation and training requirements
Note: Contact us for a tailored quote based on your specific production needs, required output, and profile dimensions.
Location and Delivery
All machines are custom-built to your specifications and shipped from our trusted manufacturing partner. We deliver directly to all major UAE locations including:
Abu Dhabi
Dubai
Sharjah
Ajman, Ras Al Khaimah, Fujairah & Al Ain
Warranty & Support
1-Year Warranty from dispatch date

Durable maintenance support with spare parts availability

Installation assistance and technical training available
Have a Profile Drawing or Material Spec?
📧 Email us your drawing or project details to get a customized quote: [email protected]
Frequently Asked Questions (Q&A)
Q: Can I use this machine to produce other profiles too?

A: Yes, with modular tooling, the machine can be adapted to similar profiles or U/C channel variations.
Q: What kind of materials are best for this machine?

A: Galvanized steel (G40–G90) and aluminum between 0.4–0.8 mm with yield strength up to 50 ksi are ideal.
Q: How long does delivery take in the UAE?

A: Typical lead time is 45–60 days from order confirmation, with direct shipping to your location.
Q: Can you provide installation and training?

A: Yes, we offer full installation and training services in the UAE.
Q: What is the difference between a main channel and furring channel?

A: The main channel is the primary load-bearing section, while furring channels are secondary cross members.
