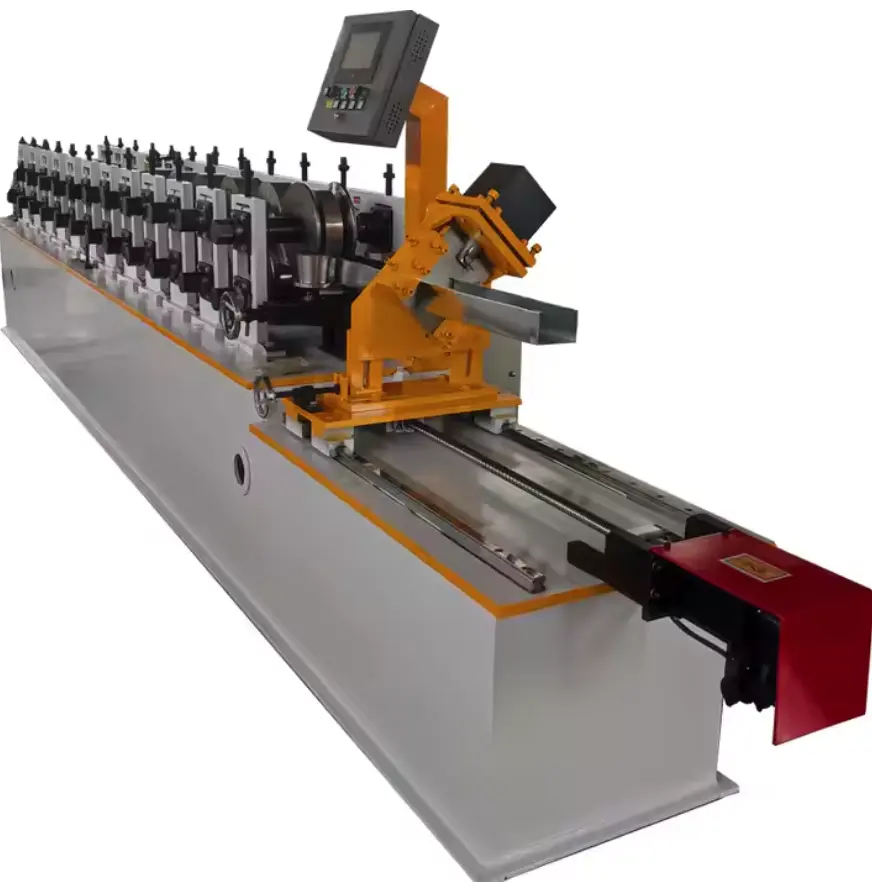

Steel Stud Roll Forming Machine – UAE
Precision. Productivity. Performance.
Product Overview
The Steel Stud Roll Forming Machine is purpose-built for manufacturing precision-engineered steel stud profiles used in wall framing systems. Designed for high-performance continuous production, this roll forming system delivers unmatched accuracy and efficiency, making it ideal for the growing construction and drywall partition markets in the United Arab Emirates, including Dubai, Abu Dhabi, and Sharjah.
This machine is fully customizable and capable of producing various stud profile shapes with quick tooling changeover, servo punching, and precision flying cutting. Built for UAE's demanding environments and power configurations, it is a dependable solution for light steel framing manufacturers, building contractors, prefab housing suppliers, and drywall system providers.
Industries Served
Construction and Civil Engineering
Prefabricated Housing Manufacturers
Interior Partition Contractors
Drywall System Suppliers
Commercial Fit-Out & Office Interiors
Industrial and Institutional Buildings
Example Applications:
Steel framing for walls, ceilings, and partitions in commercial towers in Dubai
Interior wall partitioning in hospitals and schools in Abu Dhabi
Prefab housing projects in Sharjah and other Emirates
Fast-track fit-out projects requiring precision studs and quick delivery
Machine Technical Specifications
Specification
Details
Machine Type
Steel Stud Roll Forming Machine
Production Speed
30–60 meters/minute (depending on profile and punching complexity)
Material Thickness Range
0.4 mm – 1.2 mm
Material Width Range
100 mm – 300 mm (based on profile)
Material Types
Galvanized Steel (GI), Cold-Rolled Steel, Aluminum (on request)
Material Yield Strength
Up to 550 MPa (80 KSI)
Roller Material
GCr15 high-grade steel, heat-treated and precision-machined
Roller Surface Treatment
Hard chrome plating for corrosion resistance and extended life
Number of Forming Stations
12–20 stations depending on profile complexity
Roller Shaft Diameter
60 mm–75 mm
Shaft Material
High-strength steel (40Cr), precision ground
Main Drive Type
Gearbox driven or chain drive (based on buyer preference)
Power (UAE Compatible)
380V, 50Hz, 3 Phase
Motor Power
7.5 kW – 15 kW (customizable)
Cutting Method
Hydraulic flying cut-off or servo-tracking cut-off
Blade Material
Cr12MoV, hardened and ground
Control Type
PLC control (Siemens/Mitsubishi) with touchscreen HMI
Operating Mode
Fully automatic with manual override
De-coiling System
Manual or hydraulic de-coiler, 3–5 tons
Punching/Notching System
Servo or hydraulic punching (for cable entries, labels, bolt holes)
Machine Frame
Welded H-beam structure
Thickness of Frame Steel
18–22 mm reinforced base
Profile Shape
U, C, Sigma or custom steel stud profiles
Profile Width and Depth
Customizable; common profiles: 50x40 mm, 75x40 mm, 100x50 mm
Length Tolerance
±1.0 mm
Safety Features
Protective steel mesh covers, Emergency Stop Buttons, Overload Protection
Materials Used & Gauges
Typical Material: Galvanized Steel (G90 or G60 grade)
Thickness: 0.5 mm – 1.2 mm
Strength: 230 – 550 MPa (33 – 80 KSI)
Pricing
Prices start from:
USD $45,000 depending on machine speed, punching units, profile types, and optional automation.
What affects the final price:
Number of punching heads and notching tools
Servo vs hydraulic cutting
Profile complexity (single profile vs interchangeable tooling)
Motor and drive system (chain or gearbox)
Degree of automation and PLC brand
Coil handling options (decoiler, stacker)
Delivery & Location
All machines are new and built to order, delivered anywhere across the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, and Fujairah, directly from our manufacturing partner.
Highlighted Advantages (USPs)
Custom-Built for UAE Market – Power compatibility, climate considerations, and high-spec materials suited for local demand
Tooling Interchangeability – Produce multiple stud sizes on one machine
High-Speed Operation – Boost production for large-scale commercial projects
Servo Punching Integration – For custom slots and cutouts required in MEP and drywall systems
PLC + Touchscreen Control – User-friendly interface with recipe management
Local After-Sales Support – Reliable post-sale assistance and spare parts
How it helps your business:
By reducing manual punching, increasing forming precision, and automating coil-to-cut production, you can cut labor costs, reduce wastage, and speed up project delivery, giving you a competitive edge in high-volume construction contracts across the UAE.
Customization Options
Variable profile width tooling
Multi-profile cassette systems
Servo punching for branding and service holes
Coil handling automation (automatic decoiler, coil car)
Remote control or remote diagnostics
Offline software integration for project management
Warranty & Support
Warranty: 1-year warranty from dispatch
Support: Ongoing support for maintenance, repairs, and spare parts
Installation & Training: Optional setup, commissioning, and operator training available
Inquire Now
If you have profile drawings, preferred sizes, or material details, send them to [email protected] for a tailored quotation. The more details you provide, the better we can match you with the right solution.
Frequently Asked Questions
Q: Can this machine produce both stud and track profiles?
Yes, with the right tooling setup or a cassette-based system, the machine can switch between stud and track production.
Q: How many profiles can one machine make?
Depending on the tooling system, you can produce multiple widths or shapes using manual or automatic adjustment.
Q: What is the delivery time to the UAE?
Typical production and delivery time is 45–60 days, depending on customization and factory schedule.
Q: Is installation included?
Installation and commissioning can be provided on request by our trained technicians.
Q: Do you offer training for machine operators?
Yes, training is available either remotely or on-site to ensure safe and efficient operation.
For expert guidance and a quote tailored to your steel stud production needs, contact Machine Matcher today.
