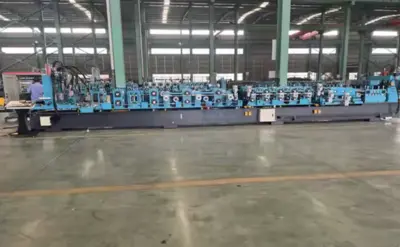

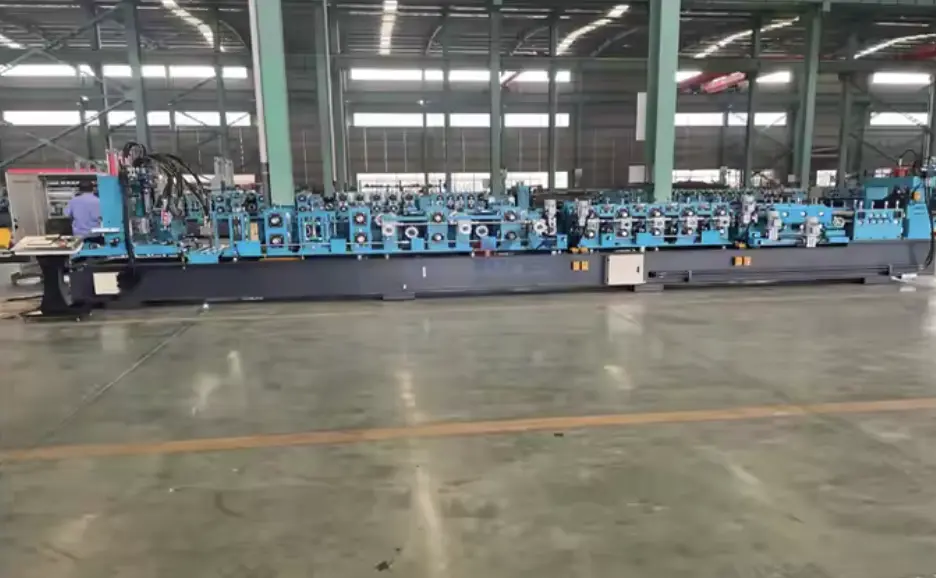

Cee & Zee Purlin Roll Forming Machine in China

View more information and all machines from this supplier here
Type
Steel Frame & Purlin Machine

Work Pressure
16 MPA

Voltage
380V 50HZ

Power
30KW
Other attributes
Core Components
PLC, Engine, Motor, Pump

Production Capacity
10-20m/min

Place of Origin
Jiangsu, China

Weight
10000 kg

Warranty
1 Year

Key Selling Points
Easy to Operate

Video outgoing-inspection
Provided

Machinery Test Report
Provided

Brand Name
SUPER

Dimension(L*W*H)
according to the model

After-sales Service Provided
Engineers available to service machinery overseas

Material Thickness
1.5-3.0mm

Main Motor Power
22kw

Hydraulic Pressure
16Mpa

Control System
PLC control Panel

Shaft Material
40Cr

Roller Material
Cr12

Cutter Blade Material
Cr12

Forming Speed
16-20m/min

Roller Station
14 Stations
