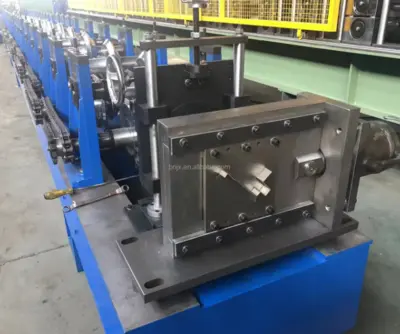

Steel Frame Purlin CZ Roll Forming Machine with Chromed Hydraulic Cutting in Wuxi, China
Overview
Description
Working speed
10-15 m/min（Shear time is not included）
Pressed plate thickness
0.3-1mm
Control mode
Panasonic PLC
Discharging rack
3T manual decoiler
Number of molding passes
12 lanes
Roll material
After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter
轴材质及轴径
45# Steel finishing，Shaft diameter is￠85mm
Main engine power
5.5kw
Power of hydraulic station
4kw
Hydraulic pressure
12Mpa

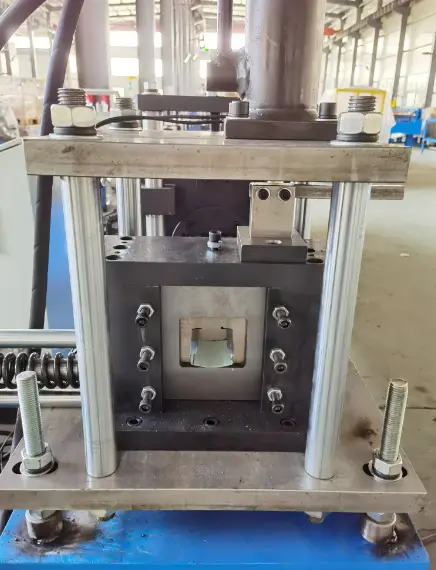

Cutting mode
Shear after forming
Scissors material
Cr12Mov， quench HRC 58-62℃
Length tolerance
3m±1.5mm
Voltage
380V, 50HZ,3 phase（According to customer requirements can be adjusted）
Transmission mode
1.0 inch single row chain
Equipment form
slab-wall structure
Equipment color
Company color
Equipment size
L*W*H— 8m*1.5m*1.2m
Date of delivery
80 days
Payment method
30% advance charge，70% pay off on delivery
