Automatic C/Z Purlin Machine with Universal Cutter in China

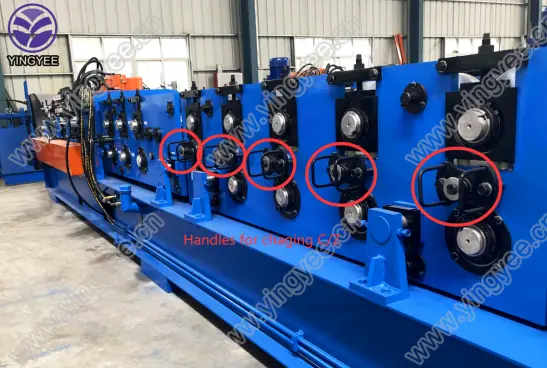

Manually adjust the C and Z to change the type. Universal cutter cuts all sizes. Save time and labor .Machine is large and weighs 12 tons, which is strong and durable. The machine has stable performance and low failure rate.

Material

1. Thickness:max 2.0 mm
2. Material: galvanized steel strips

Power supply
380V, 50Hz, 3 phase

Capacity of power

Main power:11 kw
Hydraulic station power: 5.5kw

Speed
Forming speed: 18m/min

Stands of rollers
About 14 rollers

Cut style
Hydraulic universal cut

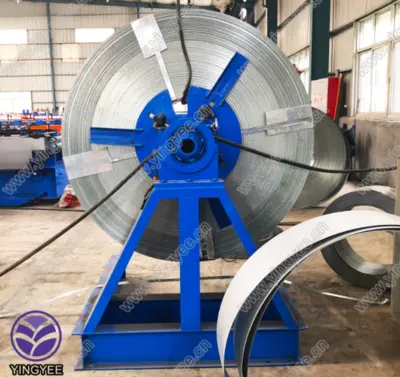

3 tons manual decoiler

1: Capacity: 3000kgs
2: Inner diameter of coil: 440-500mm

Leveling system
7 rollers for straighten 3 up and 4 down.

Pre-punching
Depend the final drawing

Roll forming machine

1.size: web：70--250mm, thickness：under 2mm
2.3 tons manual decoiler
3.Main power: 11kw
4.Forming speed: 18m/min

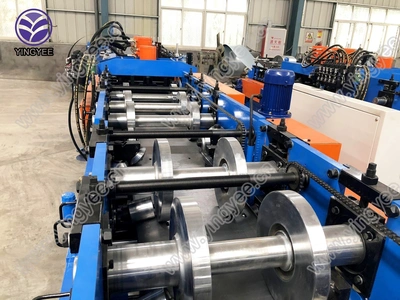

5.Shaft and rollers material and diameters: 45 #steel / GCR15 / diameters : 70mm +55mm
6.Roller Steps: 14 steps for forming
7.All size change by PLC
8.Machine structure：pannel stand + one side can move
9.Cutter: universal cut
10.Hydraulic pre cut
11.Drive ：gear box +chain
12.Voltage: 380V, 50 Hz, 3Phase

PLC control system

1.Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase
2.Automatic length measurement:
3.Automatic quantity measurement
4.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
5.Length inaccuracy can be amended easily
6.Control panel: Button-type switch and touch screen
7.Unit of length: millimeter (switched on the control panel)
