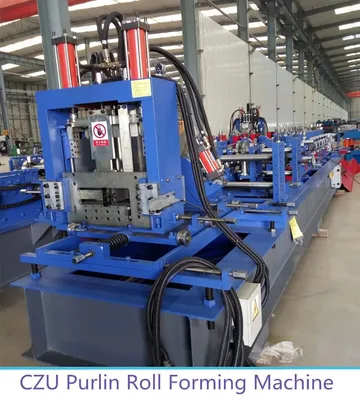

CZU Steel Purlin Frame Roll Forming Machine in China

Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer’s Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.

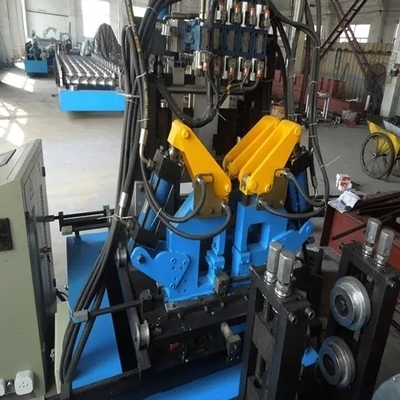

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Matching material
Steel coil, Galvanized, PPGI, Aluminum

Material thickness range
According to drawings

Main motor power
15KW

Forming speed
6-8m/min (include punching and cutting time)

Hydraulic power
5.5KW

Quantity of rollers
About 18

Shaft diameter and material
70mm, material is 40Cr

Material of rollers
45# steel with chromed

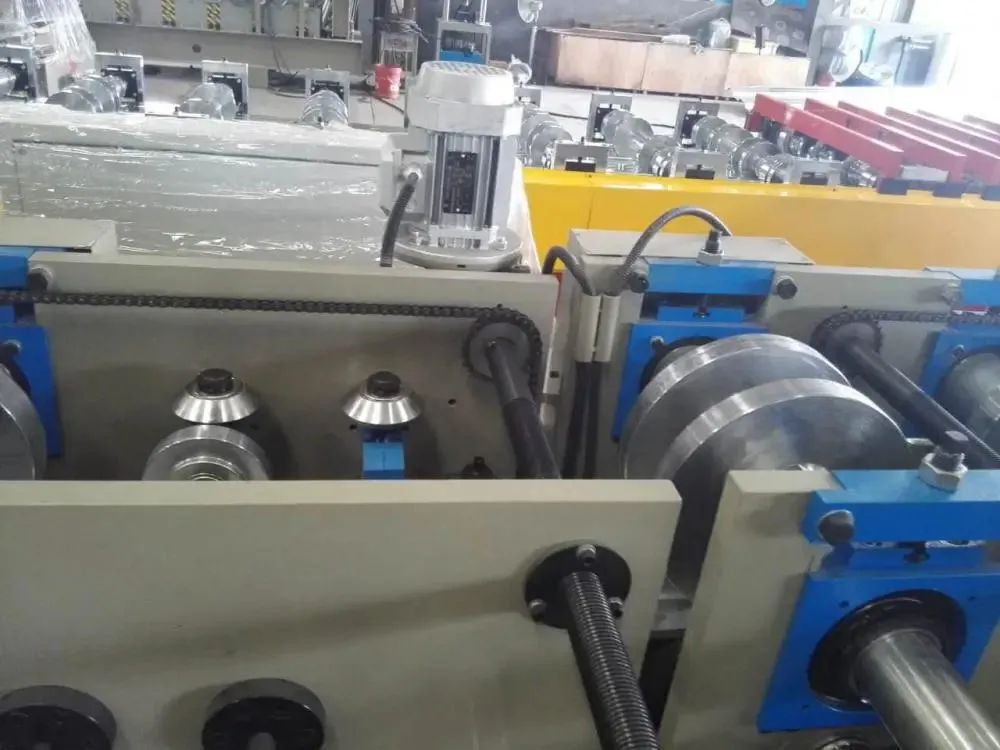

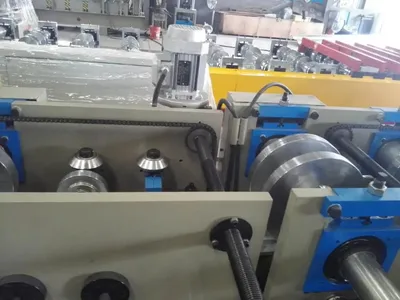

Way of driven
chain transmission

Controlling system
PLC

Voltage
380V/30Phase/50Hz

Total weight
About 10 tons

Size of the machine
L*W*H 10m*1.2m*1.6m
