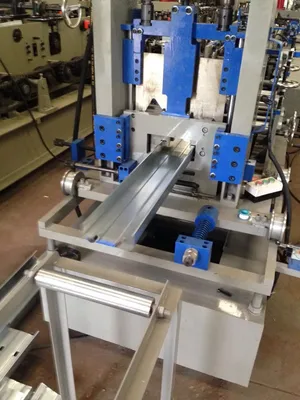

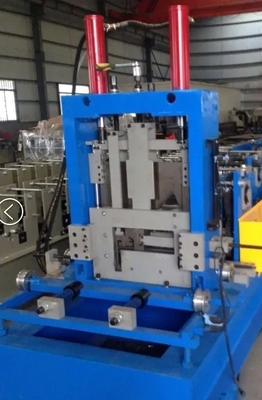

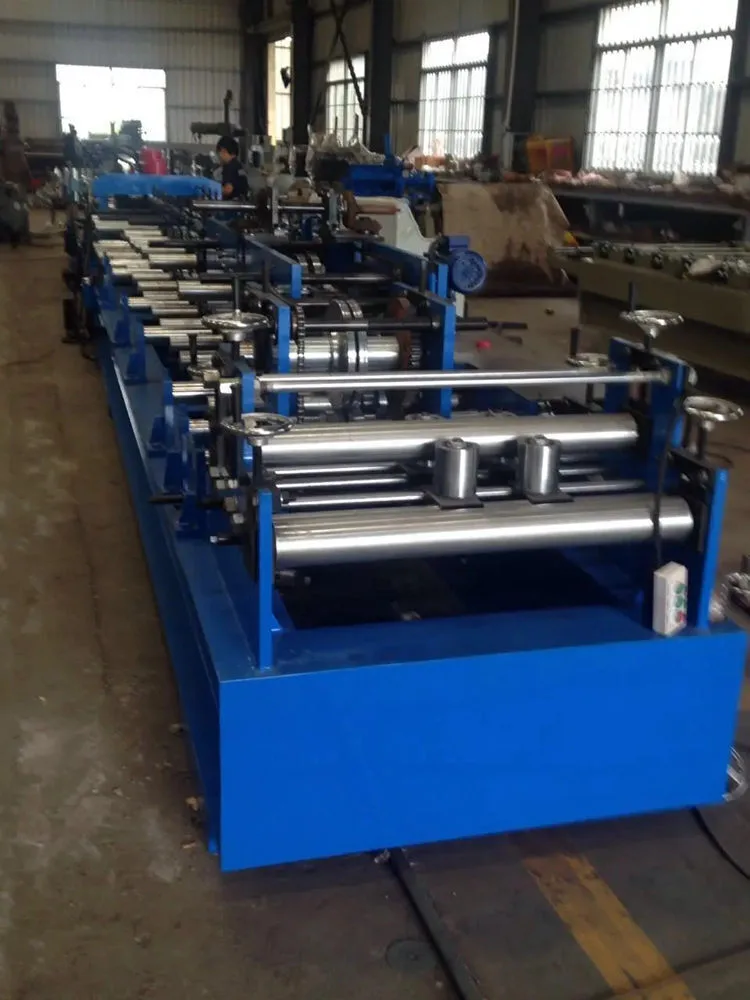

C/Z Purlin Automatic Roll Forming Machine Line in China

Model No.:C/Z
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:10-18m/min(not Include Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:CR12 Mov
Voltage:At Customer’s Request
Rollers Material:Gcr15 Or Cr12
Packaging:PLASTIC FILM, WOODEN CASE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean,Land,Air
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:TIANJIN,XIAMEN,SHANGHAI
The structural C and Z purlins are for industrial buildings, anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.
Our machine is the best choice in rollforming machines for the C-Channel, Lipped Channel, Z-shaped profiles.
The machine adjust size of c/z by PLC automatic type. for c u to z change can be finished in two minute.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

Matching material
Steel coil, Galvanized, PPGI, Aluminum

Material thickness range
According to drawings

Main motor power
30W

Forming speed
10-18min (not include punching and cutting time)

Hydraulic power
7.5KW

Quantity of rollers
About 18

Shaft diameter and material
70mm, material is 45#steel

Material of rollers
Gcr15 or Cr12 with chromed

Way of driven
chain transmission

Controlling system
PLC

Voltage
380V/30Phase/50Hz (as customer require)

Total weight
About 12 tons

Size of the machine
L*W*H 10m*1.2m*1.6m
