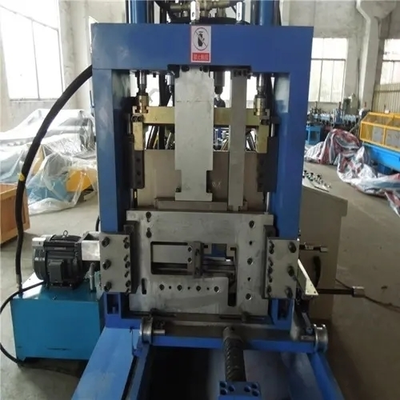

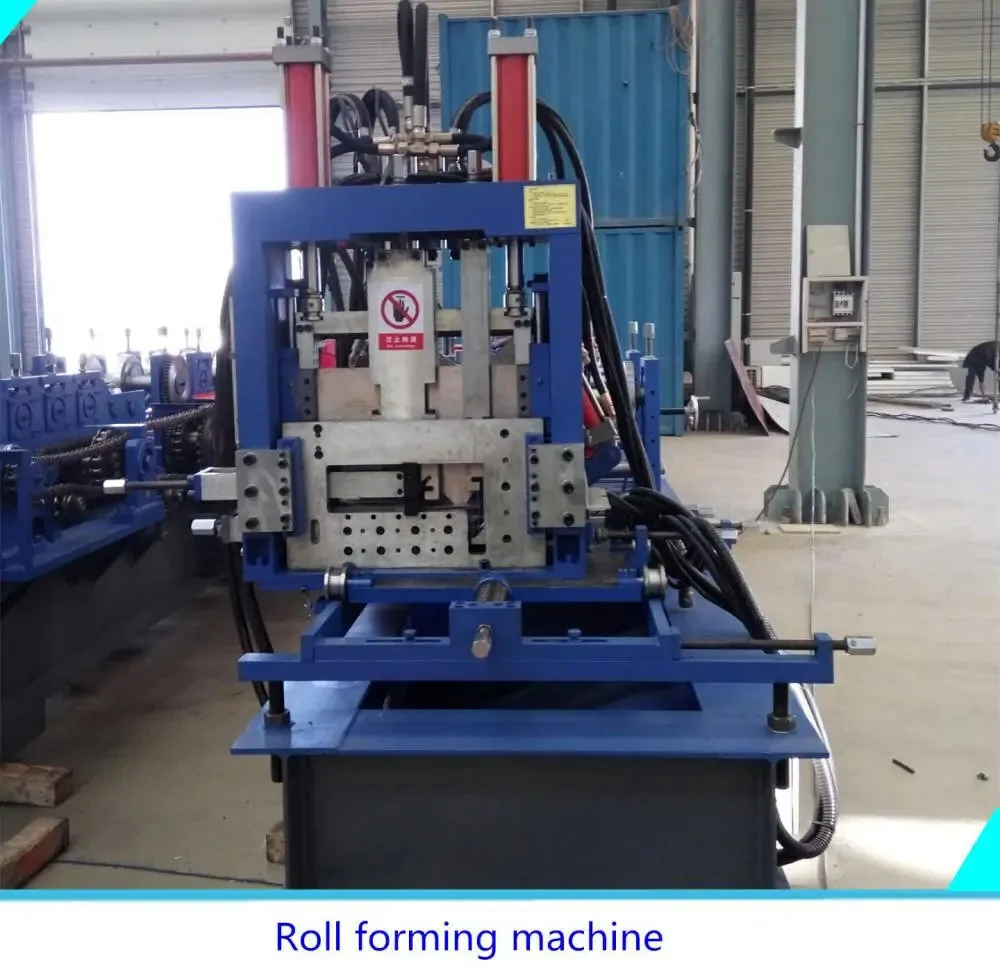

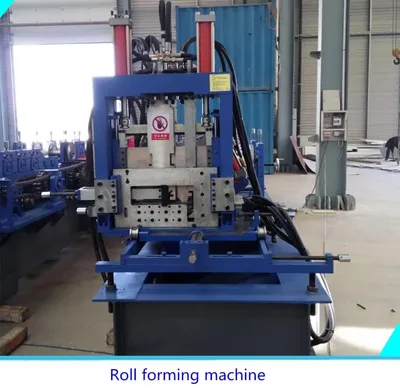

Hydraulic CZ Purlin Touch Screen Roll Forming Machine in China

Model No.:YY-CZ PULIN
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:10-18m/min(not Include Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:CR12 Mov
Voltage:At Customer’s Request
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

Matching material
Steel coil, Galvanized, PPGI, Aluminum

Material thickness range
According to drawings

Main motor power
30W

Forming speed
10-18min (not include punching and cutting time)

Hydraulic power
7.5KW

Quantity of rollers
About 18

Shaft diameter and material
70mm, material is 45#steel

Material of rollers
Gcr15 or Cr12 with chromed

Way of driven
chain transmission

Controlling system
PLC

Voltage
380V/30Phase/50Hz (as customer require)

Total weight
About 12 tons

Size of the machine
L*W*H 10m*1.2m*1.6m
