Cee purlin roll forming machines are essential for manufacturing strong, durable, and versatile structural profiles used in construction and industrial projects. In the USA, these machines cater to the demand for high-quality purlins that are utilized in metal building frameworks, warehouses, and roofing applications. This article provides an in-depth look at the specifications, features, and benefits of a Cee purlin roll forming machine designed for the U.S. market.
Machine Description

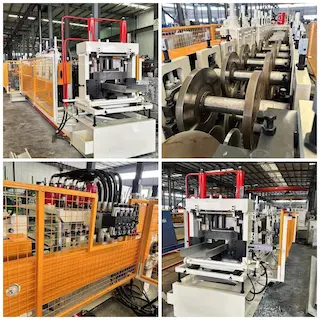

The Cee purlin roll forming machine is a high-performance system engineered to produce Cee profiles with consistent quality and efficiency. This machine features a robust construction designed to handle heavy-duty operations while maintaining precision in forming and cutting. With a forming speed of 50–60 ft/min, it balances productivity and quality to meet the demands of American construction standards.
Its hydraulic shear cutting system ensures clean cuts without deforming the material. The Delta PLC control system allows operators to input precise specifications, making it easy to switch between different profile sizes and material gauges. Safety is a top priority, with comprehensive safety covers protecting operators from moving parts.
Profiles Produced
This machine is specifically designed for producing Cee purlin profiles with the following specifications:
Profile Size: 5" to 12" (adjustable)
Material Thickness: Variable, depending on coil specifications
Applications:
Metal building frameworks
Roofing supports
Industrial sheds
Warehouses and garages
Key Features
Variable Coil Widths: Adjustability to cater to diverse project requirements.
High Speed: The forming speed of up to 60 ft/min ensures timely delivery of large orders.
Precision: Equipped with 21 stations, it guarantees consistent shaping of profiles.
Energy Efficiency: Powered by a 32 HP motor optimized for performance and efficiency.
Durability: The heavy-duty construction ensures longevity even under rigorous use.
Safety: Comprehensive safety covers to prevent accidents and ensure compliance with OSHA standards.
Question and Answer Section
Q1: What materials can the machine process?
A: The machine can process a range of materials, including galvanized steel, mild steel, and high-strength steel, with variable thicknesses.
Q2: Is this machine suitable for large-scale projects?
A: Yes, its high forming speed, robust design, and versatility make it ideal for large-scale industrial and commercial projects.
Q3: Can the machine produce profiles other than Cee purlins?
A: While primarily designed for Cee purlins, it can also produce Z purlins or other profiles with appropriate tooling modifications.
Q4: How long does it take to set up the machine for different profiles?
A: With the Delta PLC system, the machine can be reconfigured within 15–20 minutes for different profile sizes and material specifications.
Q5: What kind of maintenance does the machine require?
A: Regular maintenance includes lubrication of moving parts, inspection of the hydraulic system, and cleaning of rollers to ensure consistent performance.
Q6: Are training and installation support available?
A: Yes, the machine comes with comprehensive installation support, and training is provided to ensure operators are well-versed in its use.
Q7: What is the average power consumption of the machine?
A: The machine operates on a 32 HP motor and consumes approximately 24–26 kWh under full load conditions.
Profile Range: 5" to 12"
Coil Width: Variable (adjustable for different profile requirements)
Forming Speed: 50–60 ft/min
Material Thickness: Variable (compatible with a range of gauges based on project needs)
Machine Weight: 15 tons
Machine Footprint: 60 ft (L) x 12 ft (W)
Main Power: 32 HP, 480V, 3-phase electrical system
Stations: 21 forming stations for precise shaping and strength
Cutting Type: Hydraulic shear for clean and accurate cuts
Control System: Delta PLC system for automation and precision control
Safety Covers: Full coverage for enhanced operator safety
