Type F Roof Deck Roll Forming Machine – UAE

Type F Roof Deck Roll Forming Machine – UAE Market Specification and Description

Available across Abu Dhabi, Dubai, Sharjah, and all regions of the United Arab Emirates
Product Overview

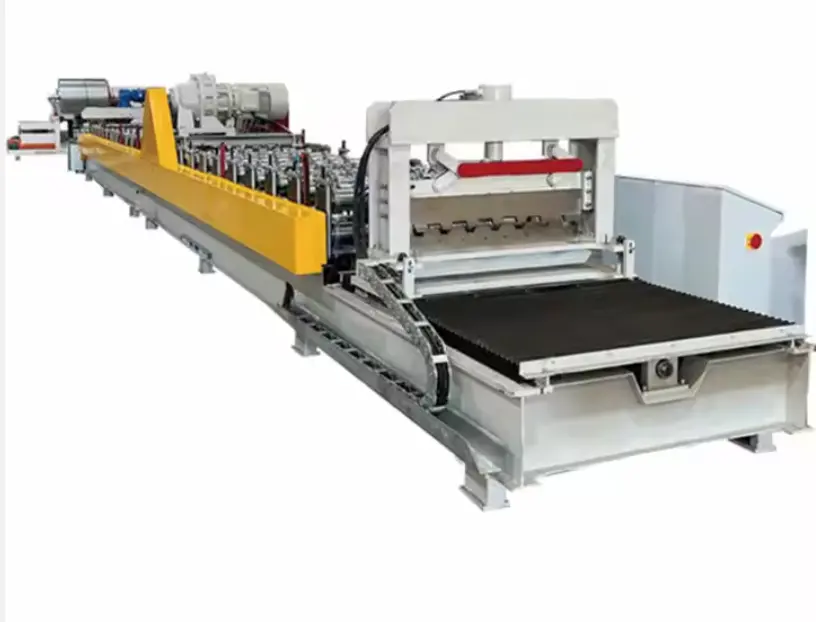

The Type F Roof Deck Roll Forming Machine is a high-precision industrial forming system designed specifically for the production of F-deck roof panels, commonly used in commercial and industrial buildings across the UAE. These roof deck profiles are valued for their enhanced structural strength and load-bearing capabilities, making them essential in the construction of warehouses, high-rise commercial towers, malls, stadiums, and other large-scale infrastructure projects.
Engineered for continuous and automated production, the Type F deck machine accommodates a range of steel coils, delivering consistent output with minimal manual intervention. Its robust design ensures superior panel accuracy and strength while meeting UAE’s local building standards and extreme climate conditions.
Industries & Applications
This machine is a key asset in the following sectors:
Construction & Infrastructure

Steel Building Manufacturing

Commercial Roofing Contractors

Industrial Sheds and Warehousing

Modular Building Fabricators

Metal Decking Supply for UAE's high-rise developments
Its profile provides a stable base for concrete and insulation layers and supports various waterproofing systems. The Type F deck is particularly popular in roofing and diaphragm applications where rigidity and spanning capability are required.
Machine Technical Specifications
Specification
Detail

Machine Type
Type F Roof Deck Roll Forming Machine

Production Speed
15–25 meters/min (adjustable)

Material Thickness Range
0.8mm – 1.5mm

Material Width Range
1000mm – 1250mm

Material Types
Galvanized Steel (GI), Galvalume, PPGI

Material Yield Strength
Up to 550 MPa

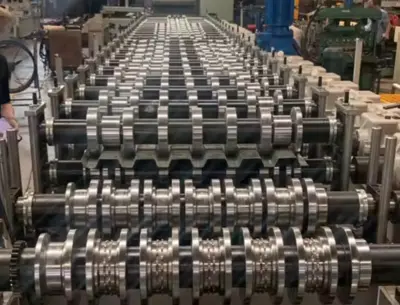

Roller Material
High-grade GCr15 steel

Roller Surface Treatment
Hard chrome plating (0.05mm)

Number of Forming Stations
22–28 stations (based on final profile)

Roller Shaft Diameter
75mm

Shaft Material
High tensile steel, heat-treated

Main Drive Type
Gearbox-driven chain or direct gear drive

Power (UAE Standard)
380V / 50Hz / 3 Phase

Motor Power
15kW – 22kW depending on configuration

Cutting Method
Hydraulic post-cutting

Blade Material
Cr12Mov (hardened)

Control Type
PLC Control System (Siemens/Delta/Mitsubishi)

Operating Mode
Automatic with manual override

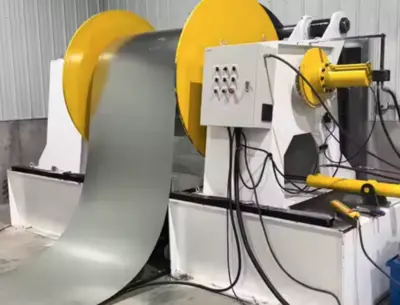

De-coiling System
5-ton hydraulic or manual uncoiler

Punching/Notching System
Optional hydraulic system

Machine Frame
Welded H-beam base frame

Thickness of Frame Steel
20mm

Profile Shape
Type F Roof Deck (wide rib profile)

Profile Width and Depth
Approx. 950mm effective width x 38mm depth

Length Tolerance
±1.0mm

Safety Features
Full emergency stop system, guard covers

Protective Covers/Guards
Included (standard across the line)

Emergency Stop Button
Yes (multiple points along the line)

Overload Protection System
Yes
Pricing Information
Prices start from: $65,000 USD

Final pricing depends on:

Length of production line

Roller material upgrade (e.g., tungsten coating)

Optional extras (e.g., auto stackers, notching units, advanced PLC control)

Uncoiling and coil handling requirements

Shipping and installation location within the UAE
For an accurate quote, send your profile drawing, expected coil specs, power supply, and target production speed to:
[email protected]
Delivery & Support in the UAE
All machines are new and custom-built to match your specific project requirements and are delivered anywhere across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, and beyond.
Machine Matcher ensures:
1-Year Manufacturer Warranty

Spare Parts & Maintenance Support

Installation & Commissioning Assistance

Operator Training Available (on-site or remote)
Frequently Asked Questions (FAQs)
Q1: What is the difference between Type F and other roof deck profiles?

A: Type F roof decks typically have narrower rib spacing and shallower depth compared to Type B or N. They’re ideal for applications requiring enhanced support for roofing insulation and waterproofing systems, especially in commercial roofing in the UAE.
Q2: Can this machine handle aluminum or stainless steel?

A: This model is optimized for GI and PPGI steel. Aluminum and stainless steel can be processed with specific roller materials and modifications—please mention this when requesting a quote.
Q3: How long does it take to deliver the machine in the UAE?

A: Lead time ranges from 60 to 90 days, depending on configuration, followed by customs clearance and delivery to site.
Q4: Can the machine be customized for different deck sizes or rib patterns?

A: Yes. Each machine is fully customizable based on your drawing or local standard. You can send your required profile sketch to [email protected].
Q5: Is installation support available in Dubai and Abu Dhabi?

A: Yes. Machine Matcher offers local and remote installation support throughout the UAE. On-site support is available upon request.
Optional Add-Ons
Coil Car / Coil Tipper

Automatic Hydraulic Uncoiler

Servo Feeder for Punching

Flying Cut-Off System

Automatic Stacker

Remote Monitoring PLC System

Leveling Unit

In-line Embossing Unit (for anti-slip surface)
Final Notes
The Type F Roof Deck Roll Forming Machine is a precision-engineered solution for contractors and manufacturers building the UAE’s commercial infrastructure. With its flexibility, high-speed production, and durable build, it provides an edge in a competitive construction market.
Contact Machine Matcher today to configure your machine and secure your place in the region’s expanding construction boom.
Email: [email protected]
