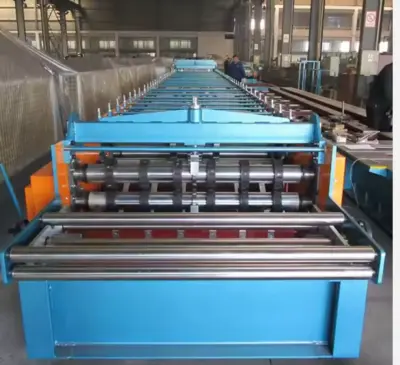

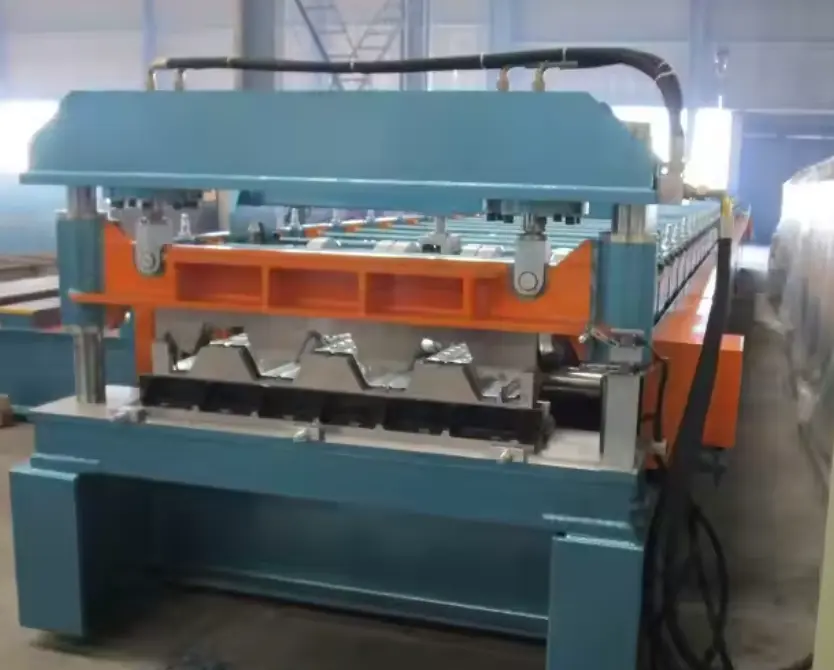

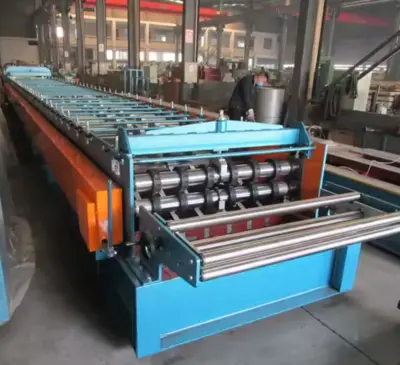

Wide Rib Roof Deck Roll Forming Machine – UAE

Wide Rib Roof Deck Roll Forming Machine – UAE Specification & Product Overview
The Wide Rib Roof Deck Roll Forming Machine is designed to manufacture high-strength, wide-ribbed metal decking used primarily for roofing systems in commercial, industrial, and infrastructure projects. Tailored for the UAE construction market, this machine combines robust engineering with automation, allowing reliable high-speed production with precise shaping of heavy-gauge steel into structural deck panels that meet international and local building codes.
This machine is a critical investment for metal decking suppliers, steel structure contractors, roofing system manufacturers, and construction companies looking to streamline roof deck fabrication across cities such as Dubai, Abu Dhabi, Sharjah, and Al Ain.
Product Description
The Wide Rib Roof Deck Roll Forming Machine is engineered for producing structural wide rib metal deck profiles that are typically used in load-bearing roofing applications. These profiles offer excellent span capacity and composite action when combined with concrete, making them ideal for large-scale commercial buildings, stadiums, warehouses, and high-rise towers across the UAE.
Built with a solid steel frame and precision-machined rollers, the machine can process high-tensile galvanized steel coils and form them into uniform deck panels with exacting tolerances. The system includes an automated cutting mechanism, PLC control unit, and safety guards, ensuring both production efficiency and operator safety.
This machine is custom-built to match the customer's required deck profile and can be modified for wide rib variants, making it compatible with common specifications used in Gulf construction standards.
Industries This Machine Is For
Roof Decking Suppliers & Installers

Steel Structure Contractors

Industrial Building Developers

Pre-engineered Building (PEB) Manufacturers

Commercial Construction Firms

Infrastructure Project Developers
Prices Start From:
USD $85,000 (FOB)

Note: Prices vary based on profile size, automation level, and optional systems.
What Affects the Final Price?
Profile complexity and customization

Motor and drive system upgrades (e.g., servo vs. hydraulic)

Leveling system or notching unit

Automatic stacker or coil handling systems

Control system brand (Siemens, Delta, Mitsubishi, etc.)

Volume of order or bundled machines
For a tailored quote, please email your profile drawing, coil specs, and project requirements to: [email protected]
Location & Delivery
All machines are new and custom-built to meet your specific profile and production needs.

Delivery available across the UAE, including:
Abu Dhabi

Dubai

Sharjah

Ajman

Ras Al Khaimah
Warranty & Support
One-year warranty from the date of dispatch

Remote troubleshooting support

On-site installation, commissioning, and training available upon request

Spare parts and maintenance packages available
Frequently Asked Questions
Q: What kind of coil should I use with this machine?

A: High-tensile galvanized steel coils (up to 550 MPa yield strength) in thicknesses ranging from 0.7 mm to 1.5 mm are recommended.
Q: Can the machine be adjusted for different wide rib deck profiles?

A: Yes. The machine can be custom-built for multiple profile widths and depths. Provide a drawing or sample to get an exact configuration.
Q: What type of power is needed in the UAE?

A: Machines are configured for 380V / 3-phase / 50Hz, which is standard for industrial use in the UAE.
Q: Can you help with shipping and installation in the UAE?

A: Absolutely. We offer delivery, installation, and operator training across the UAE.
Q: What is the production capacity per shift?

A: At a speed of 12–18 m/min, you can produce approximately 3,500–5,000 meters per 8-hour shift, depending on downtime and coil length.
For more details or a custom machine quote, email your specifications and profile drawings to [email protected].

Technical Specifications
