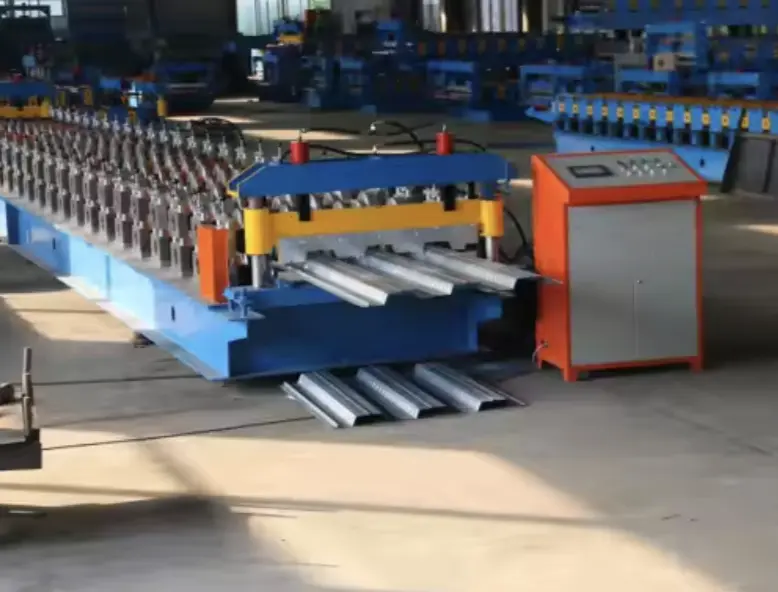

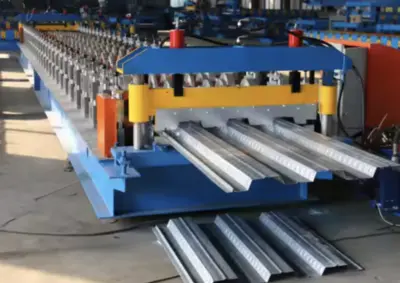

Metal Mezzanine Decking Roll Forming Machine – UAE

Metal Mezzanine Decking Roll Forming Machine – UAE Supply
Product Overview
The Metal Mezzanine Decking Roll Forming Machine is expertly designed to manufacture high-strength metal decking profiles used extensively in mezzanine floors, raised storage platforms, and intermediate levels within warehouses, factories, and large commercial buildings across the United Arab Emirates.
Built for the UAE's demanding construction and industrial markets, this machine offers precision, durability, and high output, making it an essential piece of equipment for steel fabricators, contractors, logistics companies, and industrial developers.
All machines are new, custom-built to your specific profile drawings and technical needs, and can be delivered anywhere in the UAE, including Abu Dhabi, Dubai, Sharjah, and other major cities, directly from our manufacturing partners.
Note: Pricing varies based on selected optional extras and customizations. Contact us for a tailored quote to match your project requirements.
Machine Technical Specifications
Feature
Specification

Machine Type
Metal Mezzanine Decking Roll Forming Machine

Production Speed
15–20 meters per minute

Material Thickness Range
0.8mm – 2.0mm

Material Width Range
Up to 1250mm

Material Types
Galvanized Steel, Cold Rolled Steel, High-Tensile Steel

Material Yield Strength
Up to 550 MPa

Roller Material
High-Grade 45# Steel with Hard Chrome Coating

Roller Surface Treatment
Hard Chrome Plated for Wear Resistance

Number of Forming Stations
18–24 Stations (depending on profile design)

Roller Shaft Diameter
75mm solid shafts

Shaft Material
40Cr precision-ground, quenched and tempered

Main Drive Type
Gearbox drive for high strength and reliability

Power
380V/50Hz/3-Phase (adjustable based on UAE standards)

Motor Power
22KW main motor (or customized)

Cutting Method
Hydraulic Cutting after Forming

Blade Material
Cr12Mov Steel, Heat Treated

Control Type
PLC Fully Automatic Control

Operating Mode
Touchscreen HMI and Manual Backup Controls

De-coiling System
Hydraulic De-coiler (5T–10T capacity)

Punching/Notching System
Optional Hydraulic Punching/Pre-Punching Unit

Machine Frame
Heavy-duty welded steel base frame

Thickness of Frame Steel
20mm welded frame

Profile Shape
Custom mezzanine deck profiles (open flat or ribbed)

Profile Width and Depth
As per customer drawings (typical depth 32mm–76mm)

Length Tolerance
±2mm

Safety Features
Full Protective Covers and Guards

Emergency Stop Button

Overload Protection System
Applications and Industries Served
This mezzanine decking machine is ideal for companies in:
Warehousing and Storage (mezzanine floors for racking systems)

Industrial Construction (intermediate floors in factories and production plants)

Retail and Commercial Projects (multi-level retail storage spaces)

Logistics and Distribution Centers

Structural Steel Contractors

Building Material Suppliers
The growing construction and logistics boom in the UAE, especially in hubs like Dubai and Abu Dhabi, makes this machine an excellent investment for companies targeting durable, cost-effective flooring systems.
Delivery & Service in UAE
We deliver new mezzanine deck roll forming machines to all major cities including Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, and Al Ain. Each machine is made to order to match your specific needs.
All machines include:
1-Year Warranty (from dispatch)

Durable Maintenance and Repair Support

Comprehensive Technical Support

Spare Parts and Wear Parts Availability
If you have a profile drawing, material specifications, or project details, send them to [email protected] for a fast and accurate quotation.
Frequently Asked Questions (FAQ)
Q1: Can you deliver the mezzanine decking roll forming machine to Dubai?

A: Yes, we deliver machines throughout the UAE, including Dubai, Abu Dhabi, Sharjah, and other emirates.
Q2: What material thickness can the machine handle?

A: The machine can process material thicknesses between 0.8mm and 2.0mm.
Q3: Can the machine be customized for different profile sizes?

A: Absolutely. Each machine is custom-built based on your provided drawings and project requirements.
Q4: How fast is the production speed?

A: The production speed typically ranges between 15 to 20 meters per minute depending on profile complexity.
Q5: Does the machine come with a de-coiler?

A: Yes, a hydraulic de-coiler with 5–10 tons capacity can be included as an option.
Q6: What type of cutting system does it use?

A: Hydraulic cutting after forming, with blades made of Cr12Mov steel.
Q7: What warranty and support are included?

A: All machines come with a one-year warranty, with durable maintenance and repair support available thereafter.
Q8: Can you assist with installation and training in the UAE?

A: Yes, installation and training support is available. Please contact us to discuss service arrangements.
Contact Us for a Tailored Quote
📩 Email your project requirements, profile drawings, and material details to: [email protected]

Let’s match you with the best mezzanine decking roll forming solution for your UAE project!
