Steel Roof and Floor Deck Roll Forming Machine Alaska

This Steel Roof and Floor Deck Roll Forming Machine is engineered to meet the demands of the harsh Alaskan climate and infrastructure needs. It is perfect for manufacturing high-quality steel roof and floor decking, which is crucial for residential, commercial, and industrial projects in Alaska. The machine is designed for durability, reliability, and precision, ensuring excellent performance even in extreme conditions.
Available Profiles
The machine can produce a range of profiles, catering to diverse construction needs:
1.5-inch B Deck
3-inch N Deck
Composite Metal Deck
Steel Form Deck
Custom profiles can also be manufactured to specific requirements.
Customization Options

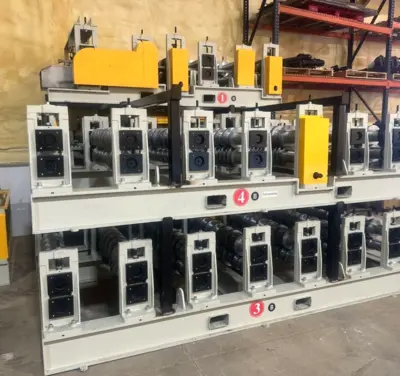

Fixed base and cassette machines are available for operational flexibility.
Automated stackers can be integrated to streamline production.
Roll Forming Machine
Forming Speed: 60+ ft/min

Material Thickness: 18 gauge to 22 gauge

Machine Weight: 20 tons

Machine Footprint: 85 ft in length

Main Power: 480V, 3-phase, 60Hz

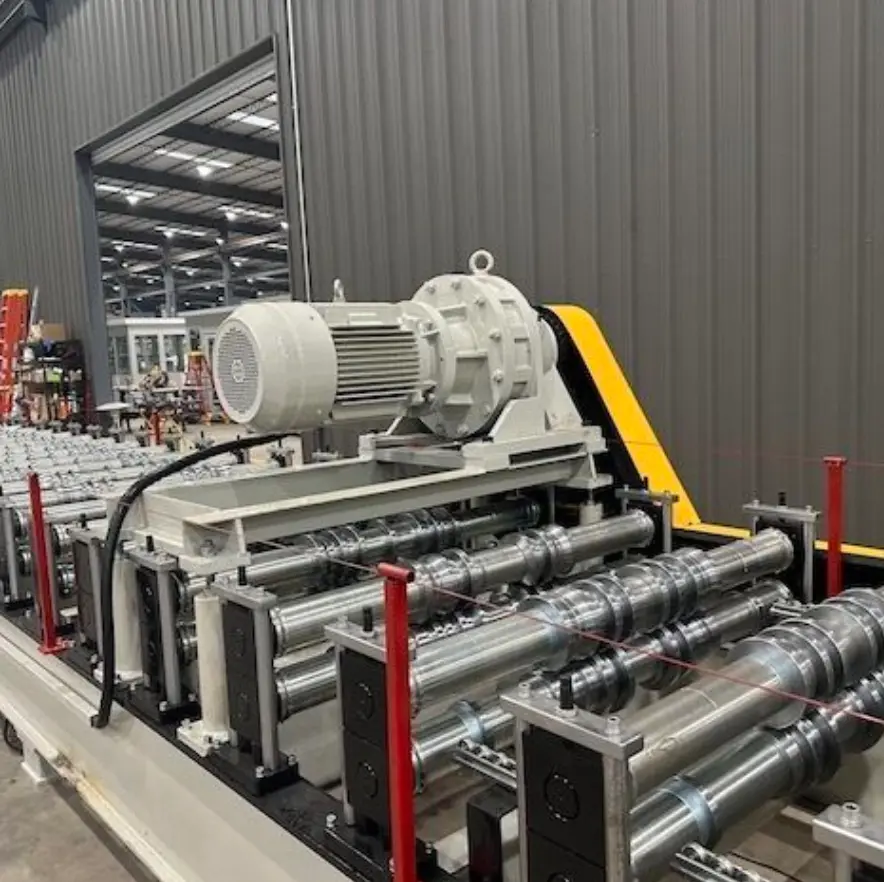

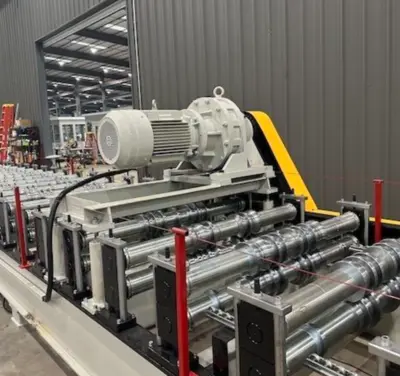

Motor: 32 HP

Drive System: Gearbox & Chain Drive

Stations: 28

Cutting Type: Pre-Flying Shear

Safety Features:
Optional safety covers
Emergency stops (E-stops)
Uncoiler with Hydraulic Car
Uncoiling Speed: 60 ft/min

Max Loading Capacity: 15,000 lbs

Coil Width: 48 inches

Weight: 3.5 tons

Footprint: 14 ft x 6 ft x 6 ft

Hydraulic Car Size: 35" x 28"

Controls:
Jog Controls
Proximity Sensor
Air Brake
Applications in Alaska
This machine is ideal for creating robust steel decking for projects across Alaska, ensuring compliance with local building codes and standards. Its ability to operate efficiently at high speeds and handle various materials makes it suitable for large-scale infrastructure projects, industrial facilities, and residential buildings in Alaska's challenging environment.
FAQs
1. Can the machine be customized to produce other profiles?
Yes, the machine can be tailored to produce custom profiles based on your project requirements.
2. What is the power supply requirement for the machine?
The machine requires 480V, 3-phase, 60Hz power, which is standard for industrial facilities in Alaska.
3. How durable is the machine in extreme weather conditions?
The machine is built with high-quality materials and a sturdy design, ensuring excellent performance and durability in Alaska's harsh weather.
4. Is the uncoiler included with the machine?
Yes, the machine comes with a 15,000 lb hydraulic uncoiler and car.
5. What is the forming speed of the machine?
The forming speed exceeds 60 ft/min, making it ideal for high-efficiency production.
6. Are safety features included with the machine?
Yes, the machine includes emergency stops and optional safety covers to ensure safe operation.
7. Can I integrate automated stackers?
Yes, automated stackers are available to enhance productivity and reduce manual handling.
This Steel Roof and Floor Deck Roll Forming Machine is a reliable and efficient solution tailored for Alaska's construction and manufacturing needs. It ensures precise and consistent production, making it a valuable investment for your projects. For further customization or additional information, feel free to inquire.
